Appendix | Accessories
thermoMETER CT
Appendix
A 1 Accessories
A 1.1 Mounting Accessories
The mounting bracket [TM-FB-CT] is adjustable in
one axis.
The mounting bold [TM-MB-CT] with M12x1 thread
is adjustable in one axis.

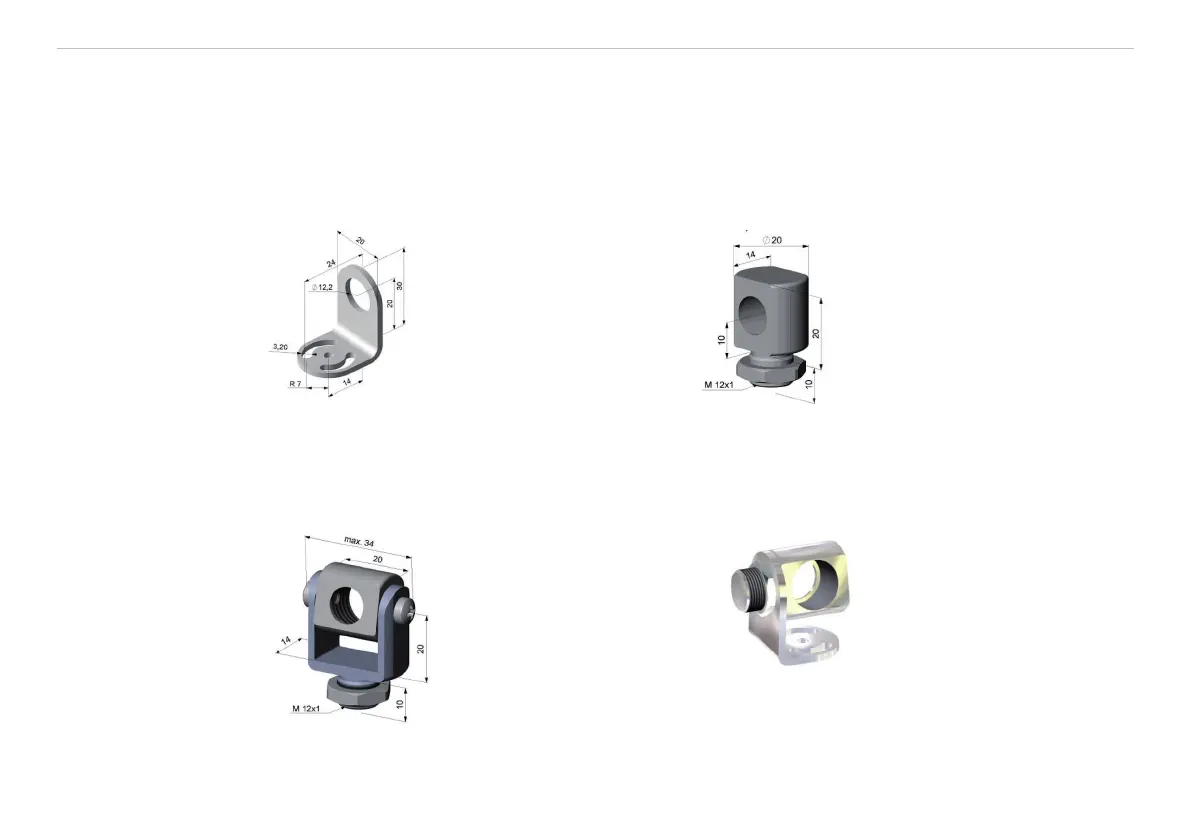

Fig. 31 Mounting bracket [TM-FB-CT] Fig. 32 Mounting bold [TM-MB-CT]
The mounting fork [TM-MG-CT], adjustable in two
axes, can be combined with the mounting bracket
[TM-FB-CT] using the M12x1 thread.
The mounting bracket, adjustable in two axes
[TM-AB-CT] consisting of TM-FB-CT and TM-MB-CT.
Fig. 33 Mounting fork [TM-MG-CT] Fig. 34 Mounting bracket [TM-AB-CT]
