Midmark M9 - Page 74

SECTION VI
M11/M11D PARTS LIST
© Midmark Corporation 2000 SF-1803 Printed in U.S.A.
Always Specify Model & Serial Number
21
1
2
3
4
5
6
11
10
12
14
8
15
8
13
9
7
17
18
16
19
20
7
22
23
10
7
25
24
26
27
28
6-15
Rev 10/03

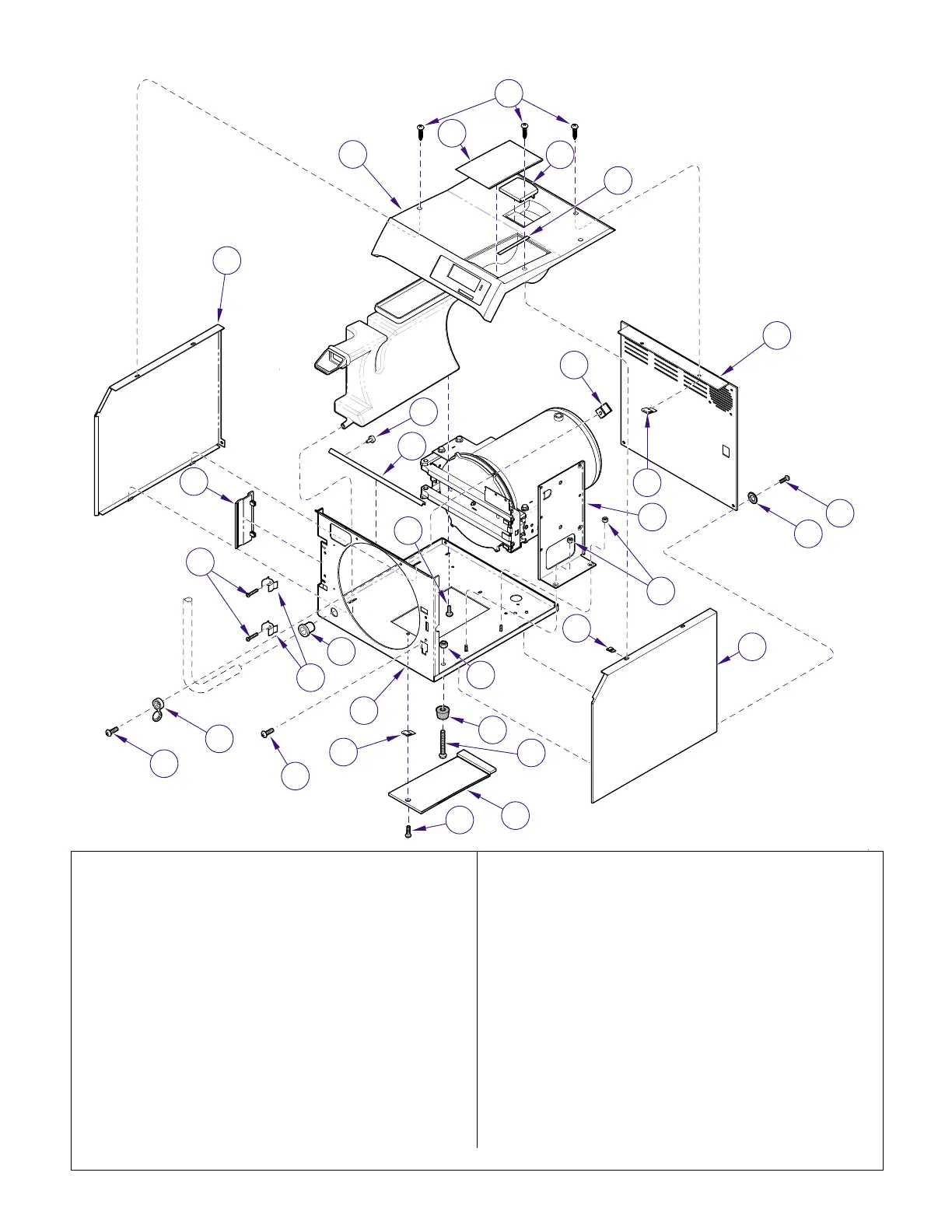

Main Enclosures
MA593400i
Item Part No. Description Qty Item Part No. Description Qty
1 053-1254-00 Top Cover (Midmark)............................ 1
053-1254-01 Top Cover (Ritter) ..................................1
2 053-0933-00 Cover Plate - Printer ............................ 1
3 040-0010-88 Screw ................................................... 6
4 053-1252-00 Pressure Relief Handle..........................1
5 042-0204-01 Adhesive Strips...................................... 3
6 050-5244-10 Back Panel.............................................1
7 H352623 Tinnerman Nut ......................................9
8 040-0010-125 Screw ................................................... 3
9 PC Bracket (Refer to “Control PC Board”
Elsewhere).............................................1
10 041-0010-04 Nut ......................................................10
11 050-5228-10 Side Panel .............................................1
12 016-0523-03 Leveling Foot .........................................4
13 040-0010-137 Leveling Screw ......................................4
14 050-4326-00 Base Inspection Cover...........................1
15 029-3125-00 Base Panel (M11) ................................. 1
029-3125-01 Base Panel (M11D)................................1
16 053-0068-11 Strain Relief Bushing..............................1
17 053-0388-01 Hose Clip................................................2
18 053-0723-00 Screw Cover...........................................4
19 040-0010-124 Screw .....................................................2
20 042-0010-21 Pop Rivet................................................2
21 053-1277-00 Hinge Cover ...........................................1
22 050-5227-10 Side Panel..............................................1
23 050-4750-00 Flange Clamp.........................................4
24 045-0001-31 Lock Washer ..........................................1
25 053-1370-02 Steam Block...........................................1
26 040-0010-74 Screw .....................................................4
27 042-0182-00 Snap Clip................................................4
28 040-0010-95 Screw .....................................................4
