SECTION VI
M11/M11D PARTS LIST
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1803 Printed in U.S.A.
B
5
6
7
20
10
25
18
28
29
32
33
24
26
2
16
27
23
14
15
31
12
13
B
A
8
23
17
19
30
35
36
37
38
39
40
39
41
34
9
1
11
A
3
22
21
42
4
6-16
Rev 8/03

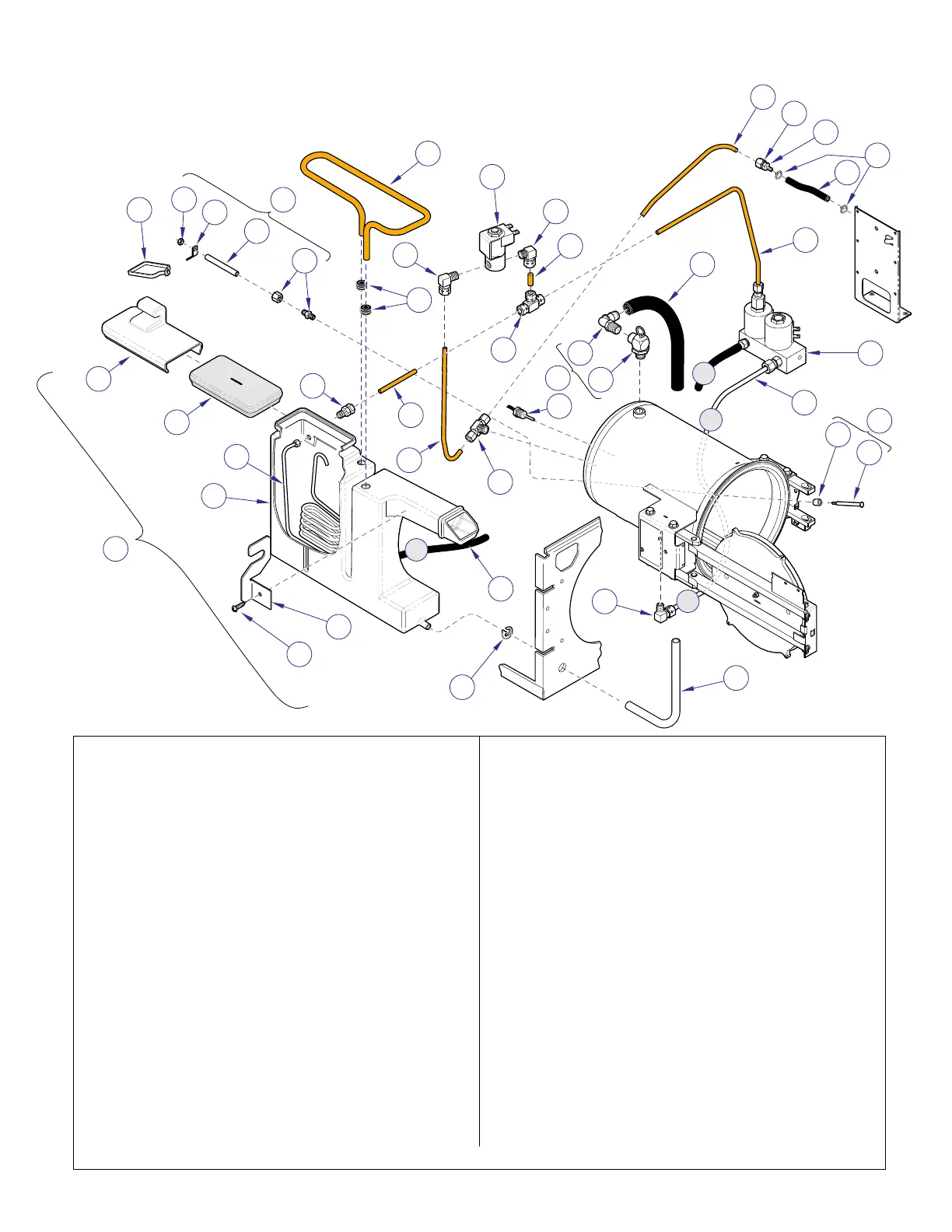

Plumbing and Sensor
Components
MA594103
Item Part No. Description Qty Item Part No. Description Qty
1 014-0429-00 PCB Pressure Sensor Tube................... 1
2 014-0192-00 Compression Nut.................................. 1
3 014-0217-00 Compression Connector ........................1
4 015-0013-05 Cable Tie (High Temp) .......................... 2
5 053-0404-05 Tube PCB Connector............................ 1
6 014-0415-00 Tube.......................................................1
7 Manifold (Refer to “Manifold Compo
nents”) ................................................6-6
8 014-0413-00 Tube.......................................................1
9 053-1033-05 Tube.......................................................1
10 014-0184-01 Male 90° Elbow...................................... 1
11 029-2754-00 Reservoir Tank Assembly(Includes Items
13 thru 21
12 • 053-1303-00 • Reservoir Tank Seal ............................ 1
13 • 053-1258-02 • Reservoir Lid ....................................... 1
14 • 053-1258-01 • Reservoir Tank ....................................1
15 • 014-0421-00 • Condensing Coil Tube.........................1
16 • 014-0216-00 • Bulkhead Fitting .................................. 1
17 • 053-0394-03 • Grommet .............................................2
18 • 014-0426-00 • Equalization Tube................................1
19 • 053-0391-07 • Sight/Drain Tube .................................1
20 • 016-0748-01 • Hose Clamp ........................................1
21 • 050-5684-00 • Equalization Coil Bracket .................... 1
22 • 040-0010-75 • Screw.................................................. 1
23 002-0358-00 Level Sensor Tube Kit
24 • 053-0390-01 • Tube.................................................... 1
25 • 041-0006-02 • Nut ...................................................... 1
26 • 015-0595-00 • Terminal .............................................. 1
27 • 014-0183-01 • Compression Nut ............................... 1
28 • 053-0407-00 • Spacer ................................................ 1
29 • 030-0858-00 • Level Sensor Assembly ...................... 1
30 015-1680-00 Temperature Probe Assembly ............... 1
31 002-0359-01 Pressure Relief Valve Kit(Includes Items
33 thru 34)
32 • 014-0195-03 • Pressure Relief Valve ......................... 1
33 • 014-0258-00 • Male Elbow ......................................... 1
34 053-0613-02 Neoprene Tubing1
35 014-0423-00 Union Tee .............................................. 1
36 014-0202-03 Male Branch Tee ................................... 1
37 014-0414-00 Tube ...................................................... 1
38 014-0411-00 Tube ...................................................... 1
39 014-0184-00 Elbow..................................................... 2
40 014-0419-00 Solenoid (115 volt)................................. 1
014-0419-01 Solenoid (230 volt) ................................ 1
41 014-0424-00 Tube ...................................................... 1
42 015-0013-03 Wire Tie ................................................. 1
