SECTION VI
M11/M11D PARTS LIST
© Midmark Corporation 2000 SF-1803 Printed in U.S.A.
Always Specify Model & Serial Number
1
3
6
9
24
25
27
28
30
34
35
36
37
38
39
40
7
3
41
4
29
31
32
33
42
43
5
8
10
15
18
19
20
21
22
16
23
44
11
14
17
13
12
26
45
2
6-17
Rev. 6/03

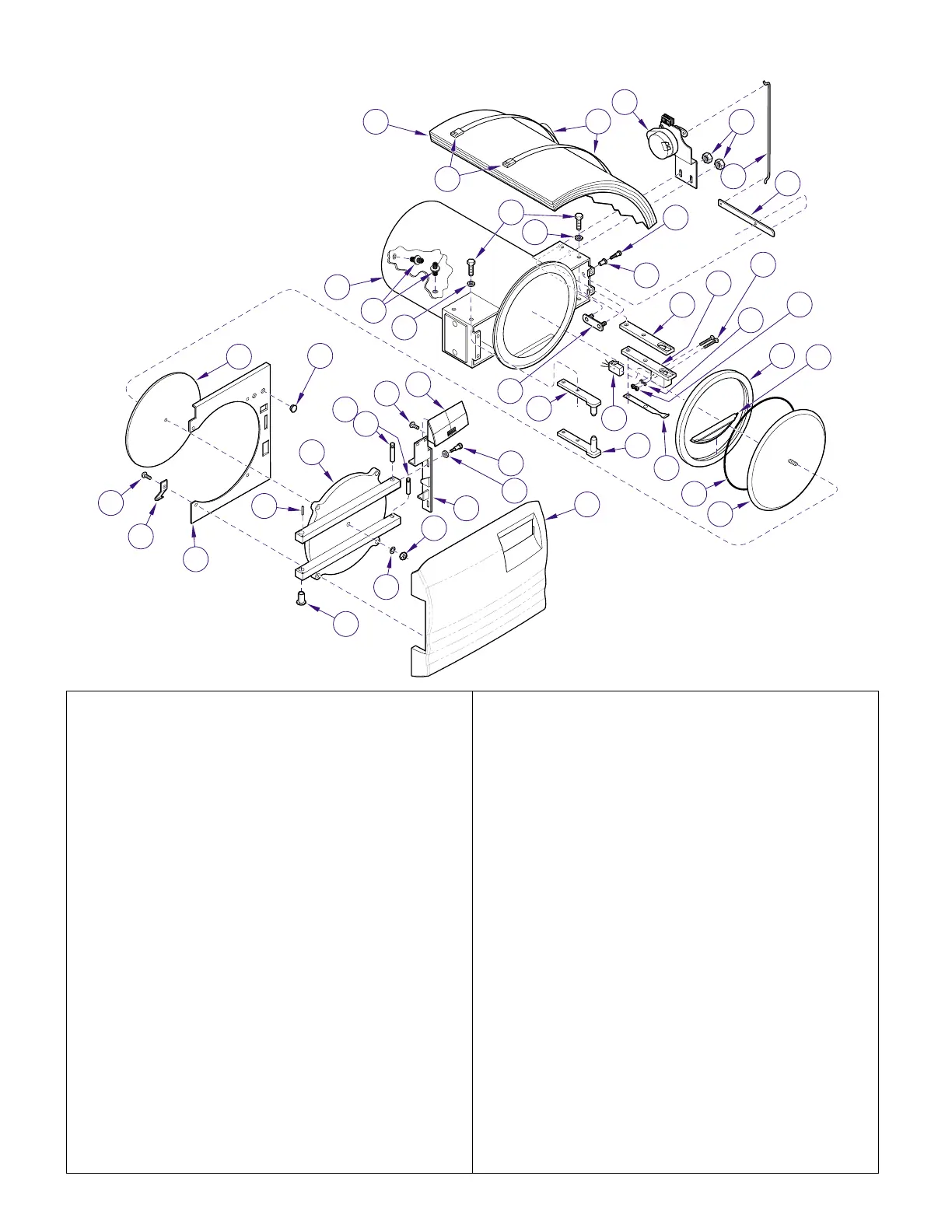

Pressure Vessel
Components
MA594203i
Item Part No. Description Qty Item Part No. Description Qty
1 Chamber .............................................. 1
2 002-0360-00 Filter ..................................................... 2
3 Washer .................................................8
4 Screw ....................................................8
5 H99387 Aluminum Seal ..................................... 2
6 H99388-44 Insulation Strap .................................... 2
7 053-1262-00 Insulation Wrapper ............................... 1
Items #8 thru #13 refer to M11 units only.
8 045-0000-04 Brass Washer ........................................2
9 042-0106-01 Shoulder Screw (Apply Valve Lubricant
#064-0002-00]) .................................... 2
10 Door Opening Motor Assembly(Refer to
“Electrical Components Elsewhere”)..6-7
11 041-0010-04 Nuts .......................................................2
12 057-0755-00 Motor Connecting Rod...........................1
13 050-5685-00 Latch Lever............................................1
14 Right Bracket .........................................1
15 Switch Weldment...................................1
16 040-0002-08 Screw.....................................................2
17 045-0001-80 Washer ..................................................2
18 041-0002-01 Nut .........................................................2
19 050-5245-00 Switch Spring.........................................1
20 053-0527-00 Door Gasket (Incl. in 002-0504-00 Kit) . 1
21 053-0904-00 Dam Gasket (Incl. in 002-0504-00 Kit) .1
22 030-0879-00 Housing ................................................ 1
23 Door Switch (Refer to “Electrical Compon
ents” Page 6-7, Elsewhere)................... 1
24 Top Bracket ......................................... 1
25 Bottom Bracket .................................... 1
26 029-3055-00 Stud Plate.............................................. 1
27 053-1255-00 M11 Door Panel ................................... 1
053-1255-01 M11D Door Panel.................................. 1
28 042-0106-00 Shoulder Screw ................................... 2
29 045-0000-04 Washer ................................................ 2
30 050-5243-01 Latch Bracket ....................................... 1
31 041-0000-00 Nut ....................................................... 1
32 045-0000-00 Lockwasher ......................................... 1
33 Flange Bearing .................................... 2
34 042-0104-00 Roll Pin ................................................ 1
35 050-5229-00 Inside Door Cover ............................... 1
36 050-2347-00 Door Spring ......................................... 1
37 040-0008-50 Screw .................................................. 4
38 016-0395-02 Door Insulation Pad ............................. 1
39 053-0050-00 Plug....................................................... 2
40 Door .................................................... 1
41 Door Bolt 5669 ..................................... 2
42 064-0014-00 Grease ............................................. AR
43 040-0010-75 Screw .................................................. 2
44 053-1253-00 Door Handle ........................................ 1
45 057-0790-00 Door Gasket Ring.................................. 1
