SECTION VI
M11/M11D PARTS LIST
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1803 Printed in U.S.A.
6
7
2
1
4
12
14
15
16
19
20
28
18
9
11
13
10
29
27
23
22
26
28
28
21
25
24
5
8
30
8
17
8
30
3
6-19.1
Rev. 8/03

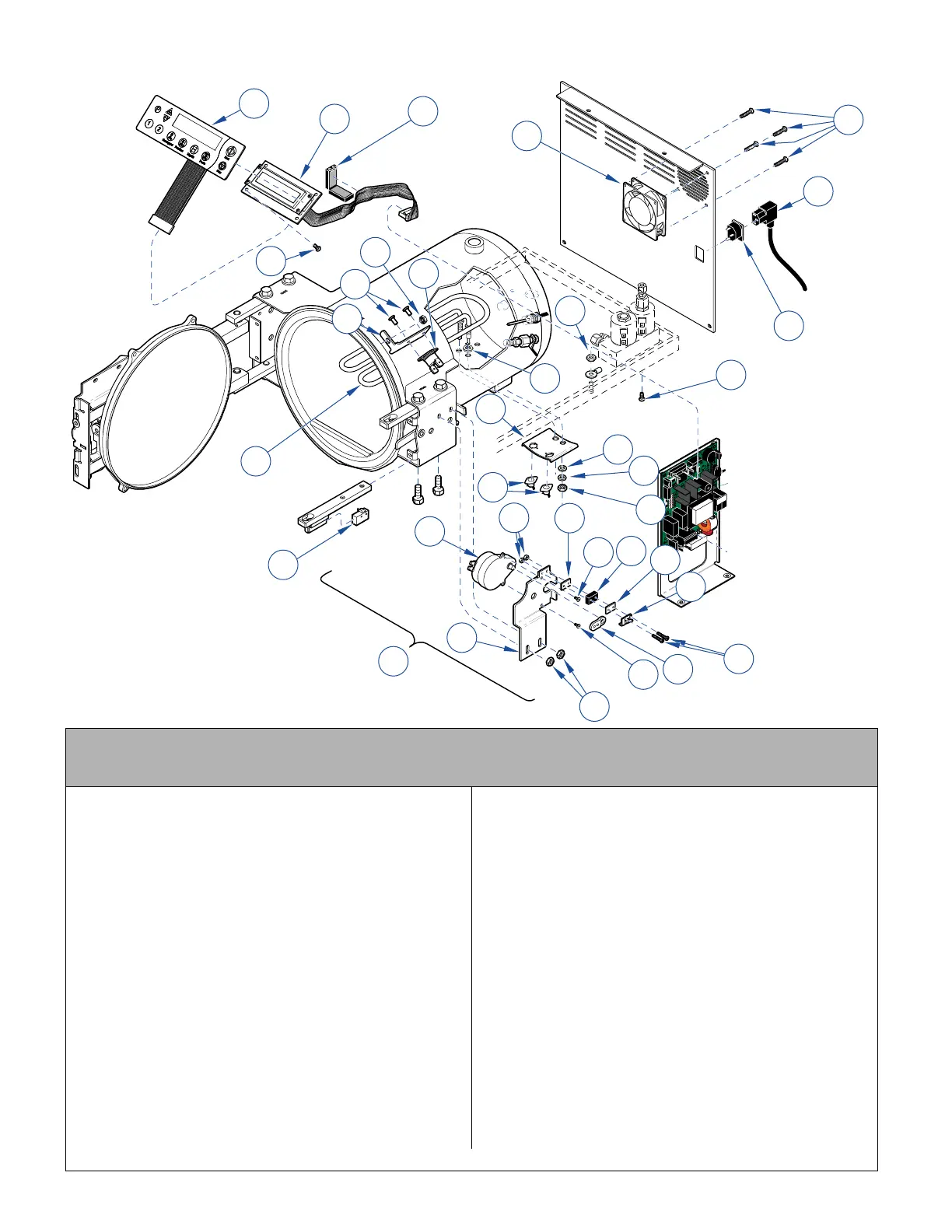

Electrical Components
MA594403i
Used on units with Serial Numbers RS001300, RT001027,
RV001180, RY001000 and RZ001000 thru Present
Item Part No. Description Qty Item Part No. Description Qty
1 015-1551-00 Membrane Switch ................................. 1
2 015-1550-00 Display Assembly...................................1
3 015-1641-00 Suppression Coil....................................1
4 015-1368-00 Fan-{115 Volt} ....................................... 1
015-1368-01 Fan-{230 Volt} ....................................... 1
5 040-0010-125 Screw .................................................... 6
6 015-0640-00 Power Cord(115 Volt).............................1
015-0363-07 Power Cord (230 Volt)............................1
7 015-0639-00 AC Connector Receptacle .................... 1
8 041-0010-04 Nut .........................................................8
9 H98137 Insulator .................................................2
10 040-0010-75 Screw .....................................................1
11 050-5206-00 Plate.......................................................1
12 H97971 Washer...................................................2
13 045-0001-56 Lock washer...........................................2
14 015-0976-00 Nut .........................................................2
15 015-1637-00 Thermostat.............................................2
16 040-0006-04 Screw .....................................................4
17 015-1430-00 Fan Control Thermostat .........................1
18 050-5459-00 Thermostat Bracket................................1
19 015-0976-00 Heating Element (115 Volt).................... 1
015-0976-01 Heating Element (230 Volt).................... 1
20 015-1556-00 Door Switch ........................................... 1
Items #23 thru #30 refer to M11 units only.
21 029-3038-00 Door Motor Assembly (115 Volt)............ 1
029-3038-01 Door Motor Assembly (230 Volt)............ 1
22 • 041-0002-01 • Nut ...................................................... 2
23 • 053-1348-00 • Insulating Membrane .......................... 2
24 • 015-1672-00 • Switch ................................................. 1
25 • • • • Insulating Membrane........................ 1
26 • 015-1671-00 • Switch Actuator (Included Items 21,
24, and 26).......................................... 1
27 • 040-0010-75 • Screw .................................................. 2
28 • 042-0010-21 • Pop Rivot ............................................ 4
29 • 050-5668-00 • Door Latch Motor Bracket ................... 1
30 • 015-1763-00 • Door Motor Assembly (115 Volt) ......... 1
• 015-1763-01 • Door Motor Assembly (230 Volt) ......... 1
