6) Adjust the alignment of the position 1 with the vertical cylinder so that the boat lift plate is
perfectly centered with the slot 1 of the autosampler plate when it lifts.
NOTE: with the boat lift up it is not possible to move the pate left or right.
7) Press “Cali.” Button again for saving of position 1.
Now also other three reference positions (Pos.11, Pos.21, Pos.31) have to be calibrated.

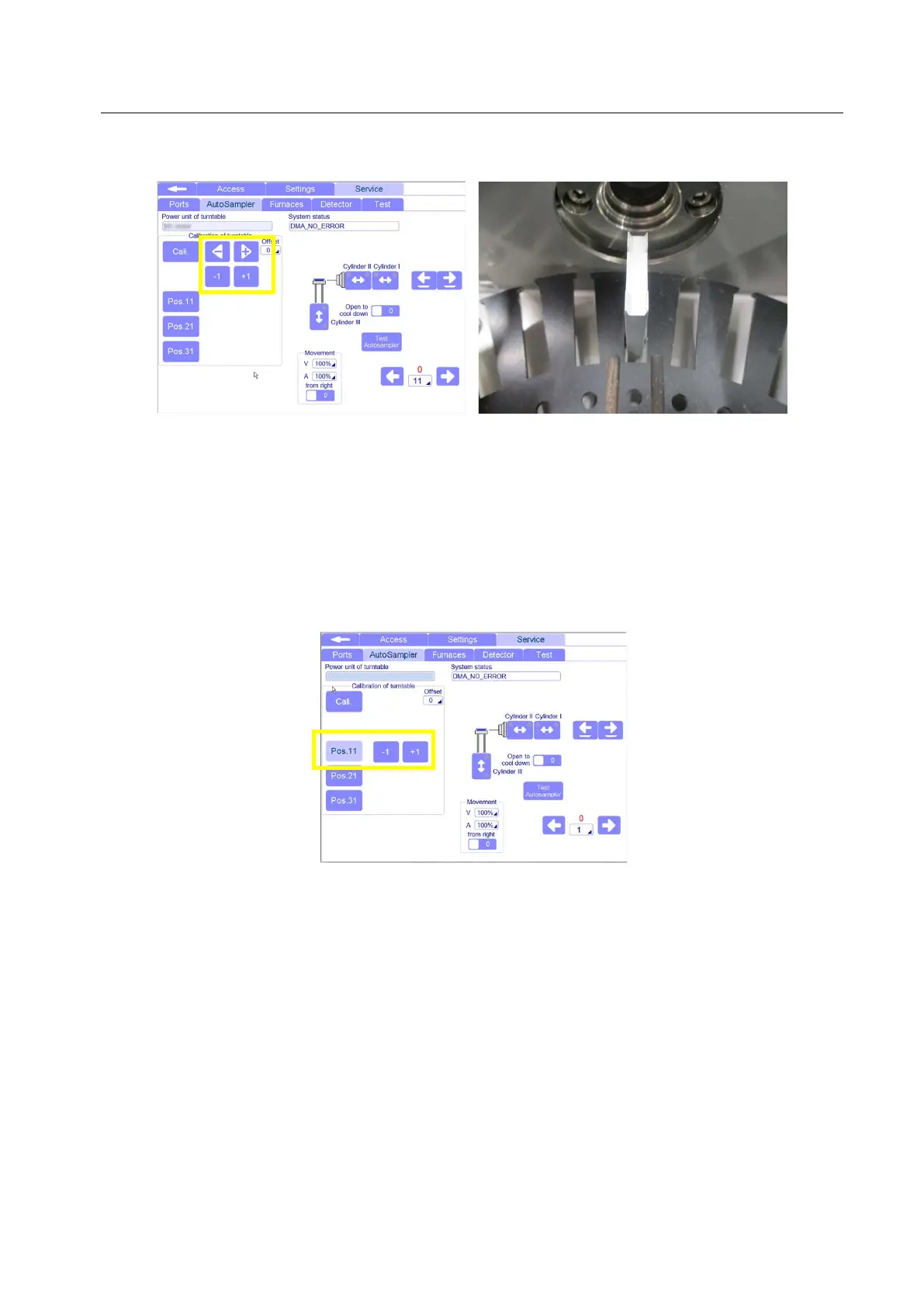

8) Press “Pos.11” icon: the autosampler plate should rotate in order to place the position 11 directly
in front of the catalyst flange.
9) Press the “+” or “-“ (for a faster movement) and “+1”, “-1” (for a slower movement) on the
software for moving the plate clockwise or under clock wise and adjust the alignment of the
position 11 with the vertical cylinder so that the boat lift plate is perfectly centered with the slot 11
of the autosampler plate when it lifts.
10) Then, press the next reference positions “21” and “31” and repeat the above actions. Everytime
you move from one reference position to the other the current position will be saved.
