Milestone Srl MA213-003 – DMA-80 EVO – User Manual
37

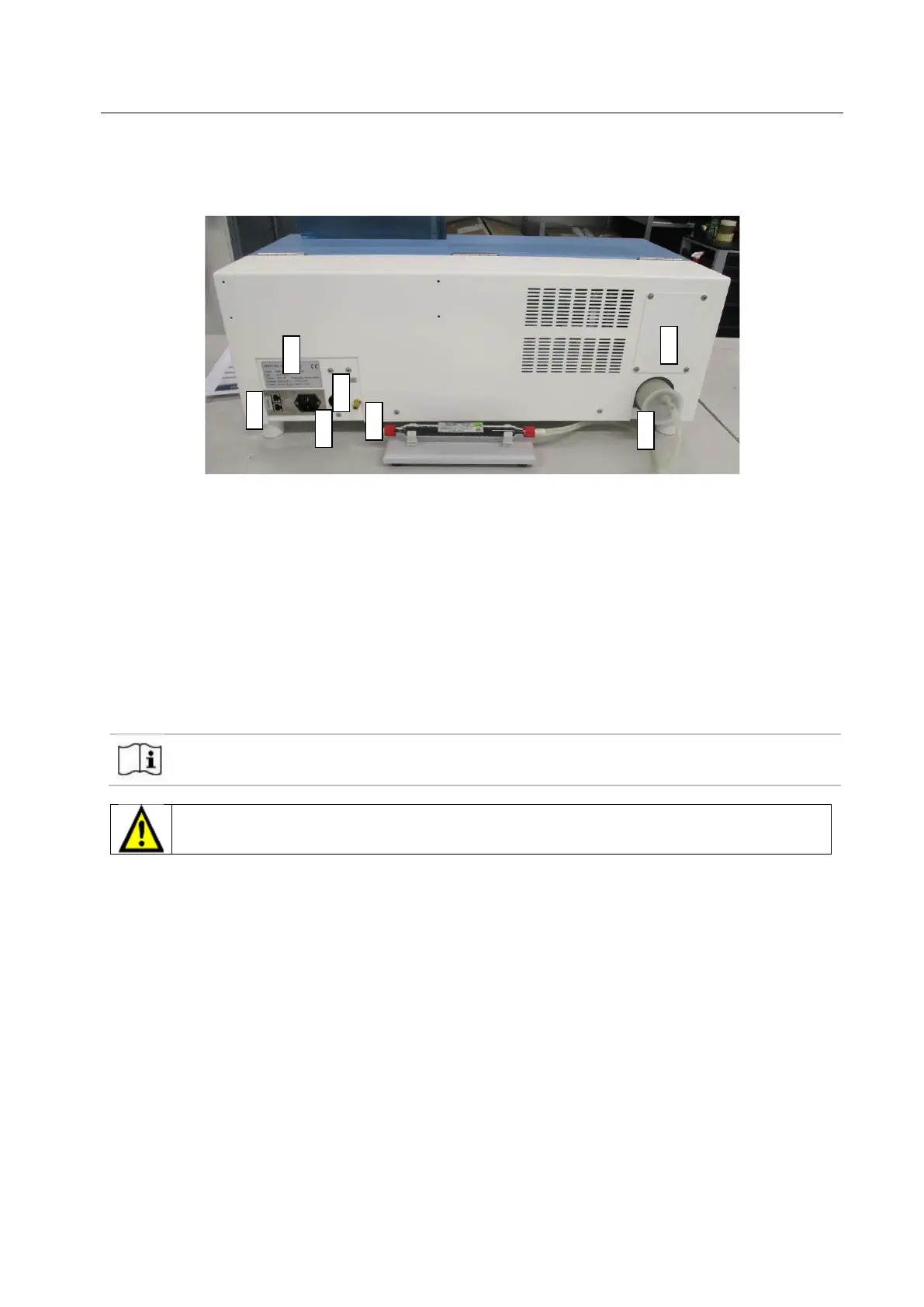

3.3 DMA-80 EVO back view
An overview of the back side of the DMA-80 EVO is shown in the picture
Legend:
g. RJ45 port for controller connection
h. Power entry module
i. Instrument identification label
j. Exhaust outlet for Hg trap connection
k. Window for detector regulation
l. Gas carrier connection
m. Flow regulation valve
3.4 DMA-80 EVO internal view
Opening the housing of the DMA-80 EVO the overview of the internal of the DMA-80 EVO is shown in the
picture.
If you open the housing when the machine is on, the power supply is cut off thanks to a
protection switch that opens the circuit
Attention: do not bypass the switch with the housing open. This causes presence of voltage in
the system
i
j
h
g
k
m
l
