2.3.1 Voltage setting
An incorrect voltage setting of the unit can cause damages on the electrical components.
Always measure the inlet voltage on the power socket before to proceed with the voltage
setting.
The factory voltage setting on the DMA-80 EVO units is 220-240 VAC
The DMA-80 unit can operate with a voltage of 220-240 VAC or 110-120 VAC and indifferently with 50Hz
or 60Hz. The change of voltage needs some modifications.
From DMA-80 EVO SN 20032968, the voltage setting of the device also needs wiring the primary
connections of the transformer.
2.3.1.1 Fuses replacement
- The below procedure has to be made for DMA-80 EVO units before SN 20032968
The voltage selector is included in the fuse holder

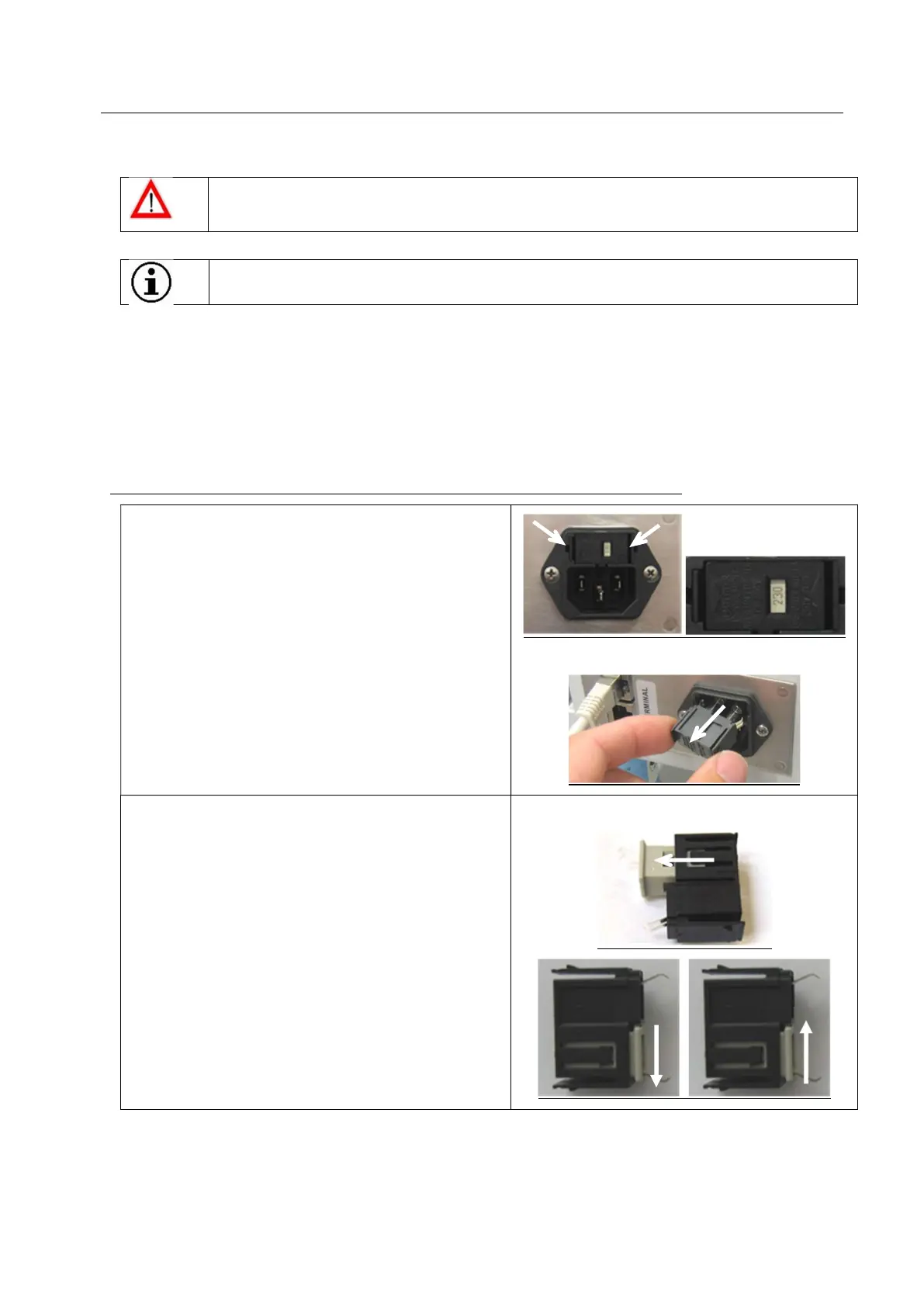

Press the two tabs on the sides of the fuse holder of
the plug and take it out
Replace the two fuses from the holder with the ones
suitable for the inlet voltage:
- for 220-240 VAC: 2 x T6,3A
- for 110-120 VAC: 2 x T10A
The spare fuses are in a bag in the blue accessories
case of the unit.
Select the proper voltage by turning the holding part
of one fuse.
