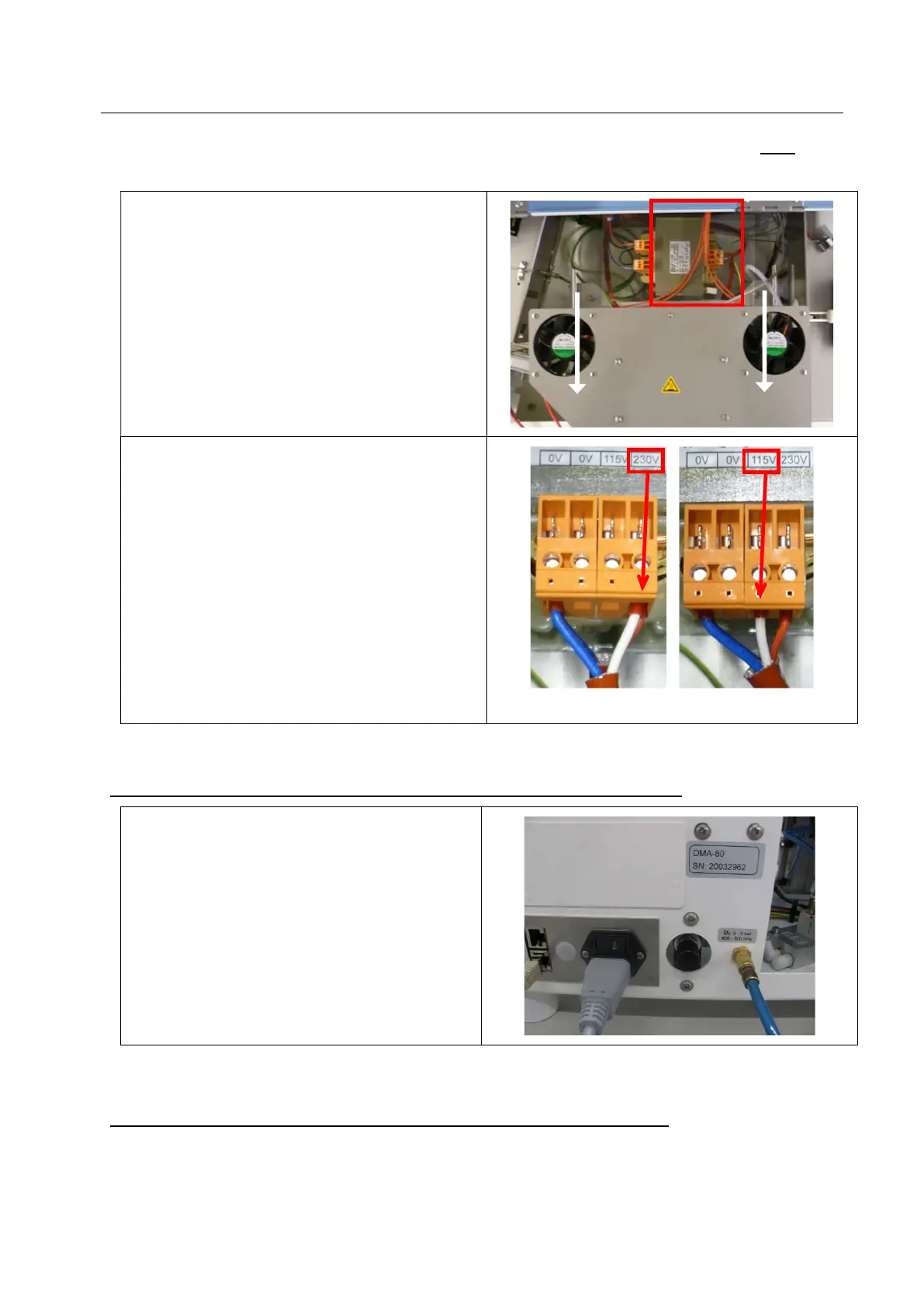

2.3.1.2 Change of connections on the voltage transformer (only for DMA-80 EVO units from SN
20032968)
Open the lid of the unit in order to access to the
transformer.
In case of DMA-80 EVO unit you can remove
completely the chassis for a better handling.
If necessary, pull the catalyst oven forward.
Change the wiring of the primary connection of the
transformer.
- for 220-240 VAC: connect the white wire to the
230V terminal
- for 110-120 VAC: connect the white wire to the
115V terminal
Push the oven back and cover the unit
Connect the power cord to the unit, turn on the
machine and check the function.
220-240 VAC 110-120 VAC
2.3.1.3 Indication of set voltage
- The below procedure has to be made for DMA-80 EVO units before SN 20032968
Mark the set voltage somewhere close to the
power socket or on the main label of the
instrument.
- The below procedure has to be made for DMA-80 EVO units from SN 20032968
