Milestone Srl MA213-003 – DMA-80 EVO – User Manual
90

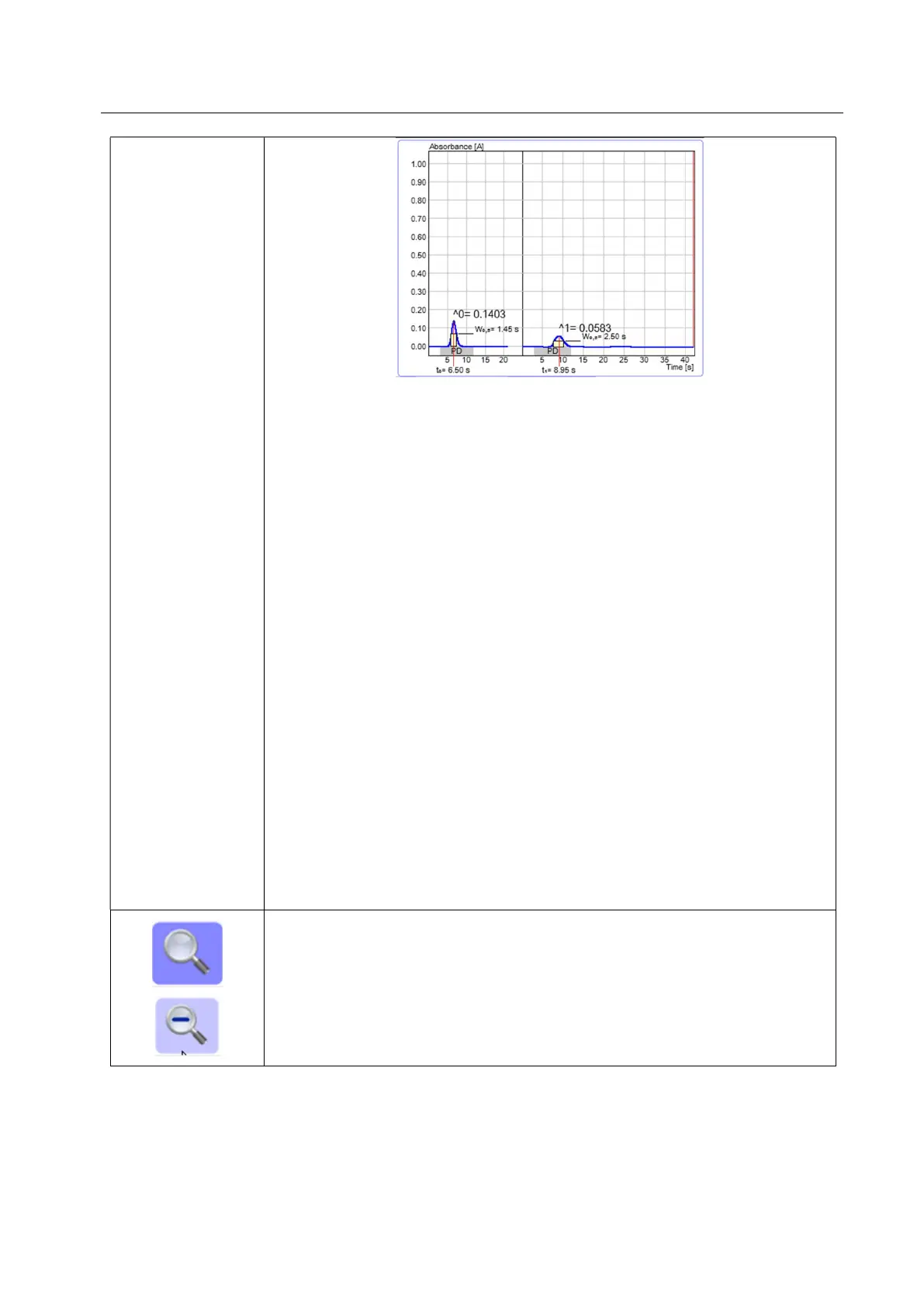

Signal Height (absorbance): The height of the peaks will be displayed at the
top of the peaks. The height of the peak within the limit of absorbance of the first
cell will be shown in the Measure page under column “Height”.
Signal Peak Width at Half-Height: The width at half maximum is independent
on the Hg-value, gas flow and installation of the amalgamator.
Peak Location: The time when the maximum signal has been detected is
displayed under the peak. The time measurement starts with the beginning of
annealing or the recording.
ZOOM-IN AND ZOOM-OUT
Touch the magnification icon to zoom-in on the height of the peak used for
evaluation.
Additional possibility: by dragging from the top left to bottom right of the desired
section, this section will be zoomed. Stay briefly on the end position.It can also
be zoomed more than once.
By the magnifying glass, the graph is maximum displayed.
Peek zooming (only available in sub-section “Signal”): with the temperature and
signal profile icon deselected it is possible to zoom the peak.
By dragging from the top left to bottom right of the desired section, this section
will be zoomed. Stay briefly on the end position, it can also be zoomed more
than once.
