Milestone Srl MA213-003 – DMA-80 EVO – User Manual
89
If you want to recall a different calibration file or method which is not included in
this list, the file must be first opened in the Calibration page and Method page,
so that it can be stored in the quick memory.
If a new line is added, the calibration file and method are taken from the original
selected lines.

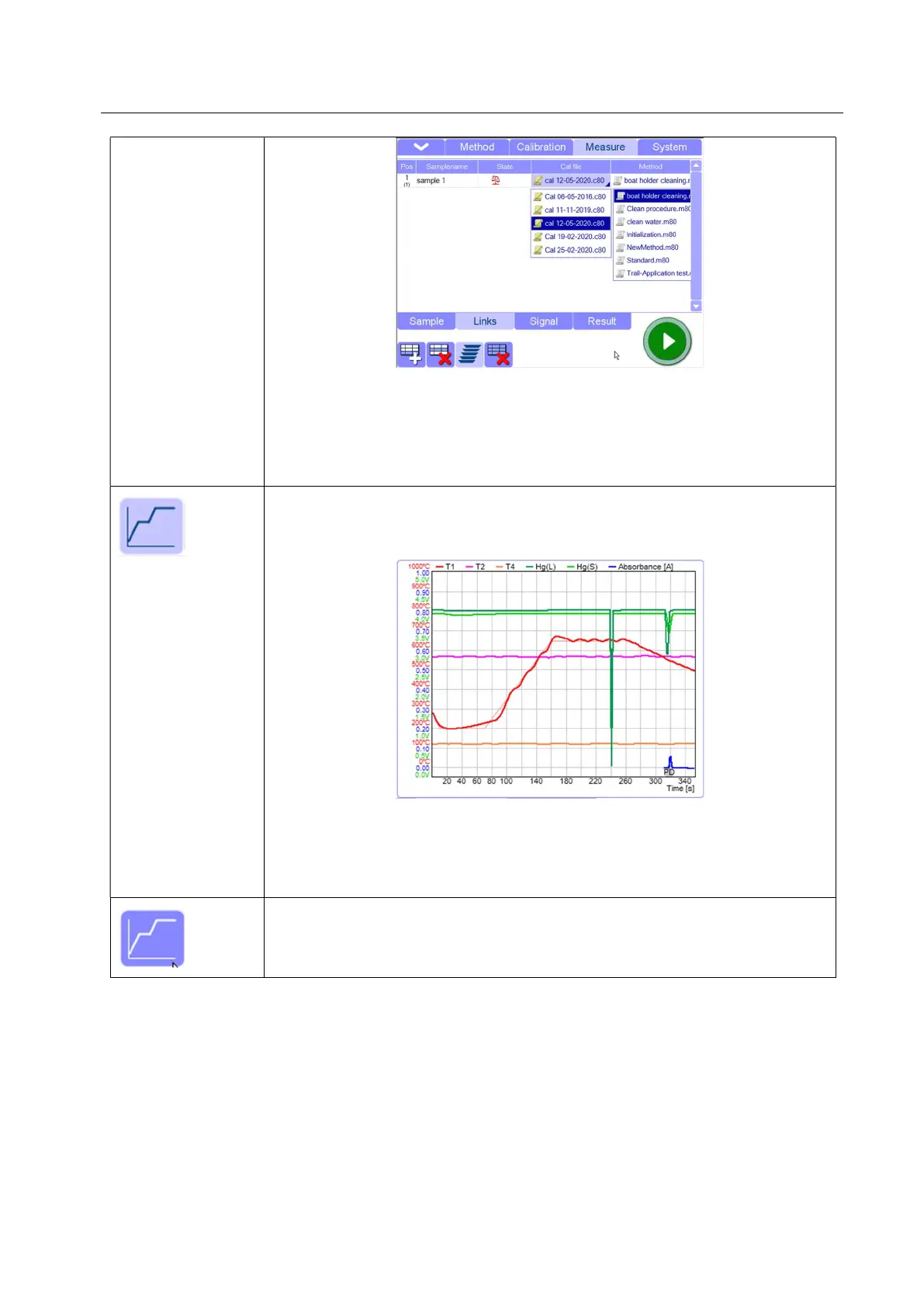

Temperature and signal profile (only available in sub-section “Signal”): Selecting
this icon it is possible to evaluate the trend of all temperature and signal of the
measurement. It is also possible on live, during the running of a sample.
— T1: Ashing oven temperature
— T2: Catalyst temperature
— T3: Cuvette temperature
— Hg: Detector signal(s)
Absorbance signal
Temperature and signal profile (only available in sub-section “Signal”):
Deselecting this icon it is possible to evaluate the absorbance signal.
