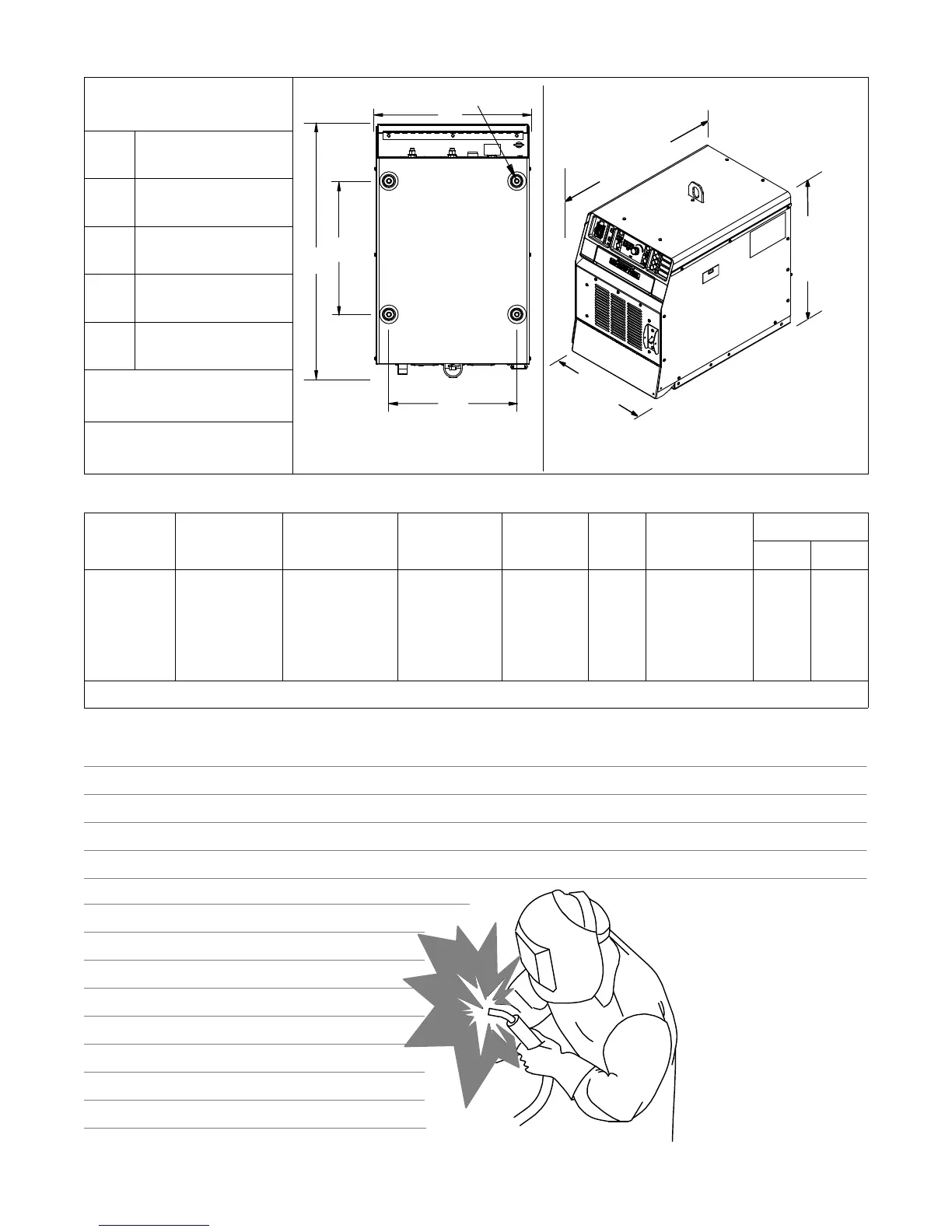

Miller PipeWorx 400 User Manual

OM-253 906 Page 16
B. Dimensions And Weight
Hole Layout Dimensions
A
B
C
D
E
805 142-A
806 mm
(31-3/4 in.)
495 mm
(19-1/2 in.)
724 mm
(28-1/2 in.)
A 495 mm (19-1/2 in.)
B 424 mm (16-7/8 in.)
C 806 mm (31-3/4 in.)
D 406.4 mm (16 in.)
E 5/16-18 in. UNC thread
Weight
102 kg (225 lb)
C. Wire Feeder Specifications
Input Power
Welding Power
Source Type
Wire Feed Speed
Range
Wire Diameter
Range
Welding
Circuit
Rating
IP
Rating*
Overall
Dimensions
Weight
Single Dual
24 Volts AC
11 Amperes
PipeWorx 400 1.3 To 19.8 mpm
(50 To 780 ipm)
0.9 To 1.6 mm
(.035 To .062 in.)
Max Spool
Weight: 27 kg
(60 lb)
100 Volts,
750
Amperes,
100% Duty
Cycle
IP 21 Length: 737 mm
(29 in.)
Width: 483 mm
(19 in.)
Height: 356 mm
(14 in.)
30 kg
(65 lb)
41 kg
(90 lb)
*This equipment is designed for indoor use and is not intended to be used or stored outside.
Notes
Work like a Pro!
Pros weld and cut
safely. Read the
safety rules at
the beginning
of this manual.

Miller PipeWorx 400 Specifications

General

Amperage Range	5 - 400 A
Duty Cycle	60% at 400 A
Processes	MIG, Flux-Cored, Stick, DC TIG, Pulsed MIG
Output Voltage Range	10 - 44 V
Wire Feed Speed	50 - 780 IPM
