Miller Syncrowave 200 - Page 52

OM-225 389 Page 48
804 399-A
. Hardware is common and
not available unless listed.
1
2
3
4

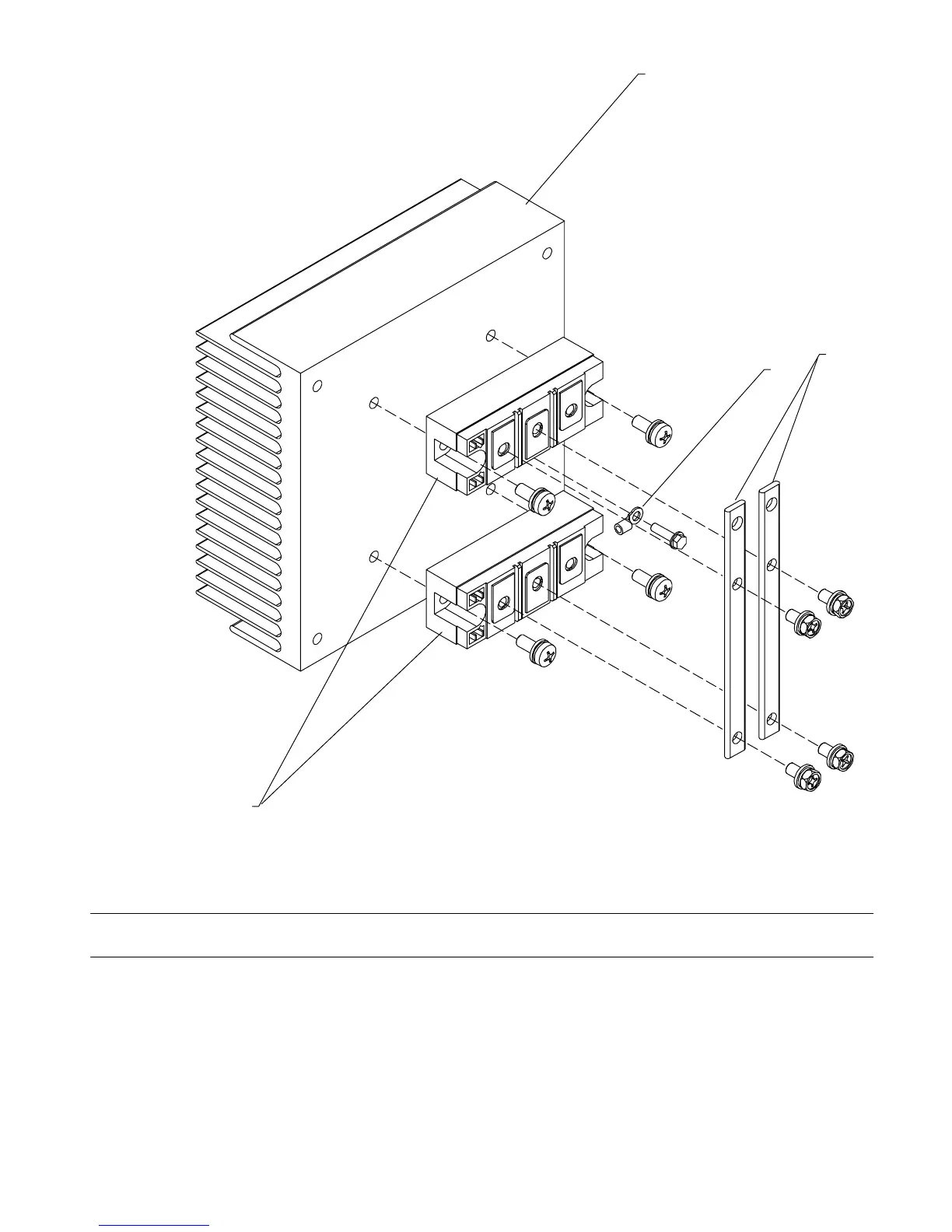

Figure 10-3. Rectifier Assembly
Description
Part
No.
Dia.
Mkgs.
224 496
Item
No.
Figure 10-3. Rectifier Assembly (Figure 10-1 Item 40)
Quantity
1 206 984 HEAT SINK,RECTIFIER 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 206 327 THERMISTOR,NTC 30K OHM @ 25 DEG C 27IN LEAD 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 224 488 BUS BAR,RECTIFIER 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 208 384 THYRISTOR,SCR MODULE 136A 400V DUAL 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
