Pellerin Milnor Corporation 113

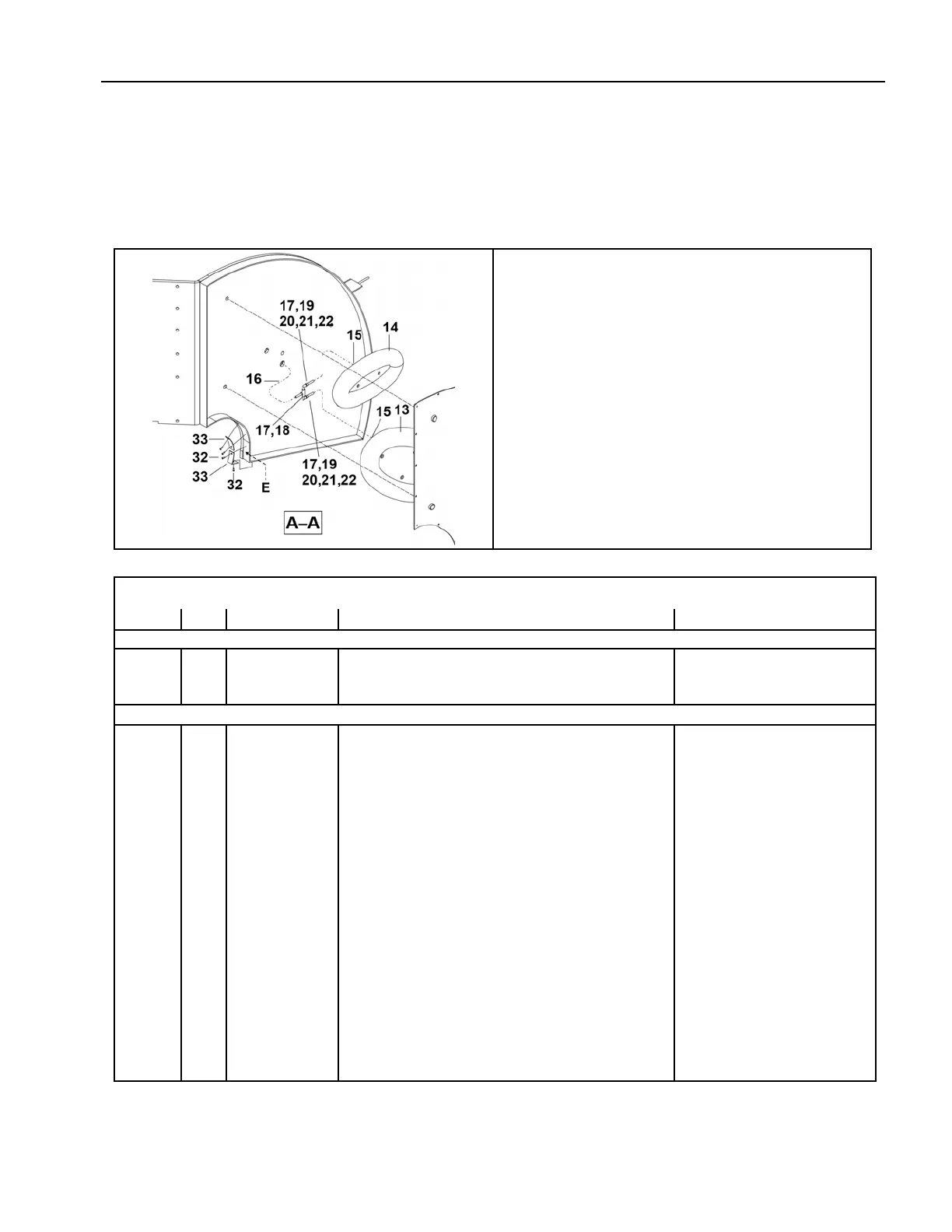

Figure 54. Detail View
Legend
A-A.Detail view A–A
E...Tabs: Fold gasket tabs over the edge of the door and
anchor with holding strips (item 33) and screws on
the final assembly.
Table 34. Parts List—Shell Doors
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A SA 36 019 *SHELL DOOR ASY 72WE3+SG SOIL 7244WR3
7244SR2 SOIL SIDE
B SA 36 020 *SHELL DOOR ASY 72SG CLEAN 7244SR2 CLEAN SIDE
Components
A 1 W3 06126 * SHELLDOOR 72SG2+3 SOILSIDE
B 1 W3 06127 * SHELLDOOR 72SG2+3 CLEANSID
A 2 W3 06304B WLDMT=PRESSPLT DR 72SG SOIL
B 2 W3 06303B WLDMT=PRESSPLT DR 72SG CLEAN
all 3 60A006P PORON STRIP .25X1 1/4# W E=FT
all 4 20C044 RUB/GASKET ADH 3M#EC1300 PINTS
all 5
X3 06130C FILL-PLATE=SHELLDOOR
all 6 03 06130 GASKET=SHELL DOOR 2/72SG
all 7 03 06130A LINER=SHELLDOOR RT 72SGD SS
all 8 15K039A BUTSOKCPSCR 1/4-20X7/8 SS 18-8
all 9 15G164 HX THIN LOCKNUT NYL1/4-20 SS
all 10 03 06302 BAR=GASKET CLAMPING
all 11 15N174 HXCAPSCR 1/4-20UNC X5/8SS18-8
all 12 15U181 LOCKWASHER MEDIUM 1/4 SS18-8
all 13 03 06225G DOORTUBE-72SGA-OURTUBE
all 14 02 18981G DOOR TUBE-60SGH-PRES. TUBE E
all 15 02 18181 FITTING-BRASS FOR INNER TUBE
all 16 60E004TE 1/4"OD X.170"ID NYL(BLK)TUBING
all 17 53A047H MALCON 5/16X1/8POLY PH#68P-5-2
Shell Doors
4 Sheets
72044WR3, 72044SR2
Shell, Cylinder & Door
