Pellerin Milnor Corporation 115

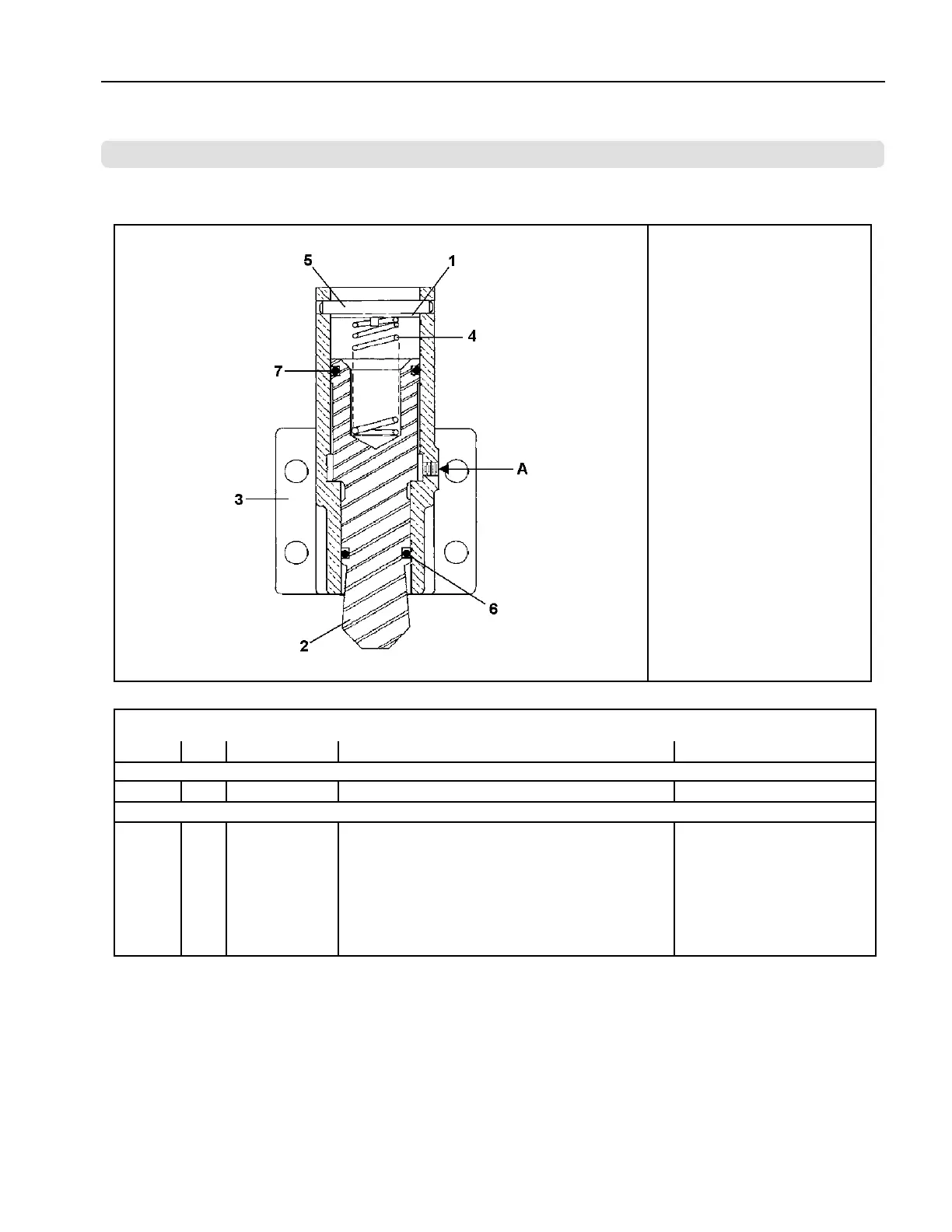

Cross Section
Legend
A...Compressed air
Table 35. Parts List—Door Latch
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A SA 15 028 Assembly, Door latch
Components
all 1 02 15105 RETAINER RING
all 2 02 15297 STRIKER
all 3 02 15298 CYLINDER
all 4 02 15836 SPRING
all 5 15H090 PIN
all 6 60C122 O-RING, 1”X1/8
all 7
60C128 O-RING, 1+3/8X1/8
Door Latch
1 Sheet
BPWG4D02 / 2020034
BPWG4D02.1 0000267678 A.4 A.2 1/15/20 9:51 AM Released
Shell, Cylinder & Door
