Pellerin Milnor Corporation

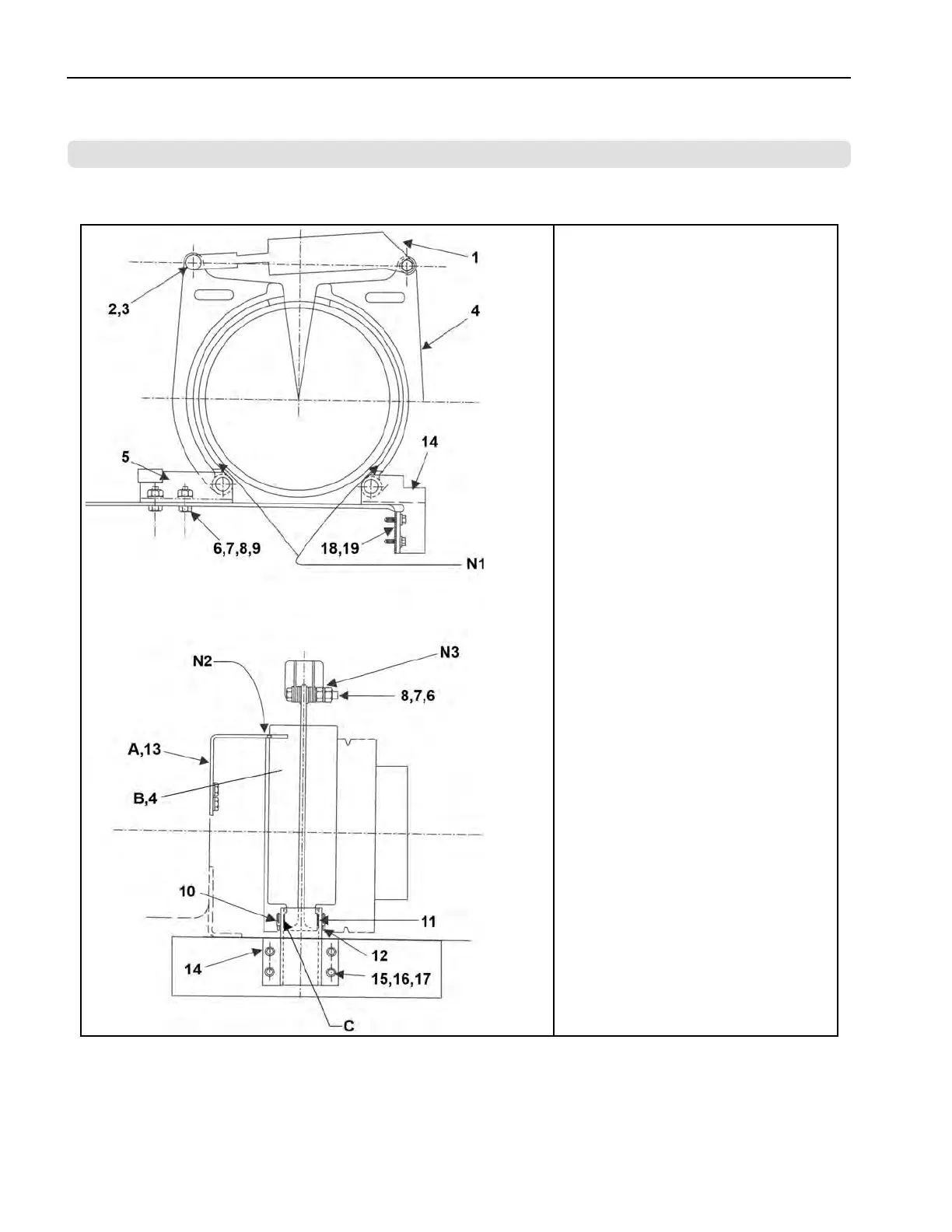

Legend
A...Stop
B...Shoe
C...Do not lubricate. Make sure nyliners
are in place.
N1..Adjust anchor by sliding back and
forward so that brake lining clears
drum in open position and contacts
drum in closed position.
N2..When the Brake is off, the back of
the shoe pushes against the Limit
Bracket (Stop) to prevent the brake
from rattling. Center the opening in
the stop with the shoe so that the shoe
pushes on the stop in the open posi-
tion and doesn’t drag on the drum.
N3..Tighten these jam nuts enough to
take out the excess clearance. Do Not
Over Tighten, the Air Cylinder must
move freely.
Upper Brake Assembly
2 Sheets
72044SR2/SR3
BPWG7I07 / 2020234
BPWG7I07.1 0000294737 A.4 A.3 6/3/20 9:12 AM Released
Drive Assemblies
