Pellerin Milnor Corporation
Gasket and Guard
Legend
A...See detail A
B...4 instances
C...10 instances
D...6 instances
E...Shell weldment

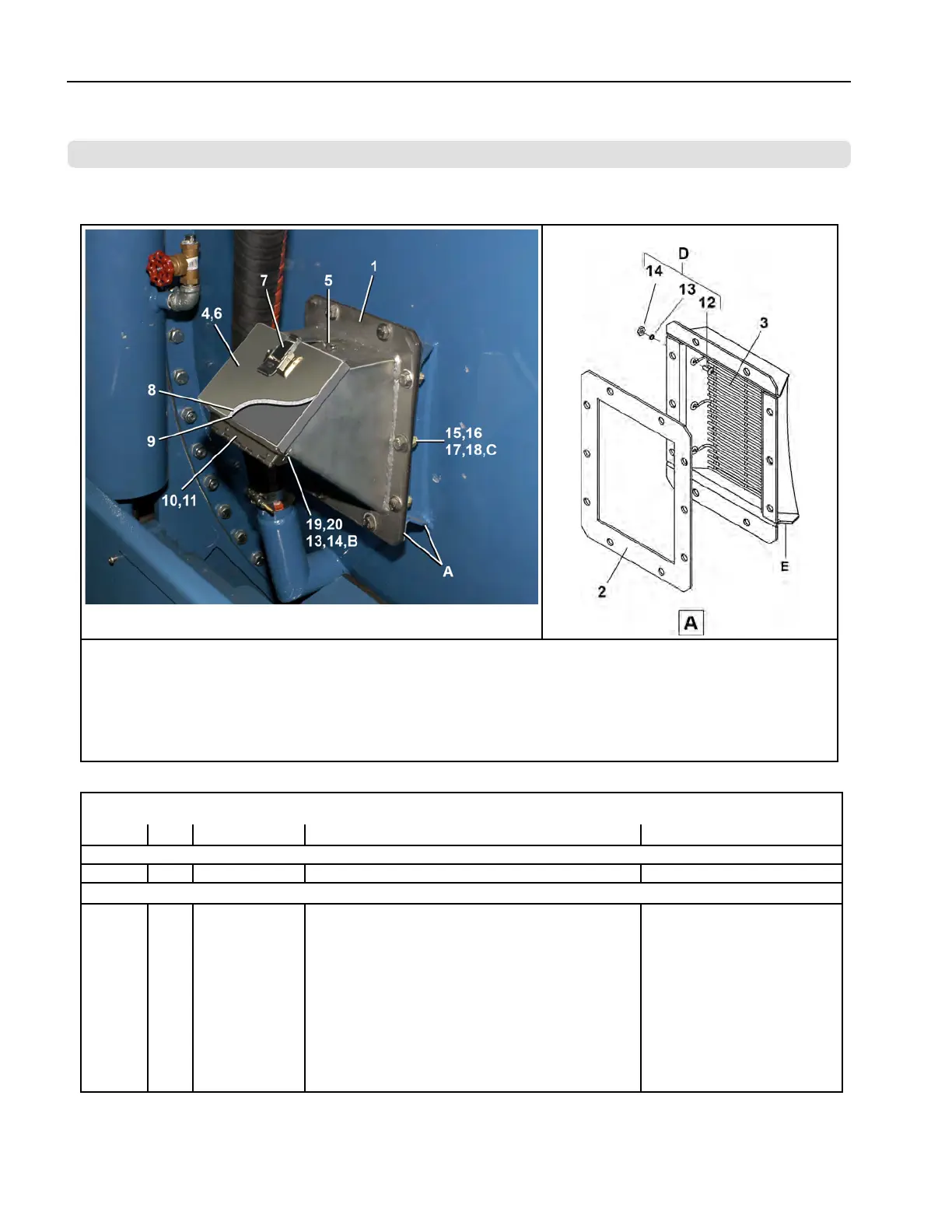

Table 48. Parts List—Soap Chute
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A G29 05500B INST=SOAP CHUTE 60/72SG
Components
all 1 W2 18884 WLMT=SOAP CHUTE
all 2 02 18887 SOAP CHUTE GASKET
all 3 02 15982 GUARD=42WE SOAP CHUTE
all 4 SA 15 102 *LID ASSY=SOAPCHUTE-GASKETED
all 5 02 18640 HOOK=SOAPCHUTE LATCH
all 6 02 15817 LID=SOAP CHUTE (BEND@PRINT)
all 7 27A009B CATCH SPECIAL 2-HOLE BASE
all 8 02 15838 GASKET-SPONGRUBBER=SOAPCHUTE
all 9 02 15839 GASKET-SHEETRUBBER=SOAPCHUTE
all 10 02 02706 HINGE=SOAP CHUTE
Soap Chute
2 Sheets
72044SR2
BPWG7C02 / 2020245
BPWG7C02.1 0000295570 A.4 B.2 6/16/20 10:06 AM Released
