Milnor 72044SR2 - Excursion Switch; 6044 Sr2, 6044 Sr3, 7244 Sr2

138
Pellerin Milnor Corporation
60044WR2 Shown

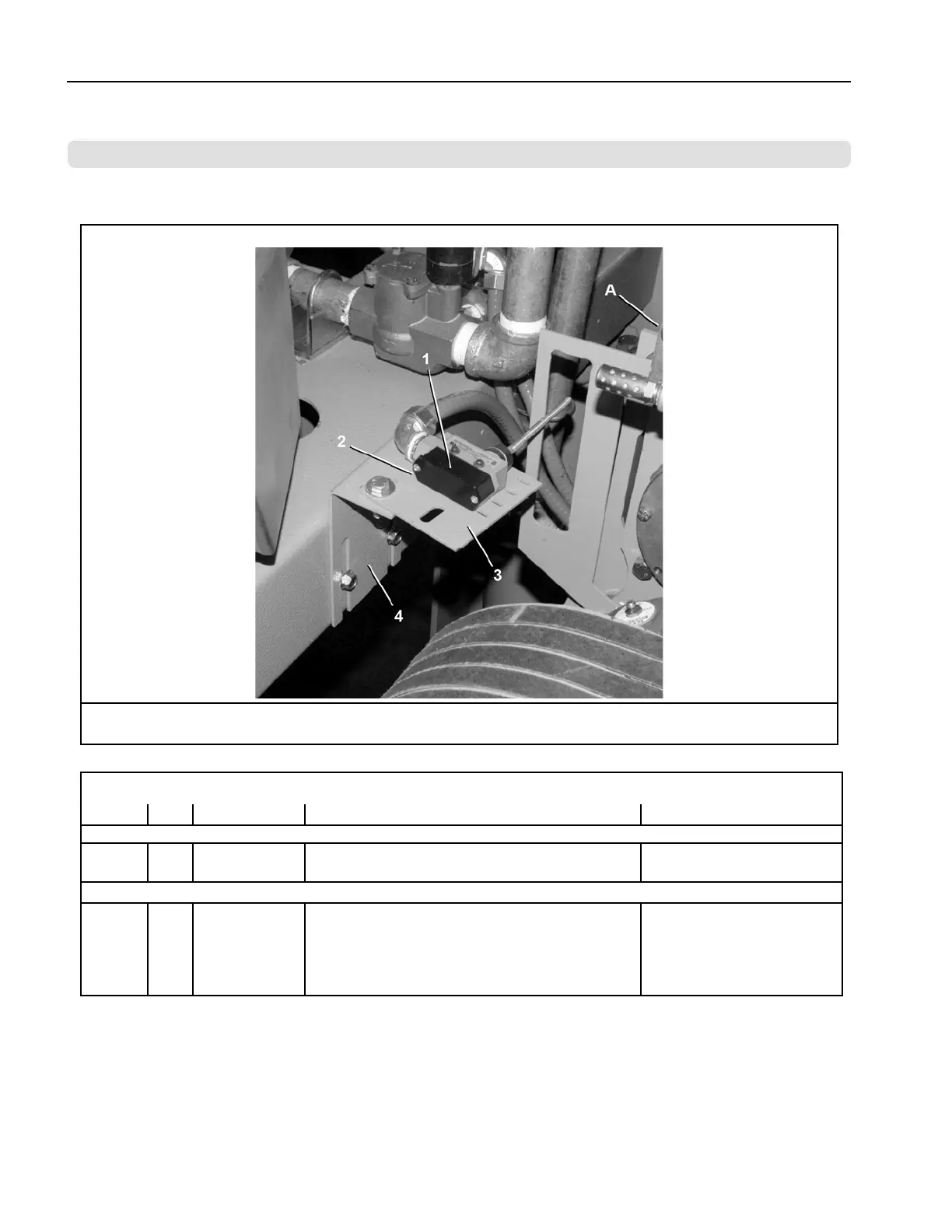

Legend
A...Jackshaft
Table 41. Parts List—Excursion Switch
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A E03 33100B EXCURSION SWITCH ASSY 60SGH 6044SR2, SR3
B E15 04000 * EXCURSION SWITCH ASSY=SGU 7244SR2
Components
A 1 09R008A MICSW SPDT BZE6-2RN183
B 1 09R008ASTD * 09R008A+MOUNTING HDWRE+INST
all 2 02 10391 COVER STRIP=MICRO SW #6-8
all 3 02 15783A *PLATE=EXCURSION SW MTG
all 4 02 15980B BRACKET=EXCURSION SW MT 72T
Excursion Switch
1 Sheet
6044SR2, 6044SR3, 7244SR2
BPWG6Z01 / 2020195
BPWG6Z01.1 0000290657 A.4 5/7/20 9:11 AM Released
Control & Sensing
