Milnor 72044SR2 - Shaft and Bearing Components; 72044 Wr2, 72044 Wr3, 72044 Sr2, 72044 Sr3

76
Pellerin Milnor Corporation

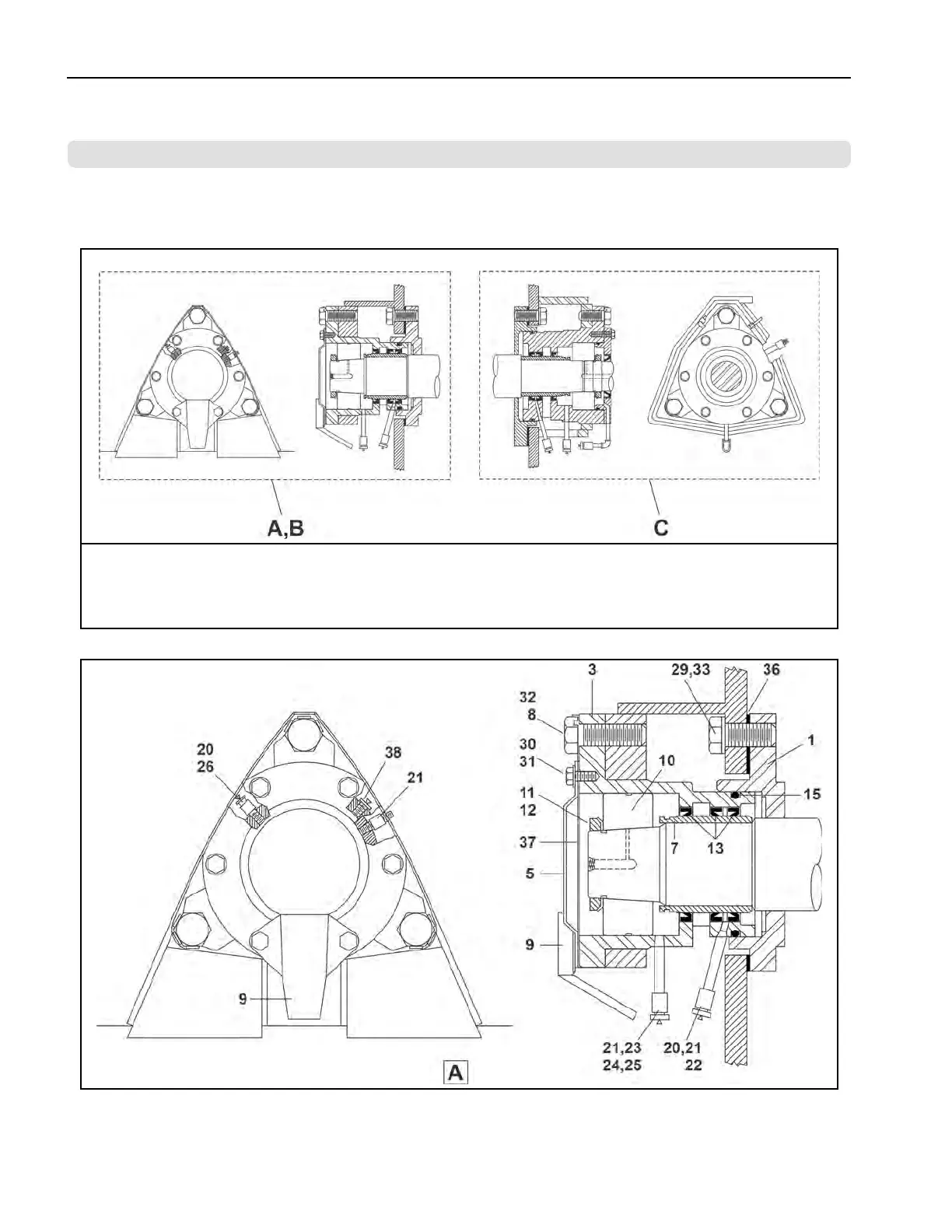

Figure 41. Shaft and Bearing Components
General Views
Legend
A...Front Bearing (Models: 72044WR2, 72044WR3)
B...Front Bearing (Models: 72044SR2, 72044SR3)
C...Rear Bearing (Models: 72044WR2, 72044WR3, 72044SR2, 72044SR3)
Figure 42. Front Bearing (Models: 72044WR2, 72044WR3)
Shaft and Bearing Components
4 Sheets
72044WR2, 72044WR3, 72044SR2, 72044SR3
BPWG7B02 / 2020242
BPWG7B02.1 0000294963 A.4 6/8/20 11:41 AM Released
Drive Assemblies
