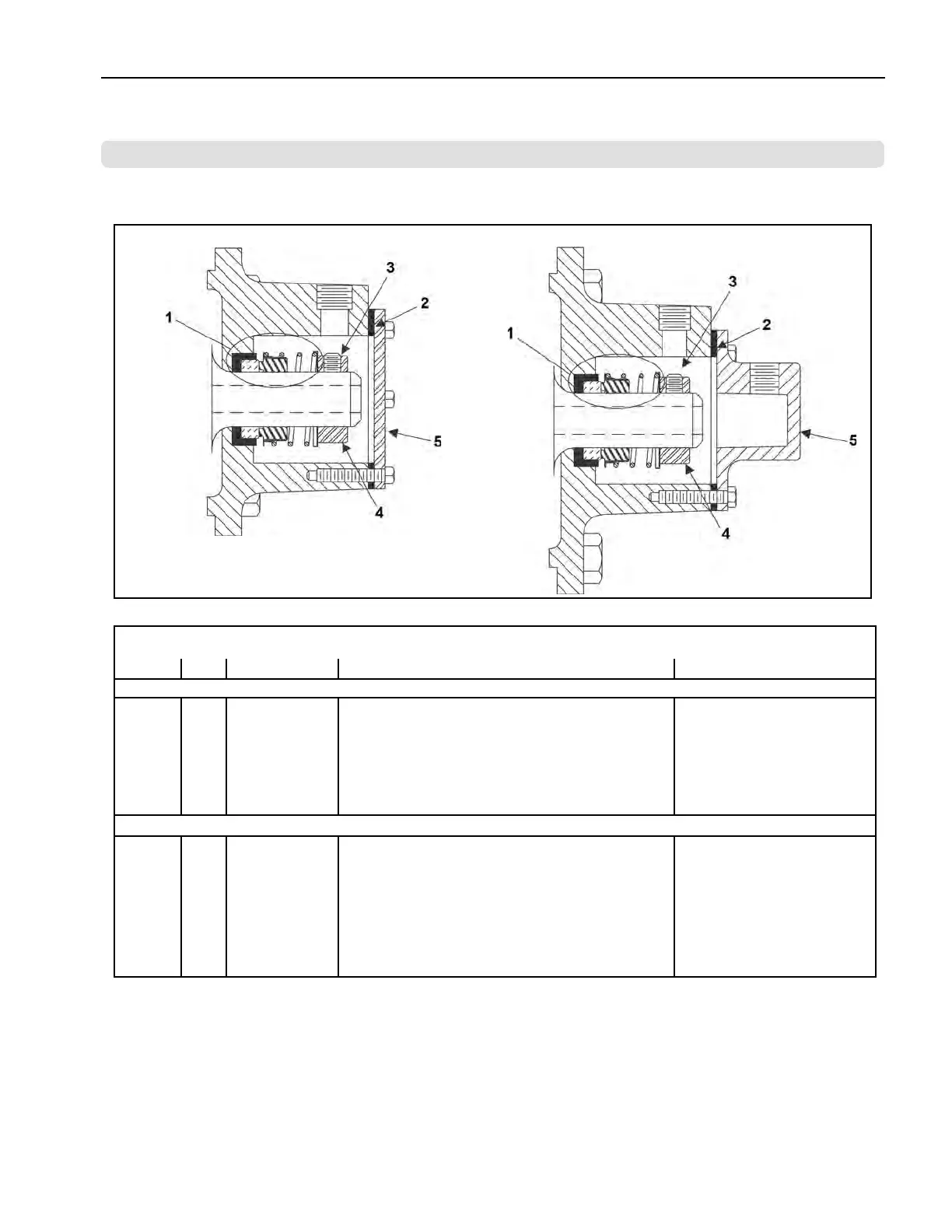

Table 22. Parts List—Reducer Air Seal
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A 54S014HC MILNOR: 15.40:1 TAPERED OUTPUT 3621,3626,4226,4832,4836
B 54S012HC REDUCER 15.4 DORRIS #1115-25HC SHUTL36/40/48R+L
C 54S015 REDUCER 19.6 SKK/DOR 3220-60C 4226DYE
D 54S022A MILNOR, 19.59:1, AIR SEAL 4231,4244,5238
E 54S023B MILNOR, 10.17:1 AIR SEAL 7.5 6044WR2/WR3
F 54S025A MILNOR, 10,17:1, AIR SEAL 30HP GEAR RED 6442,6446,7244,6440,6450
Components
BF 1 24S020 MECHSHFT SEAL CRANE 3/4”TYPE#2 (PART OF KIT ITEM 6)
B-F 2 02 15111 GASKET AIRSEALHOUSING COVER (PART OF KIT ITEM 6)
B-F 3 15Q077 SOKSETSCR 1/4-20X1/4 ZINC ALLE (PART OF KIT ITEM 6)
B-F 4 02 10380 Z SHAFT COLLAR FOR AIR SEAL (PART OF KIT ITEM 6)
A-C
5 02 15108 COVER=ROTARY AIRSEAL HOUSING
D-F 5 02 15108A CVR,OUTPUT,ENDCAP MILNOR 23/25
all 6 K10 0002 KIT=ROTARY AIR SEAL ITEMS 1–4
Reducer Air Seal
1 Sheet
BPWG7I04 / 2020223
BPWG7I04.1 0000294227 A.4 A.3 5/26/20 8:53 AM Released
