Pellerin Milnor Corporation
NOTE: For instruction: push down travel dimensions and adjustment procedures, see
BNWVUM01

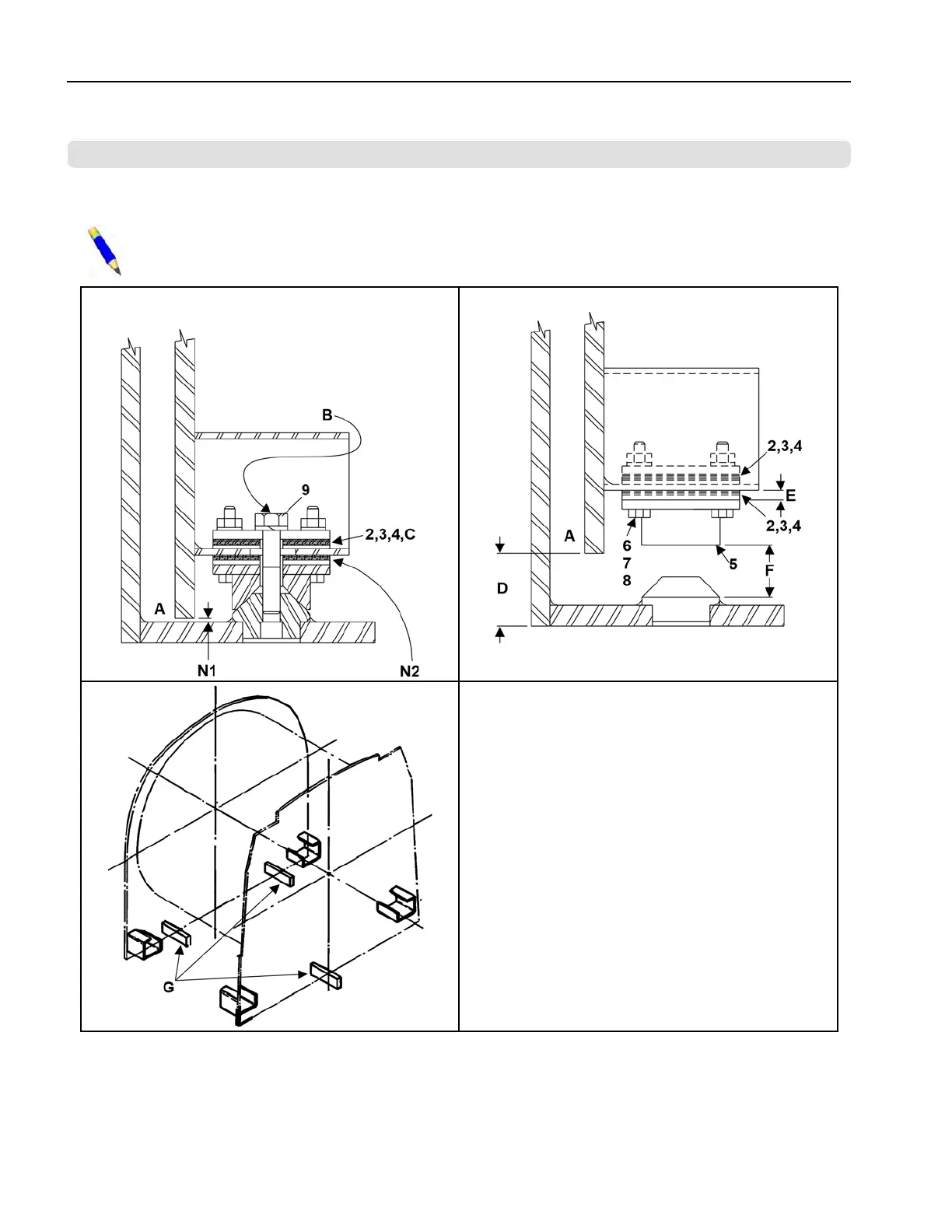

Cross Section: Machine Locked down for
Shipment
Adjustment Complete, Machine Up
Legend
A...Machine Shell
B...Remove shipping bolt before running machine. See
instructions for Adjustment of Hold Down
C...Place extra shims above
D...Unloaded 3-3/4”
E...1/2” approx.
F...2” travel of empty basket
G...Setting blocks for adjustment. Blocks must hold
shell approximately 3/8” above base pads when ma-
chine is pushed down.
N1..Be sure shell does not bottom on basepad, there must
be clearance at this point. Check each corner
N2..Place shims here to adjust ring weldment so that all
four corners seat simultaneously.
Hold Down Adjustment
2 Sheets
6044SR2/SR3, 6044WR2/WR3, 72044SR2/SR3, 72044WR2/WR3
BPWVUJ03 / 2020245
BPWVUJ03.1 0000294996 A.4 A.5 6/11/20 2:02 PM Released
Frame & Suspension
