Pellerin Milnor Corporation

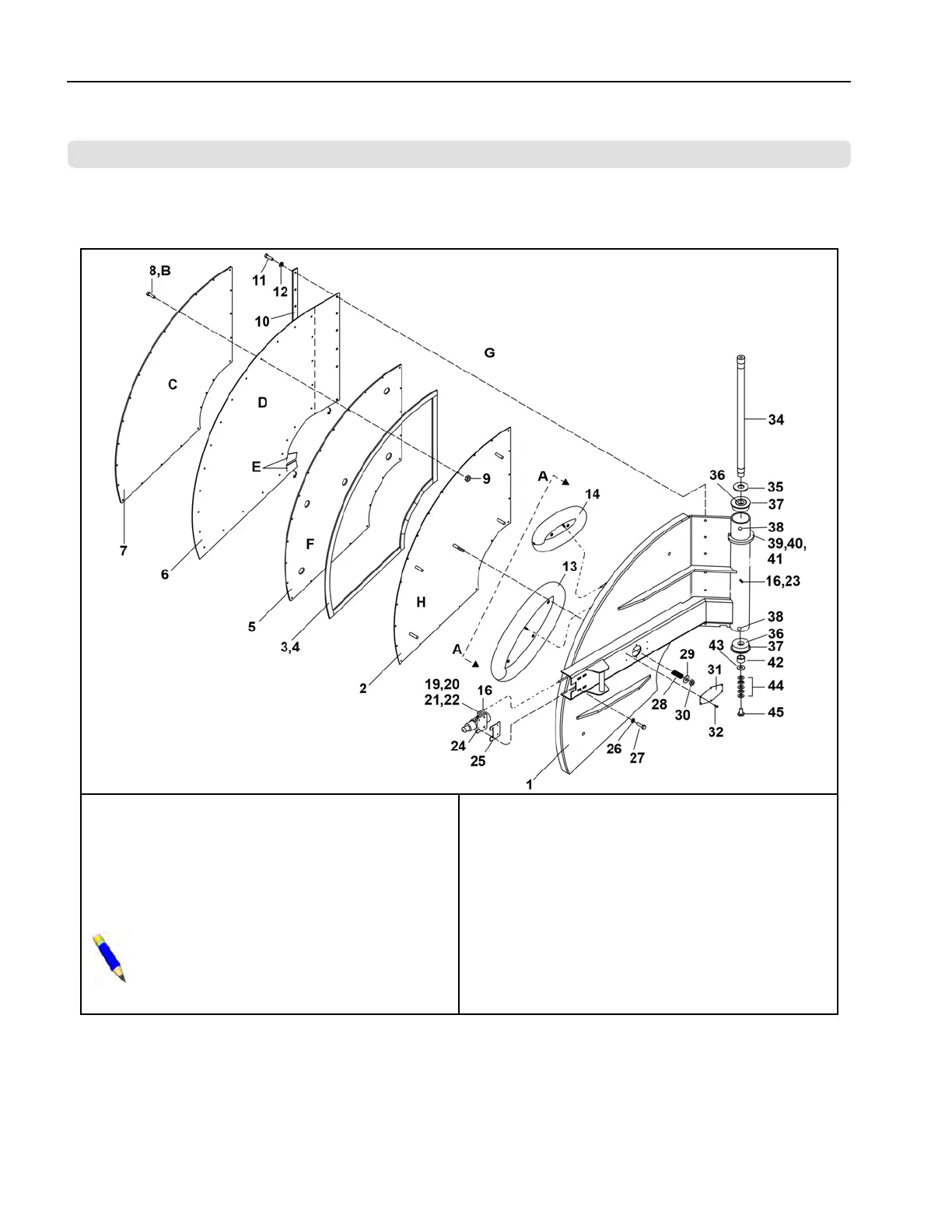

Figure 53. Exploded Views
Adjust the Pressure Plate
1...With the inner tubes deflated, tighten the tension nut
(item 30), until two threads extend beyond the nut.
2...Check the spring with air pressure applied to the in-
ner tubes. Verify that the spring is not over com-
pressed. If the spring height is only 3/4”, it will be
necessary to loosen the tension nut.
NOTE: The door spring should be slightly com-
pressed. If the spring is compressed too much the air
bags will not be able to inflate and properly seal the door.
Legend
A-A.Detail view A–A
B...24 instances
C...Liner
D...Door gasket
E...Tabs: Fold gasket tabs over the edge of the door and
anchor with holding strips (item 33) and screws on
the final assembly.
F...Fill plate
G...Apply glue (4) to both surfaces
H...Pressure plate
Shell Doors
4 Sheets
72044WR3, 72044SR2
BPWG7D01 / 2020245
BPWG7D01.1 0000295236 A.4 B.4 4/19/21 11:40 AM Released
Shell, Cylinder & Door
