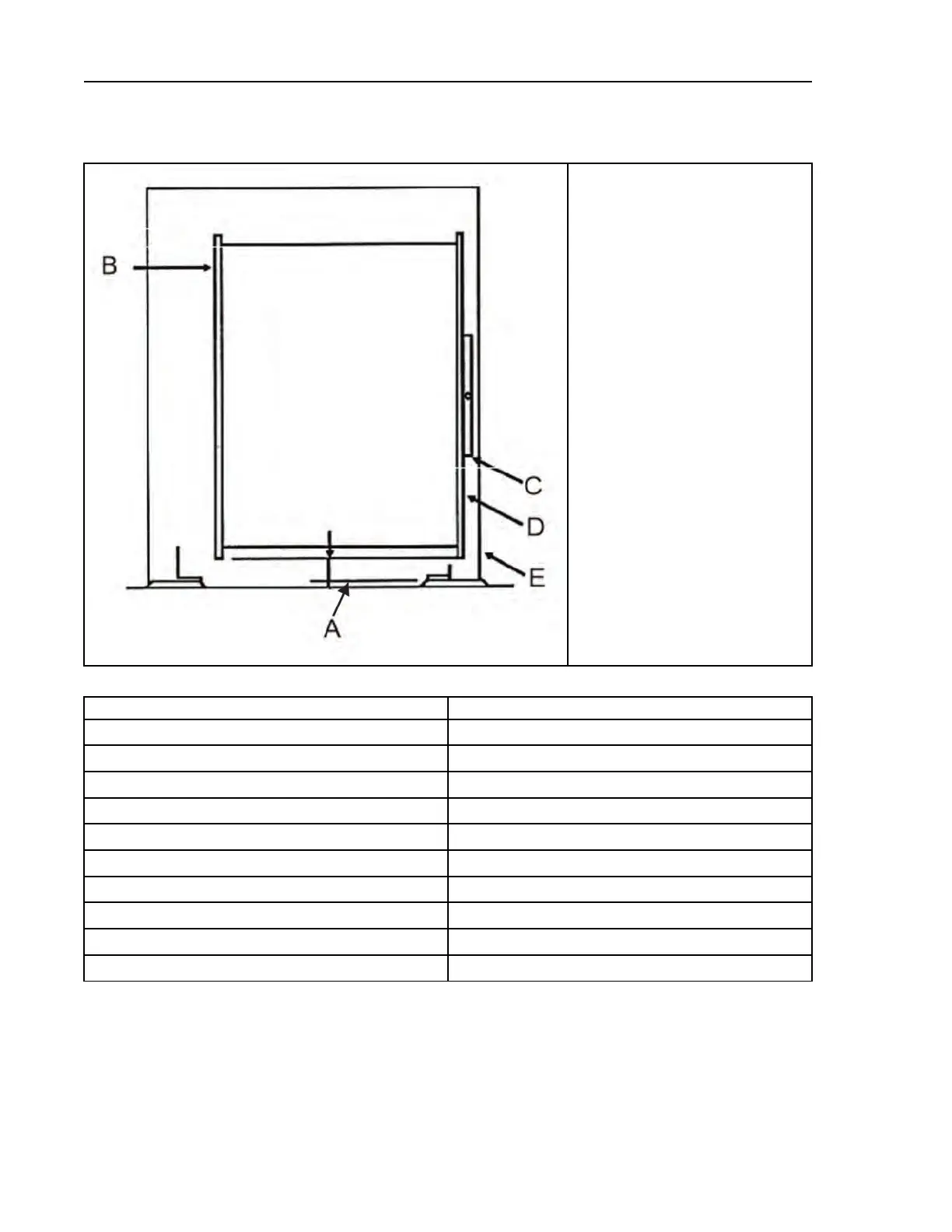

Figure 48. Shell Hanging for Divided Cylinder Machines (Left side view of 60044WE shown)
Legend
A...Hanging Dimensions
B...Shell back
C...Bubble level
D...Shell front
E...Frame
Table 30. Hanging Dimensions
Machine Model Dimension A
42031WE
4 1/8" (105)
42031SG
4 1/8" (105)
44044WE
4 1/8" (105)
42044SG
4 1/8" (105)
60031WE
3 5/8" (92)
60031SG
3 5/8" (92)
60044WE
3 5/8" (92)
60044SG
3 5/8" (92)
72044SG
3 3/4" (95)
72044WE
3 3/4" (95)
