Milnor 72044SR2 - Cylinder Doors 3 Pocket; 7244 Wr3, 7244 Sr3; Section Views

Pellerin Milnor Corporation 121

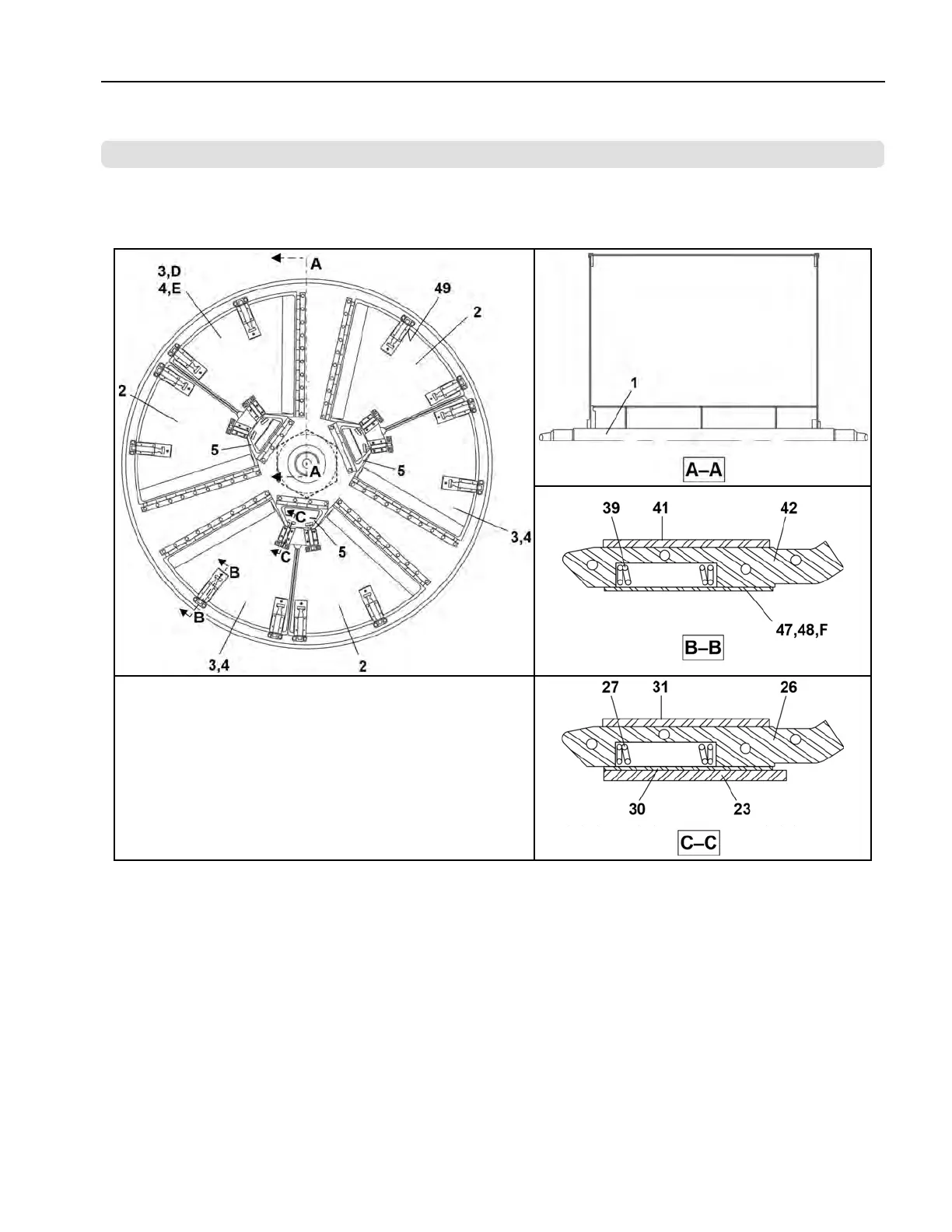

Figure 58. Section Views
Legend
A-A.Section A–A view
B-B.Section B–B large door latch
C-C.Section C–C small door latch
D...Soil side
E...Clean side
F...Shims
Cylinder Doors 3 pocket
5 Sheets
7244WR3, 7244SR3
BPWG7D02 / 2020253
BPWG7D02.1 0000295477 A.4 A.7 6/16/20 11:17 AM Released
Shell, Cylinder & Door
