Milnor 72044SR2 - Peristaltic Supply Manifold; 72044 Wr2, 72044 Sr2

146
Pellerin Milnor Corporation

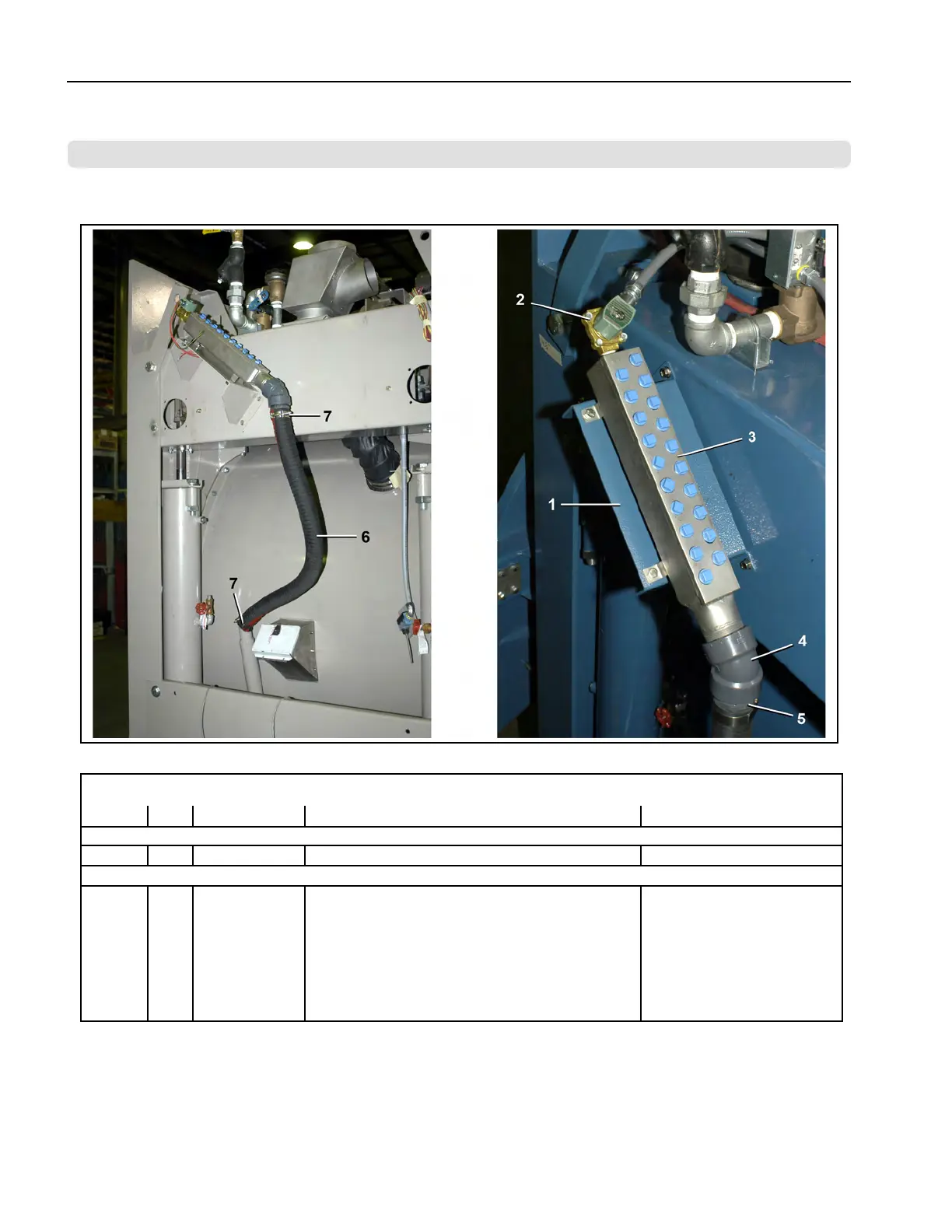

Table 47. Parts List—Peristaltic Supply Manifold
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A GWL52005C INST=PERIS CONN 72SP/WP 72044WR2,72044SR2
Components
all 1 03 25267E PERISTALTIC MOUNTING BRACKET
all 2 96TDC2AA37 1/2"N/C2WY120V50/60C VLV(DRYVC)
all 3 W8 01254 *ASSY=PERIST CONNECT 20 HOLES
all 4 5SL2AP8K NPT EL45DEG 2"PVC SH80 FPTXFPT
all 5
5SCC2AP8 NPT COUP 2" PVC SK80
all 6 60E255A70A HOSE=2"ID X 70"LG(NO DWG)
all 7 27A072 T-BOLT HOSECLAMP2.16-2.47CADSC
Peristaltic Supply Manifold
1 Sheet
72044WR2, 72044SR2
BPWG7C01 / 2020244
BPWG7C01.1 0000295532 A.4 A.3 6/10/20 3:40 PM Released
Chemical Supply Devices
