Pellerin Milnor Corporation

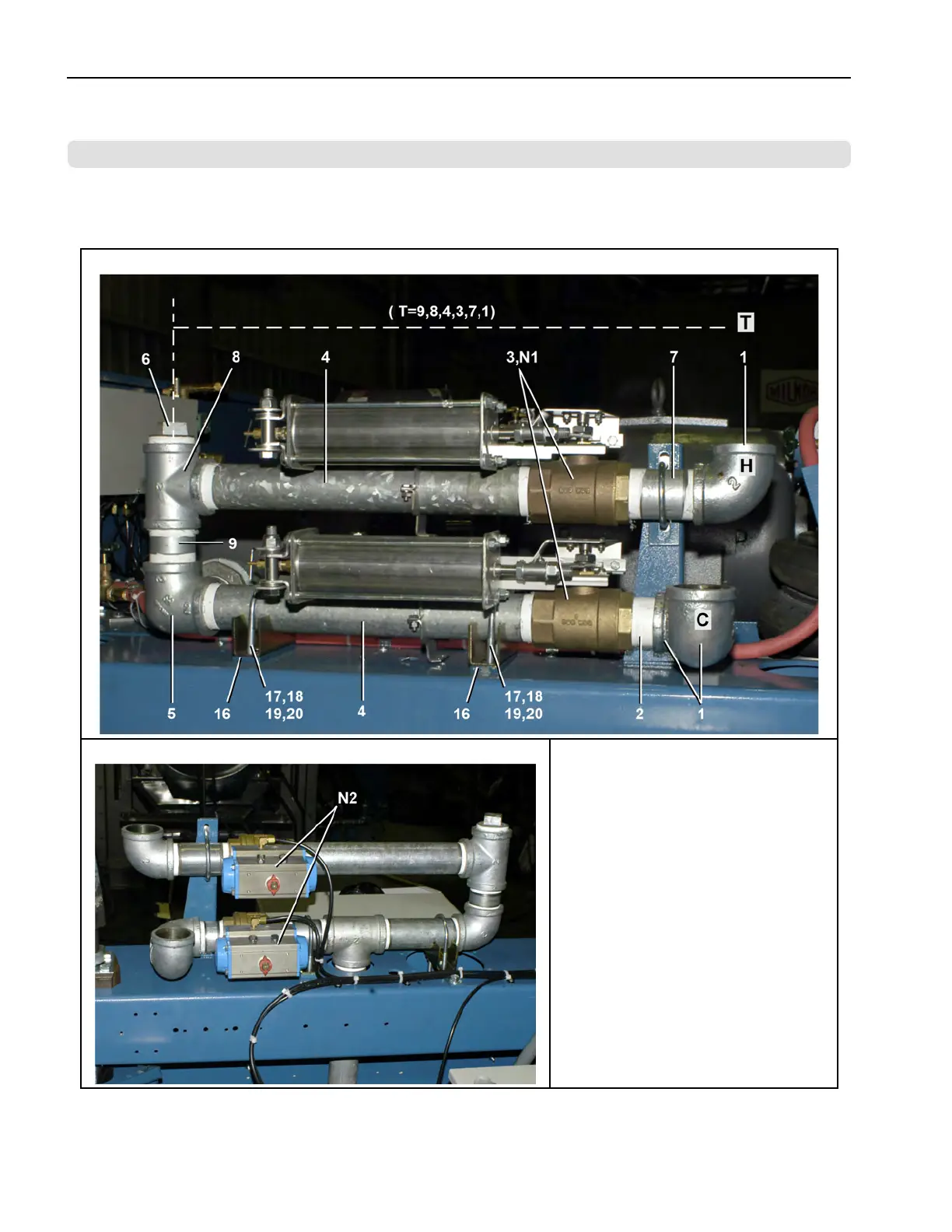

Figure 69. Hot, Cold, and Third Water Inlets
72044SR2 Water Piping before 9/2014
Water valves used since 9/2014 (60044SR2 shown)
Legend
C...Cold water inlet
H...Hot water inlet
T...Third water inlet (location shown
dashed)
N1..The 72044SR2 photos shows watts
water valves not used since 2014. See
the parts list for the current valve part
number.
N2..This 60044SR2 photo shows the cur-
rent valve style.
Water Inlets
3 Sheets
72044SR2
BPWG7W03 / 2020404
BPWG7W03.1 0000307503 A.4 9/30/20 2:21 PM Released
Water & Steam
