102
Pellerin Milnor Corporation
NOTE: The 72044SR2 model is shown. The 72044WR2 repair parts are identical.

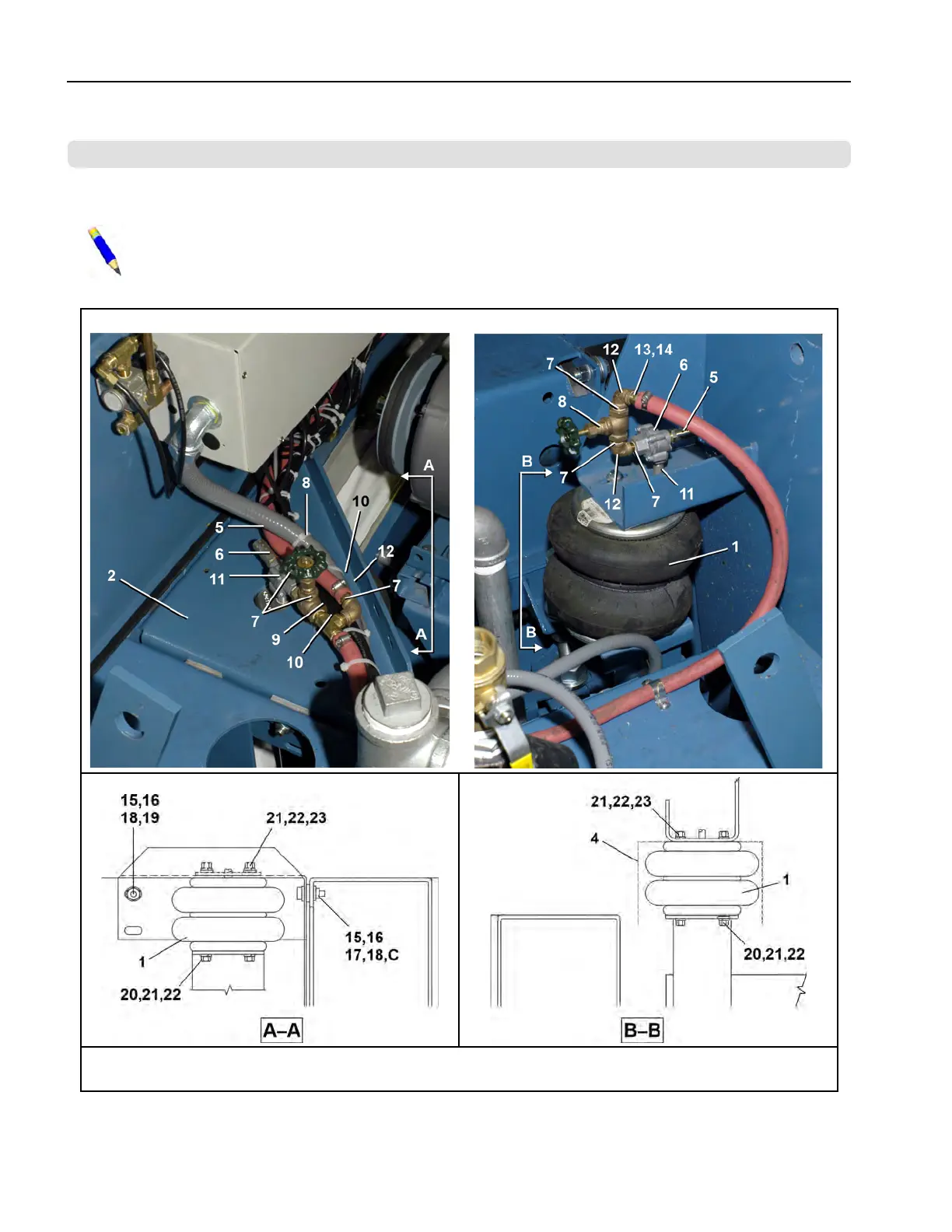

Figure 51. Push Down installation and pneumatic fittings
72044SR2 Clean side; 72044WR2 Left Front
72044SR2 Soil side; 72044WR2 Right rear
Legend
C...Typical
Push Down Components
3 Sheets
72044WR2, SR2
BPWG7J01 / 2020254
BPWG7J01.1 0000295746 A.4 B.3 4/15/21 10:34 AM Released
Frame & Suspension
