118
Pellerin Milnor Corporation

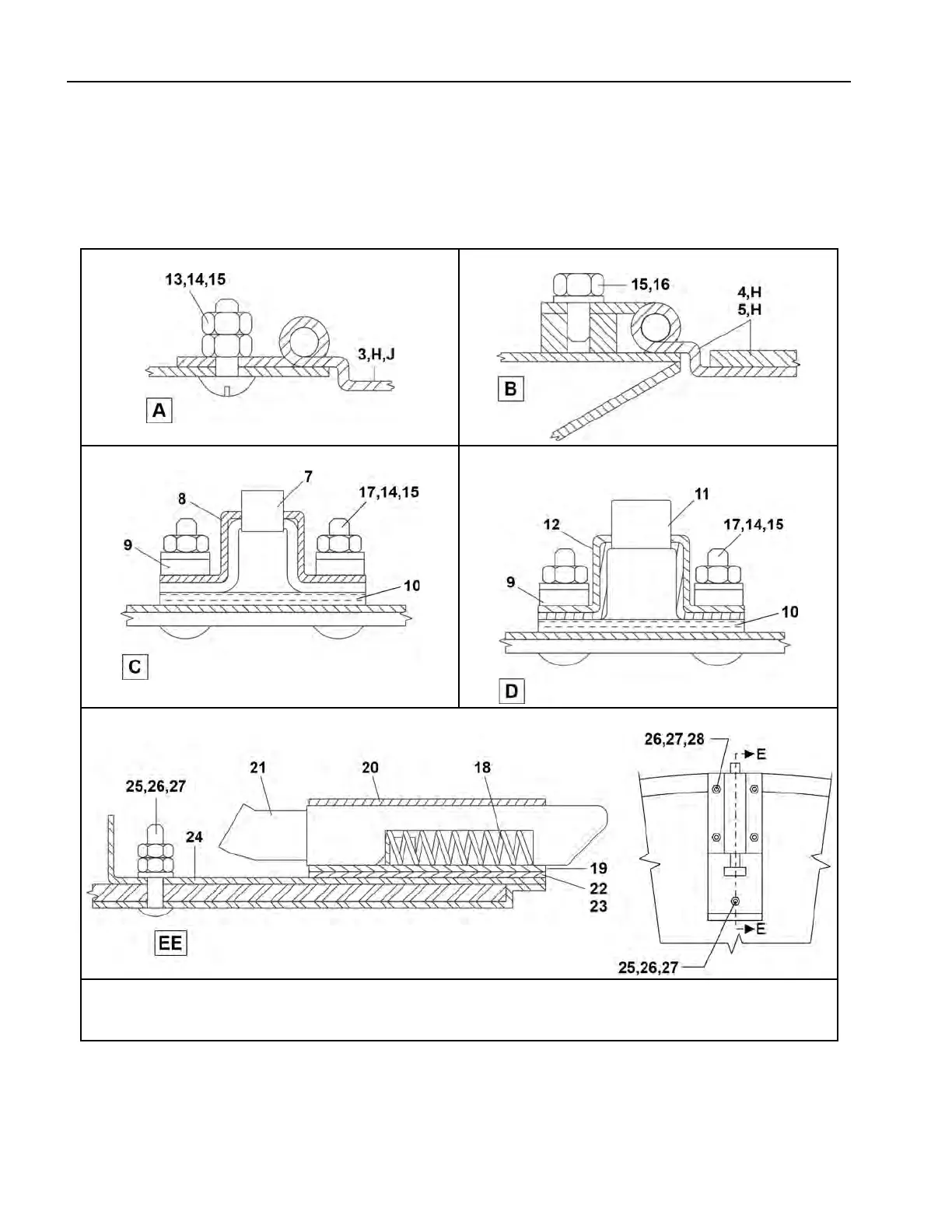

Figure 57. Detail Views
Installed View - Hinge, Lower door
Installed View - Hinge, Upper door
Installed View - Door Latch (Small door) Installed View - Door Latch (Upper door, Lower
door)
Cross Section - Door Latch - Large Doors
Legend
H...Soil side
J...Clean side
Cylinder Assembly and Cylinder Door Installation
5 Sheets
6044SR2, 7244SR2
Shell, Cylinder & Door
