Pellerin Milnor Corporation 119

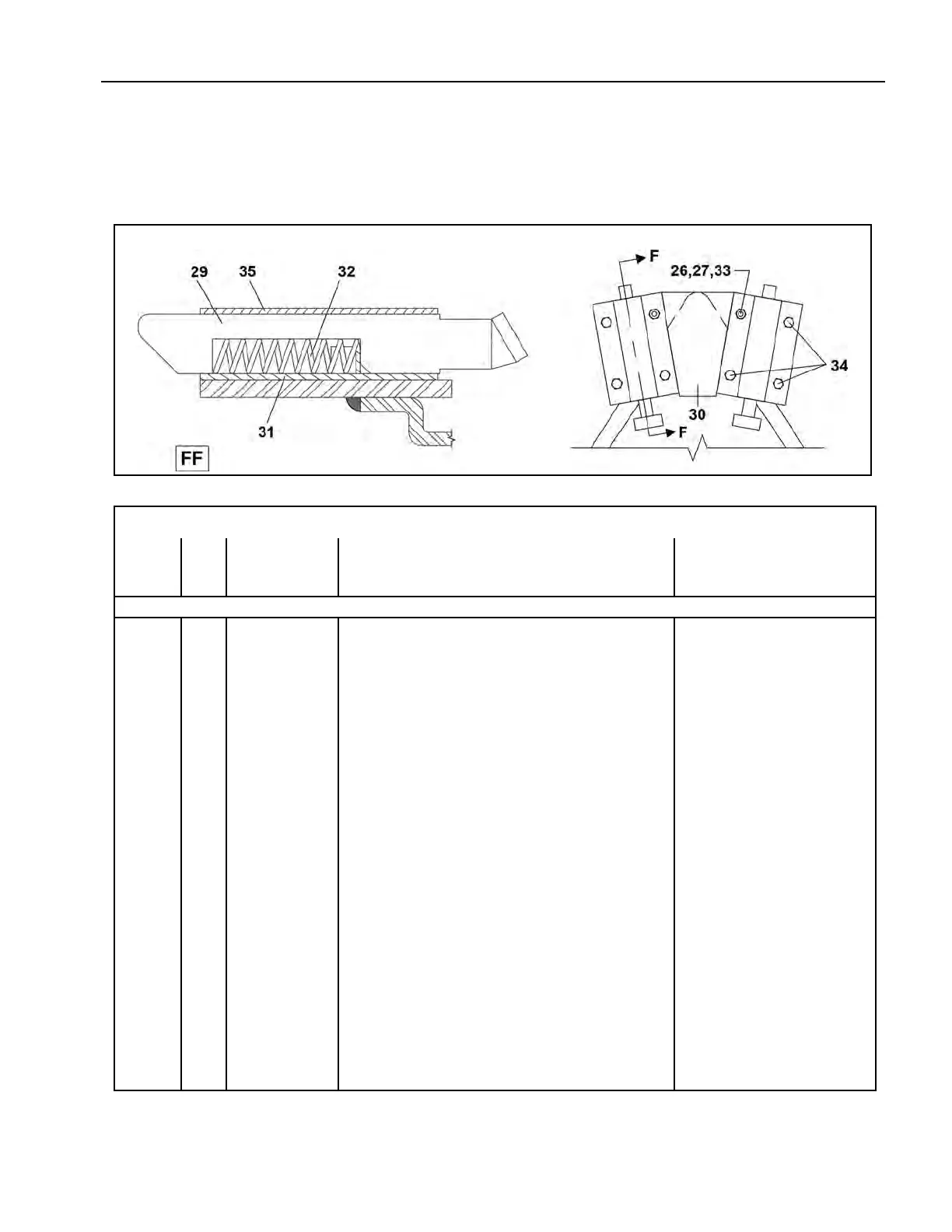

Cross Section - Door Latch, Small Doors
Table 36. Parts List—Cylinder Assembly and Cylinder Door Installation
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
A REFERENCE 6044SR2
B REFERENCE 7244SR2
Components
A 1 ACA19SG2A * CYL ASSY=6044SG2 WELD/SHAFT
B 1 ACA36SG2A * CYL ASSY=7244SG2 WELD/SHAFT
A 3 SA 28 110 CYLDOOR LOLT 60WE2+ MIN-REIF
B 3 SA 36 003 CYLDOOR LOLT 72WE2+ MAX-REIF
A 4 SA 28 111 CYLDOOR UPLT 60WE2+ MIN-REIF
B 4 SA 36 004 CYLDOOR UPLT 72WE2+ MAX-REIF
A 5
SA 28 112 CYLDOOR LORT 60WE2+ MIN-REIF
B 5
SA 36 001 CYLDOOR LORT 72WE2+ MAX-REIF
all 6 SA 28 116 CYLDOR ASY,SMALL =60+72SG2
A 7 X3 06166 KEEPER=CYL DOOR LATCH(MONEL)
B 7 X2 15201 KEEPER=CYLDOOR LATCH(MONEL)
all 8 02 19183 COVER-DOORLATCH KEEP-OURMATL
all 9 03 06174 KEEPER=DOORLATCH REINFORCE
all 10 02 18977A SHIM=CYL DRLATCH KEEPER-11GA
all 10 02 18977B SHIM=CYL DRLATCH KEEPER-14GA
all 10 02 18977C SHIM=CYL DRLATCH KEEPER-18GA
all 11 X3 06166 KEEPER=CYL DOOR LATCH(MONEL)
all 12 03 06167 COVER-LARGE CYLDOOR KEEPER
all 13 15A015 CARRSCR 3/8-16X1+1/4 18-8 SS
all 14 15G206 HEXNUT 3/8-16 UNC2 SS 18-8
all 15 15U260 LOCKWASHER MEDIUM 3/8 SS18-8
all 16 15K086 HXCAPSCR 3/8-16NCX3/4 SS18-8
all 17 15K106E BUTSOKCAPSCR 3/8-16NCX1+1/2 SS
all 18 03 06156 SPRING=LARGE CYLDOOR LATCH
all 19 X3 06152 PLATE = LARGE DOORLATCH
Cylinder Assembly and Cylinder Door Installation
5 Sheets
6044SR2, 7244SR2
Shell, Cylinder & Door
