Milnor 72044SR2 - Examples of Procedures Used at the Milnor Factory to Align Pulleys; Figure 15 Use a Straight Edge, a String, or a Laser to Make Sure that All Pulleys Are in the same Plane

36
Pellerin Milnor Corporation
Examples of Procedures Used at the Milnor
®
Factory to Align Pulleys
BNUUUM02.C12 0000274686 A.4 A.3 3/6/20 4:49 PM Released

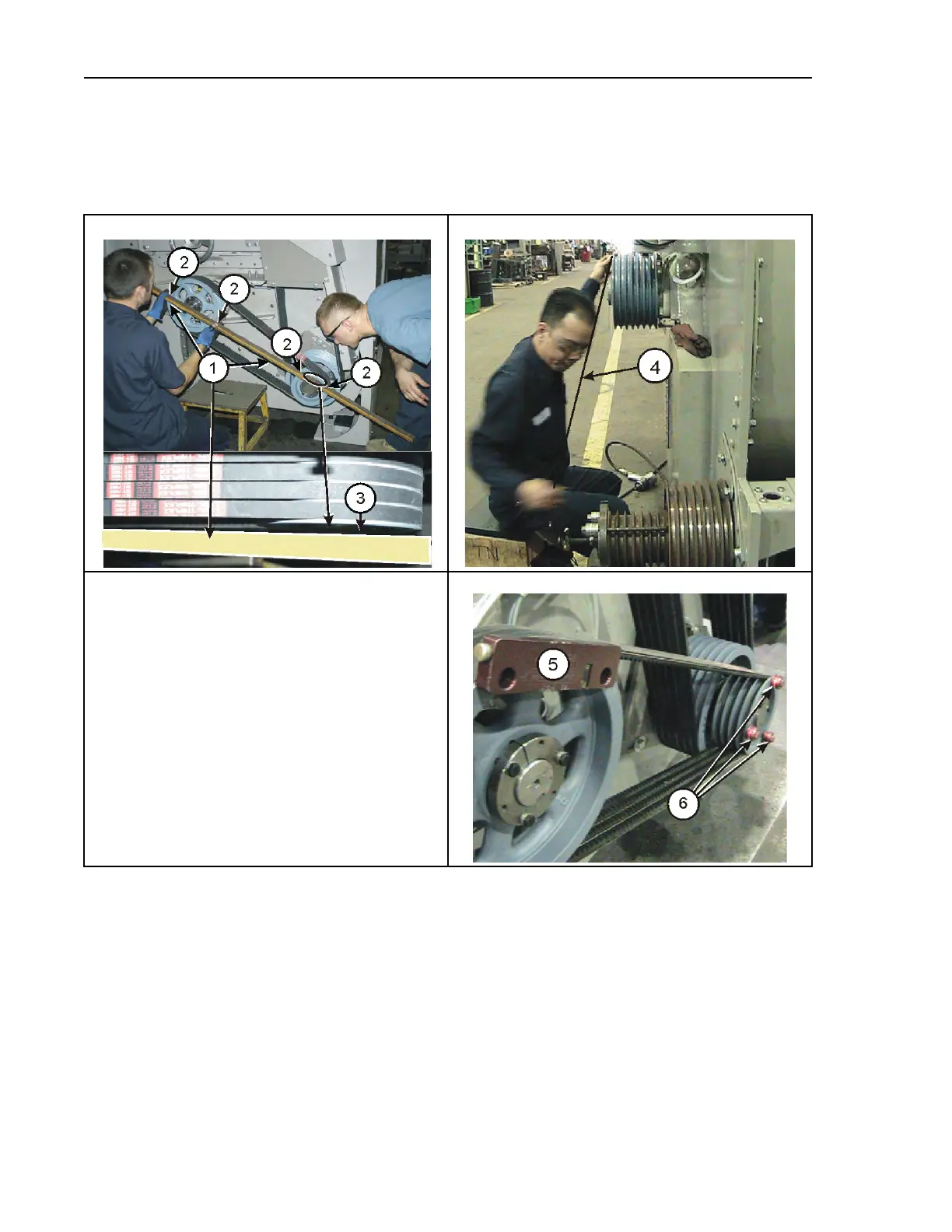

Figure 15. Use a straight edge, a string, or a laser to make sure that all pulleys are in the same
plane.
Straight edge
String
Legend
1. Straight edge.
2. Four points where the straight edge must touch the
pulleys.
3. Space between the straight edge and the pulley. This
shows that the pulleys are not in the same plane.
4. You can use a string as a straight edge if you hold it
tight.
5. Magnet-mounted laser
6. Three targets to point the laser at.
Laser
Drive Assemblies
