Pellerin Milnor Corporation 9

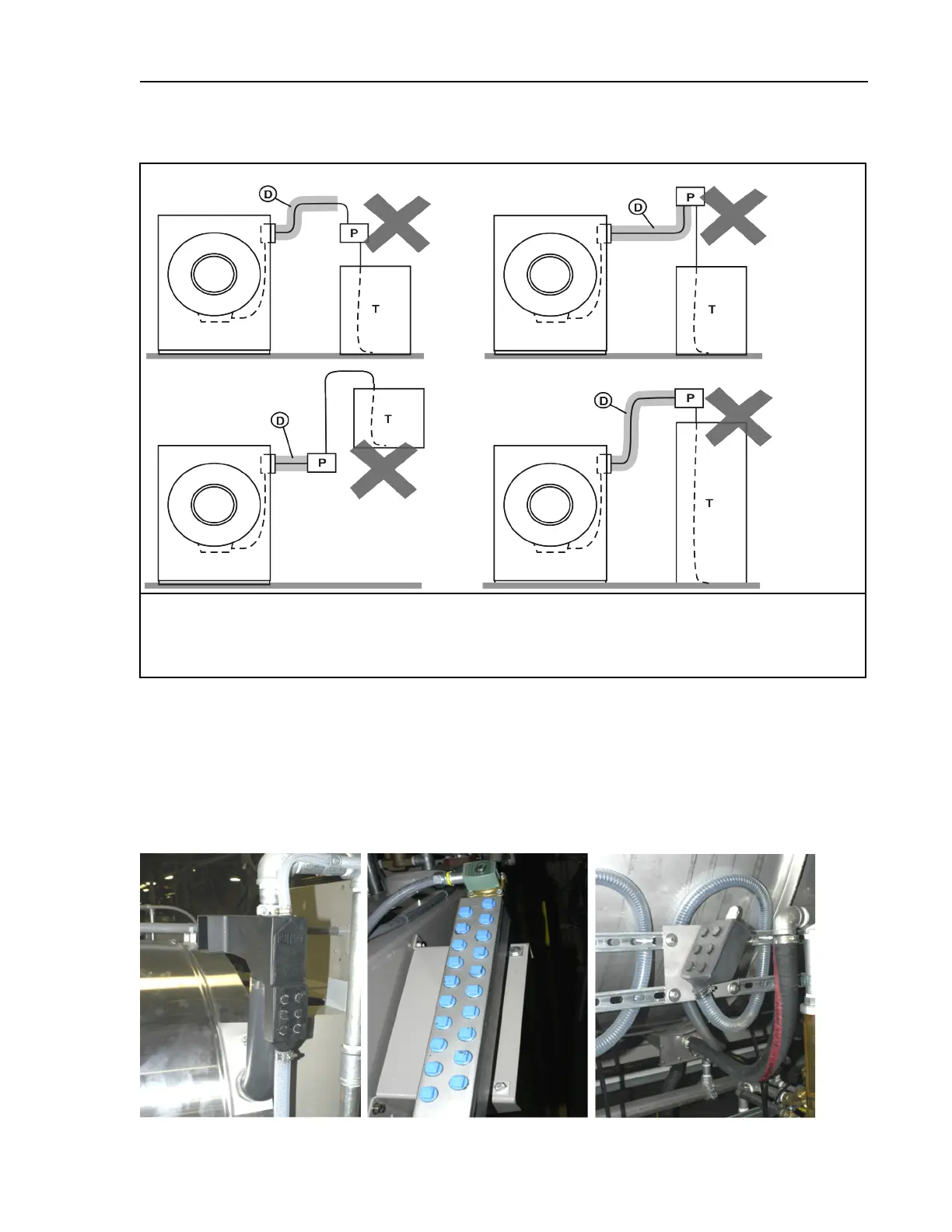

Figure 3. Incorrect Configurations That Let the Chemical Supply Go In the Machine by Gravity
Schematic Views
Legend
P...Pump
T...Chemical tank
D...Chemical tube. Liquid in the gray areas can go in the machine.
1.4.2 Equipment and Procedures That Can Prevent Damage
BNUUUR02.R02 0000160545 A.4 E.3 B.3 1/2/20 2:14 PM Released
Use the chemical manifold supplied. There is a manifold on the machine to at-
tach chemical tubes from a chemical pump system. The manifold has a source of water to flush
the chemical supplies with water.
Figure 4. Examples of Manifolds for Chemical Tubes. Your equipment can look different.
