38
Pellerin Milnor Corporation

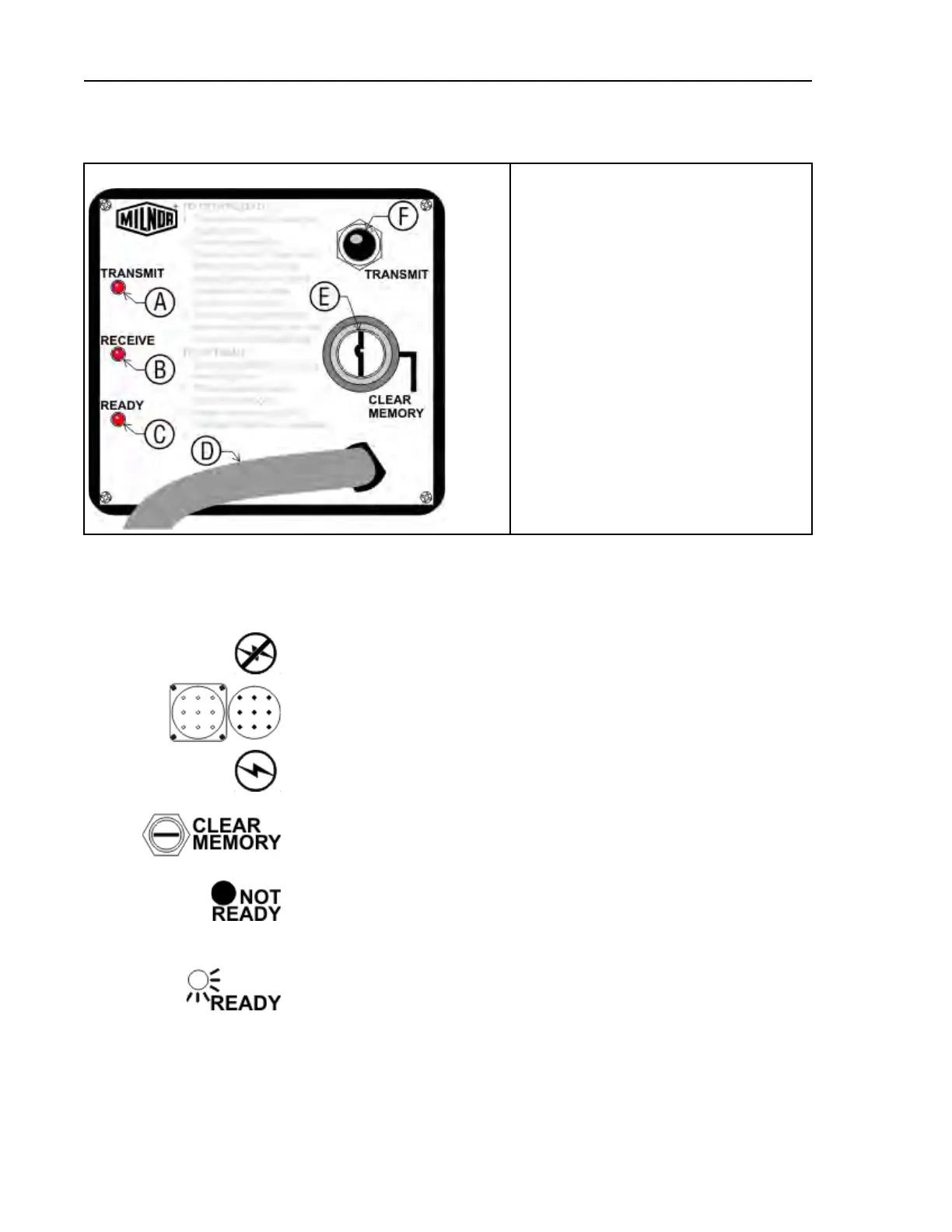

Figure 9. Controls Identification on Serial Memory Storage Device
Serial Memory Storage Device
Legend
A...Transmit light
B...Receive light
C...Ready light
D...Data transfer cable
E...Clear Memory keyswitch
F...Transmit button
2.3.6.1 Establishing the Required Connections
BNCJUP05.R01 0000195291 A.4 A.8 A.6 1/2/20 1:16 PM Released
Display or Action Explanation
Turn off power to the machine before connecting the serial memo-
ry storage device or connecting the two machines together.
Connect the storage device to the machine, or the two machines
together, using the 9-pin round connector.
Apply power to the machine(s). The storage device receives
power through the connector from the power supply in the
machine.
Turn the key on the storage device to Clear Memory, then return
the key to the normal vertical position. This process is handled au-
tomatically when transferring from one machine to another.
The Ready light on the storage device will remain off until the
clearing process is complete. The clearing process is fully auto-
matic and requires no user action beyond turning the key to Clear
Memory and returning it to the normal position.
When the Ready light comes on again (after about 45 seconds),
the storage device is ready to accept data from the machine
controller.
Programming
To Next Page
