MIMAKI UJF-3042FX User Manual

1-5
Configuration and Function
1
Before Use

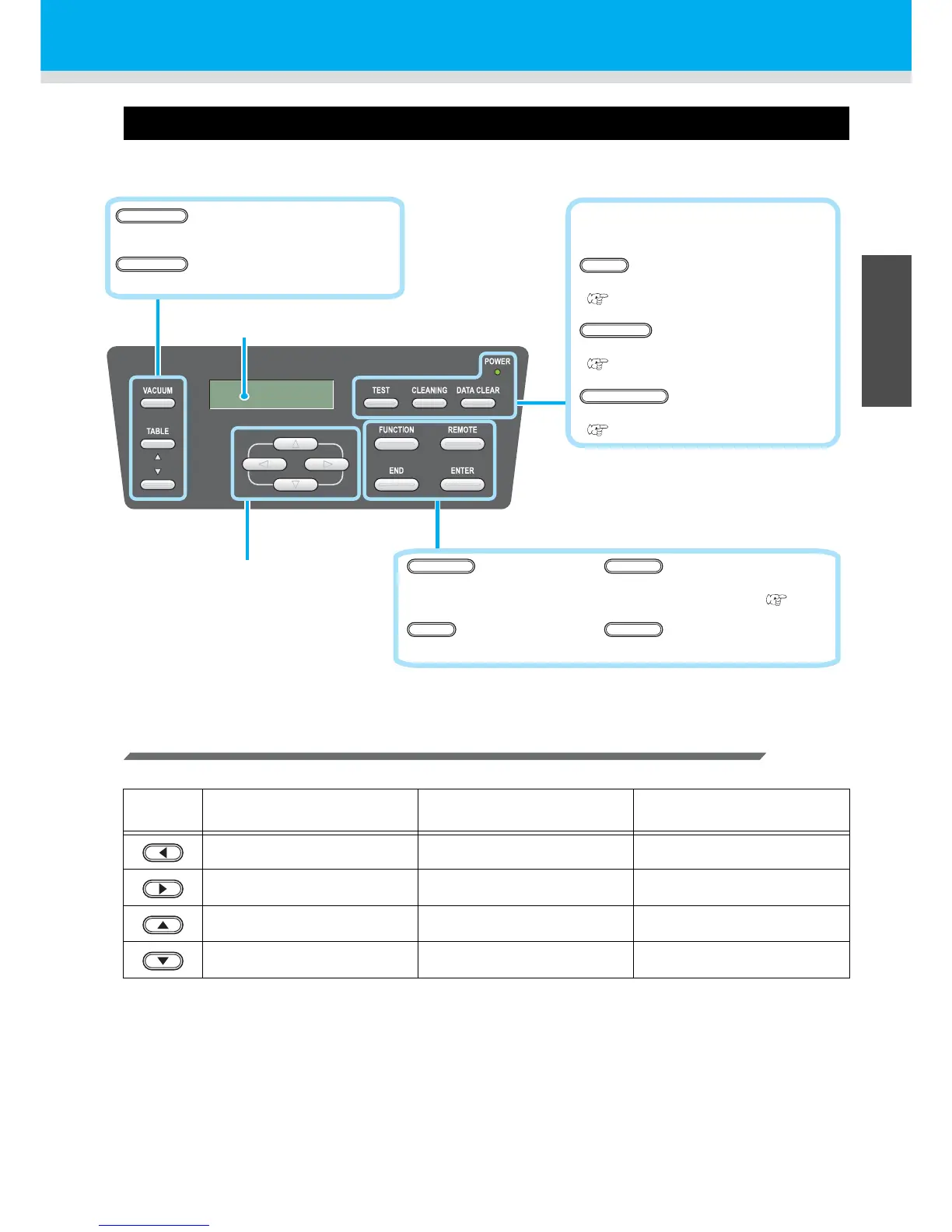

Operation Panel
The operation panel is used for setting of drawing method and each operation.
Function of Jog Keys
A function of the Jog key is different by the timing to be used.
At drawing origin, area setting At function selection At setting selection
Shifts the carriage to the left
Shifts the carriage to the right
Shifts the carriage to the back Return to the previous function Select the previous function
Shifts the carriage to the front Move to the next function Select the next value
Display
Displays state of the machine, setting items, errors, and so on.
Key
Press to switch ON/OFF of the vacuum.
VACUUM
POWER Lamp
Lights when the power is ON.
Key
Press to start the test drawing.
( P.2-6)
TEST
Key
Press to start the head cleaning.
( P.2-8)
CLEANING
Key
Press to erase received data.
( P.3-10)
DATACLEAR
JOG key
Used for moving of the Y-bar
and for each setting.
key
Press to use each function.
FUNCTION
key
Press to switch the remote mode and the
local mode, and vice versa. ( P.1-11)
REMOTE
key
Press to finish the setting.
END
key
Press to determine a setting.
ENTER
Key
Press to raise or lower the table.
TABLE
