2-9
2
Basic Operations

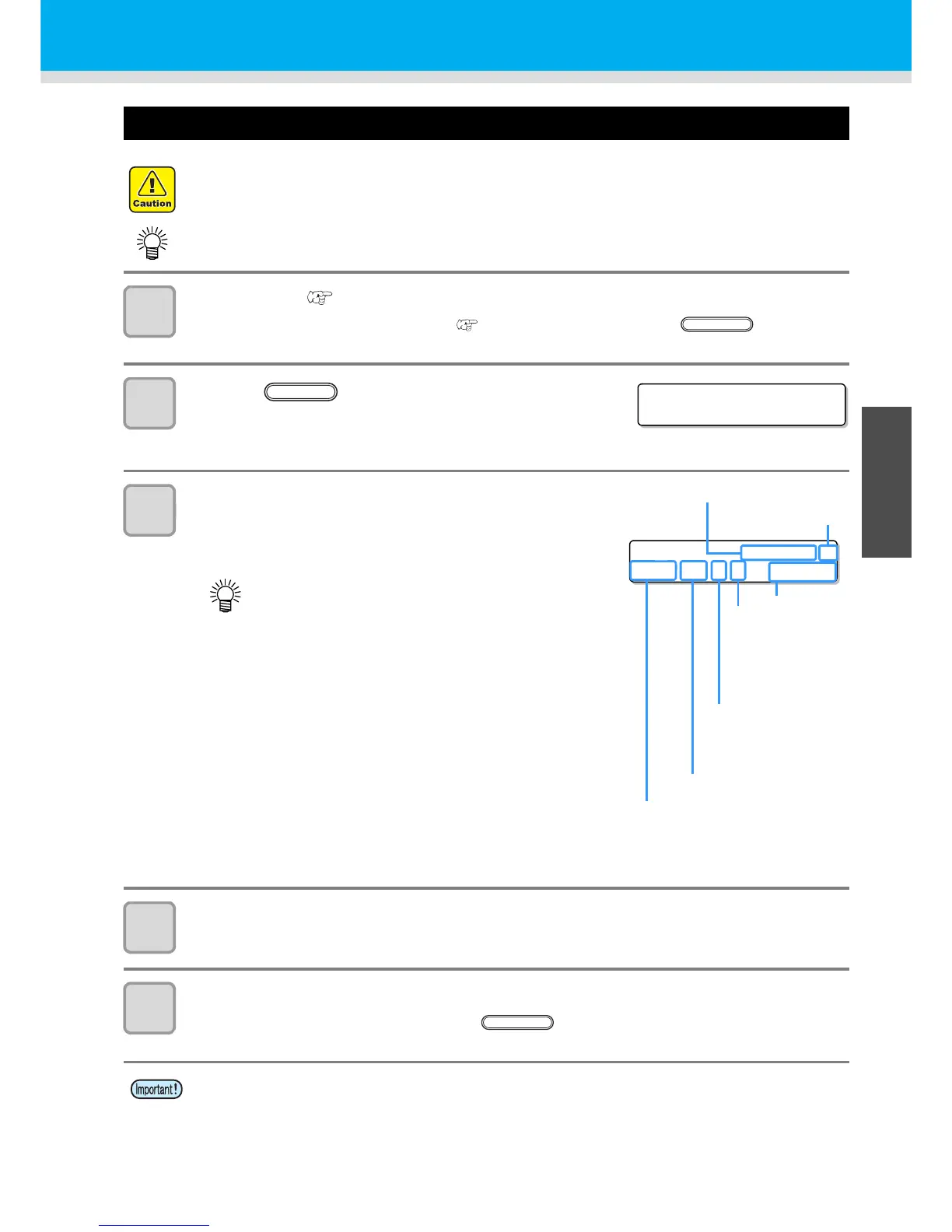

Drawing an image from source data
Starting the drawing operation
1
Set the media. ( P.2-4)
(1) When you set the vacuum fan setting ( P.3-19) to “MANUAL”, press the key depending
on the use and vacuum the media.
2
Press the key in the local mode.
The machine goes in the remote mode and data from the
computer can be received.
The table height is displayed.
3
Transmit data to be drawn from the computer.
Drawing conditions are displayed.
As for the data transmission method, see the instruction manual
of the output software.
4
Start drawing.
The drawing origin is not changed after completion of the drawing.
5
Taking out the media after completion of drawing.
(1) When you made vacuum ON, Press the key to turn the adsorption OFF.
(2) Remove the media.
If the temperature of the head has not reached the predetermined value, a message is displayed.
Drawing is not allowed in such cases. When the display is disappeared, drawing can be started.
Data transmission is allowed even if errors are displayed. Drawing is started after the display is
disappeared.
This machine does not have “H” (double speed)
and “B” (bi-directional).
During printing, media may be heated by the LED UV and raised, causing drawing to be interrupted. In
this case, set new media and restart drawing.
VACUUM
*REMOTE*
49 . 0mm
REMOTE
*REMOTE* 720X600 R
HOST/16/U/N 49.0mm
Pass
Priority is set to “HOST” :
“HOST” is displayed.
Priority is set to “PLOT” :
Print quality (STD/FINE/FAST) is
displayed.
Direction:
“B” denotes bi-directional.
“U” denotes uni-directional.
Scanning speed:
“N” denotes normal.
“H” denotes the
double speed.
Table height
Resolution
With/ without nozzle
recovery setting
VACUUM
