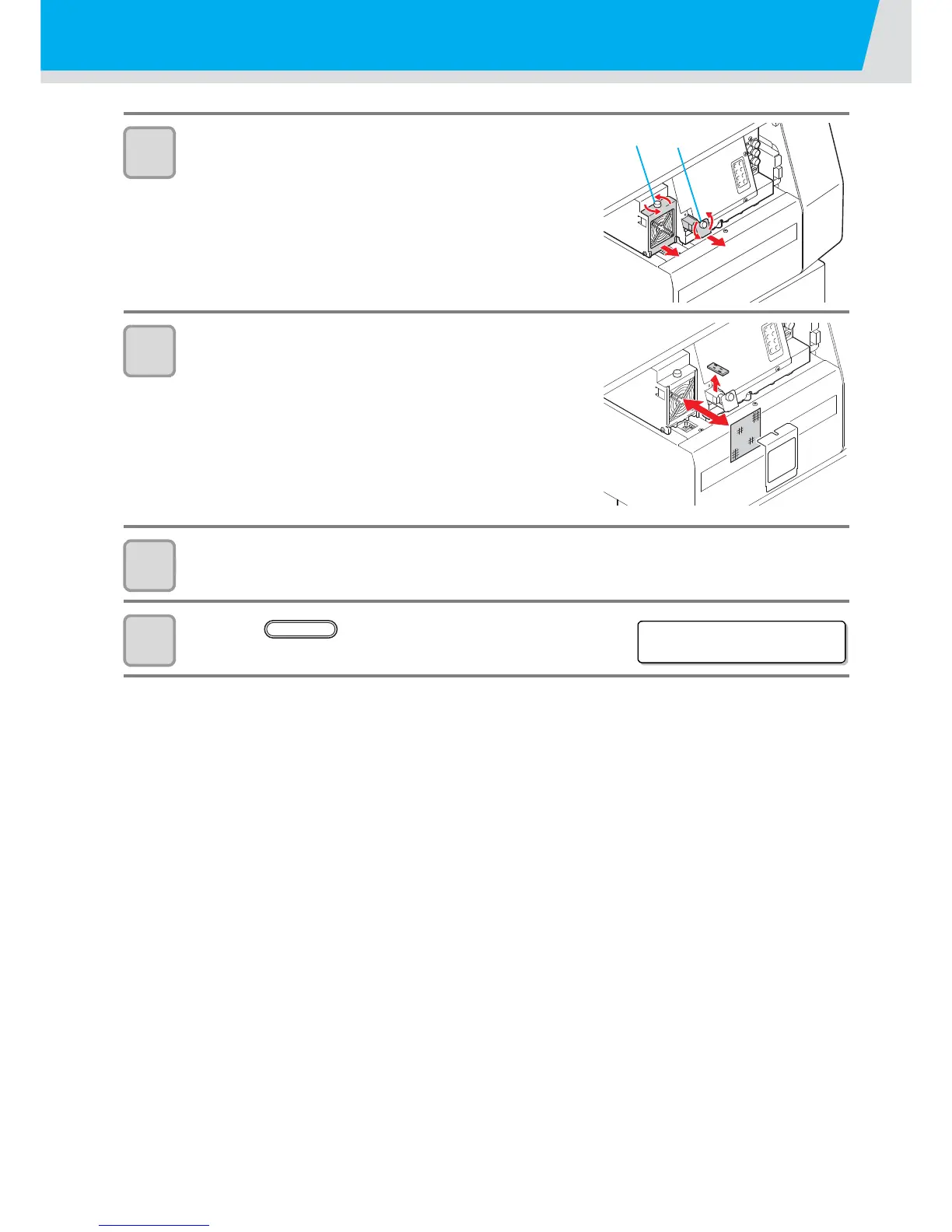

Replacing the Filter

4-20

Remove the filter retainer (2 places).

(1) Turn and pull the right white knob.

(2) Turn the left white knob and pull the frame of the filter.

Replace the filters (2 places).

• Replace two filters.

Attach the covers.

• Attach in reverse order of step 5, 6.

Press the key.

• Initializing starts.

(2) (1)

STAT I ON

COMP LE T ED : e n t

ENTER
