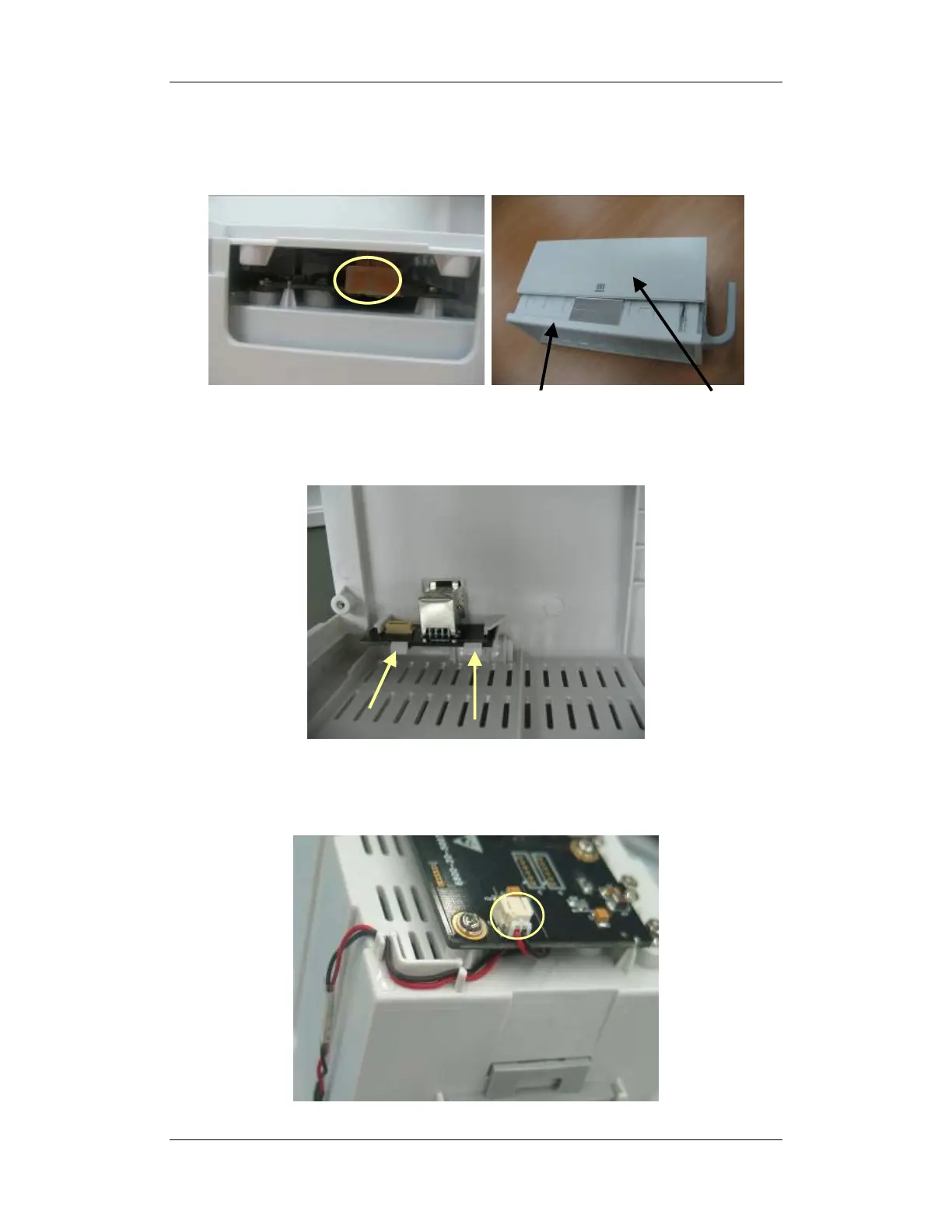

5.3.9 Removing the Alarm LED Board
After removing the LCD, disconnect the cable that connects the alarm LED board and the
button board, and then, unscrew the two PT2×6 screws to remove the alarm LED board.
5.3.10 Removing the Fan Assembly
Unplug the cable that connects the fan assembly and the mother board. Then, unscrew the
four M3×6 screws and remove the fan assembly.
Heat conducting glue
