6-10
6.4.2 Battery Compartment Assembly

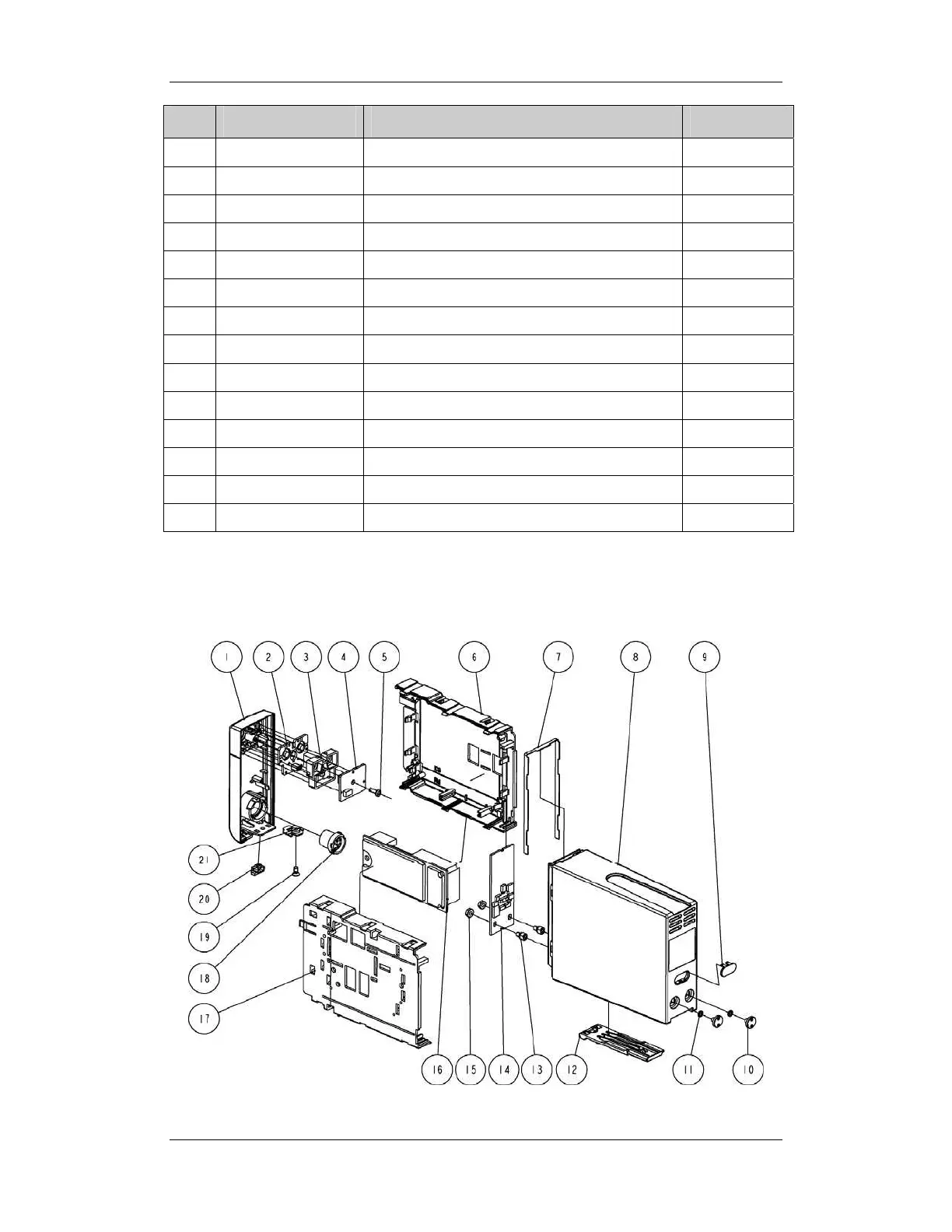

Exploded View
Parts List
SN P/N Description Qty
1 6802-20-66714 Battery compartment 1
2 6802-30-66653 Battery interface board 1
3 M04-004012--- Crosshead screw M3×6 5
4 M6T-030008--- Conducting block 9.5×3.2 2
5
6802-20-66715 or
043-004095-00
Battery latch 1
6 6802-20-66798 Battery latch fixture 1
7 M04-004013--- Crosshead screw M3×10 1
8 DA8K-20-27052 Spring 2
9 M04-002505--- Crosshead screw M3×6 2
