6-8
7 6800-20-50692 Backlight board heat-conductive insulator 1
8 042-000601-00 TPI inverter shield 1
9 M04-004012--- Crosshead screw with washer M3×6 6
10 M04-002505--- Crosshead screw GB/T818-2000 M3×6 2
11
6802-20-66731 or
6802-20-66650
12”SHARP screen cable or
AU screen cable
1
12 M04-004015--- Crosshead screw with washer M3×8 4
13 6802-20-66795
Screen cover
1
14 6802-20-66696 Touchscreen strip 1 1
15 6802-20-66697 Touchscreen strip 2 2
16 0000-10-10799 Touchscreen, 12.1” 1
17 6802-20-66801 Touchscreen water-proof strip 1
18 6802-20-66739 Touchscreen strip 4 2
19 6802-20-66738 Touchscreen strip 3 2
6.4 Main Unit
6.4.1 Main Unit Assembly

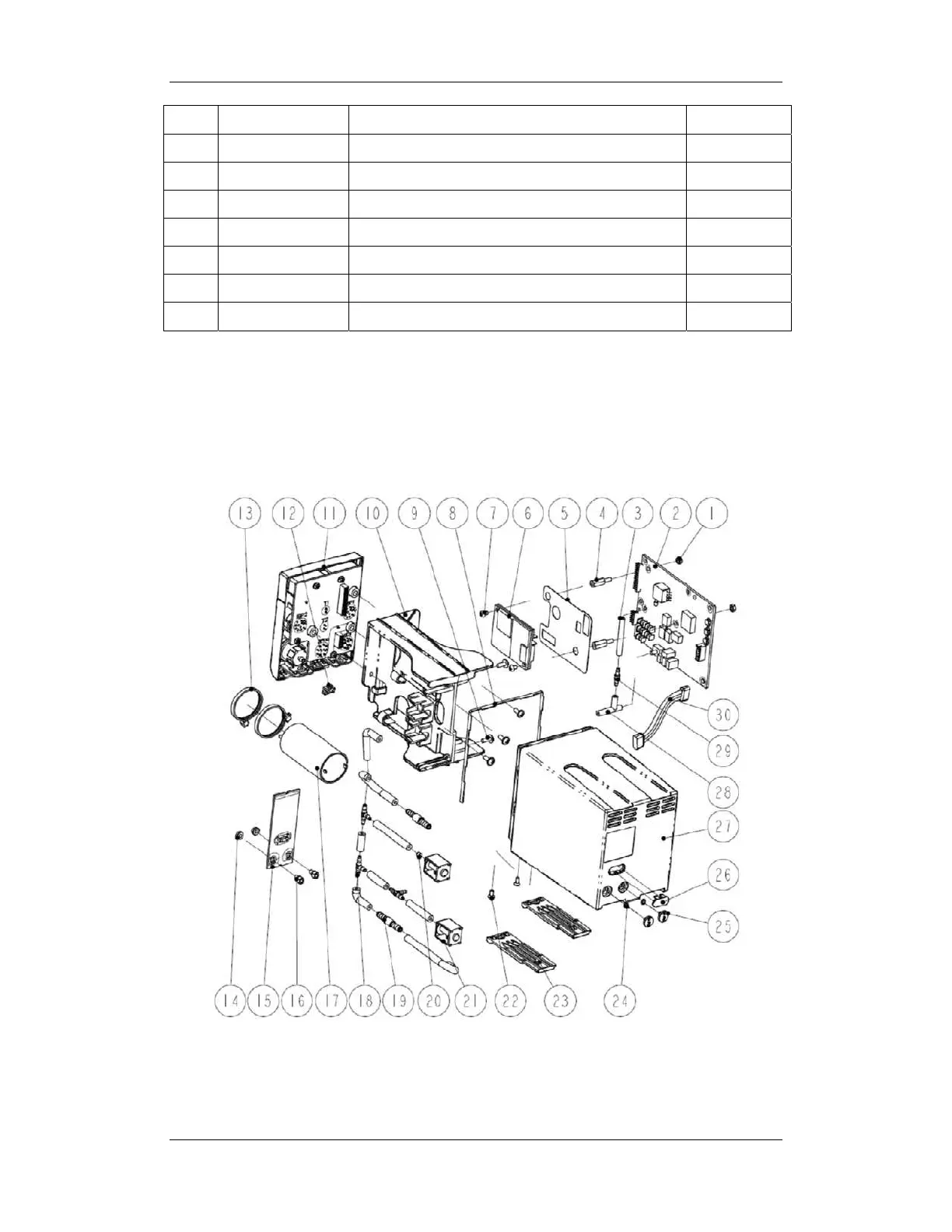

Exploded View
