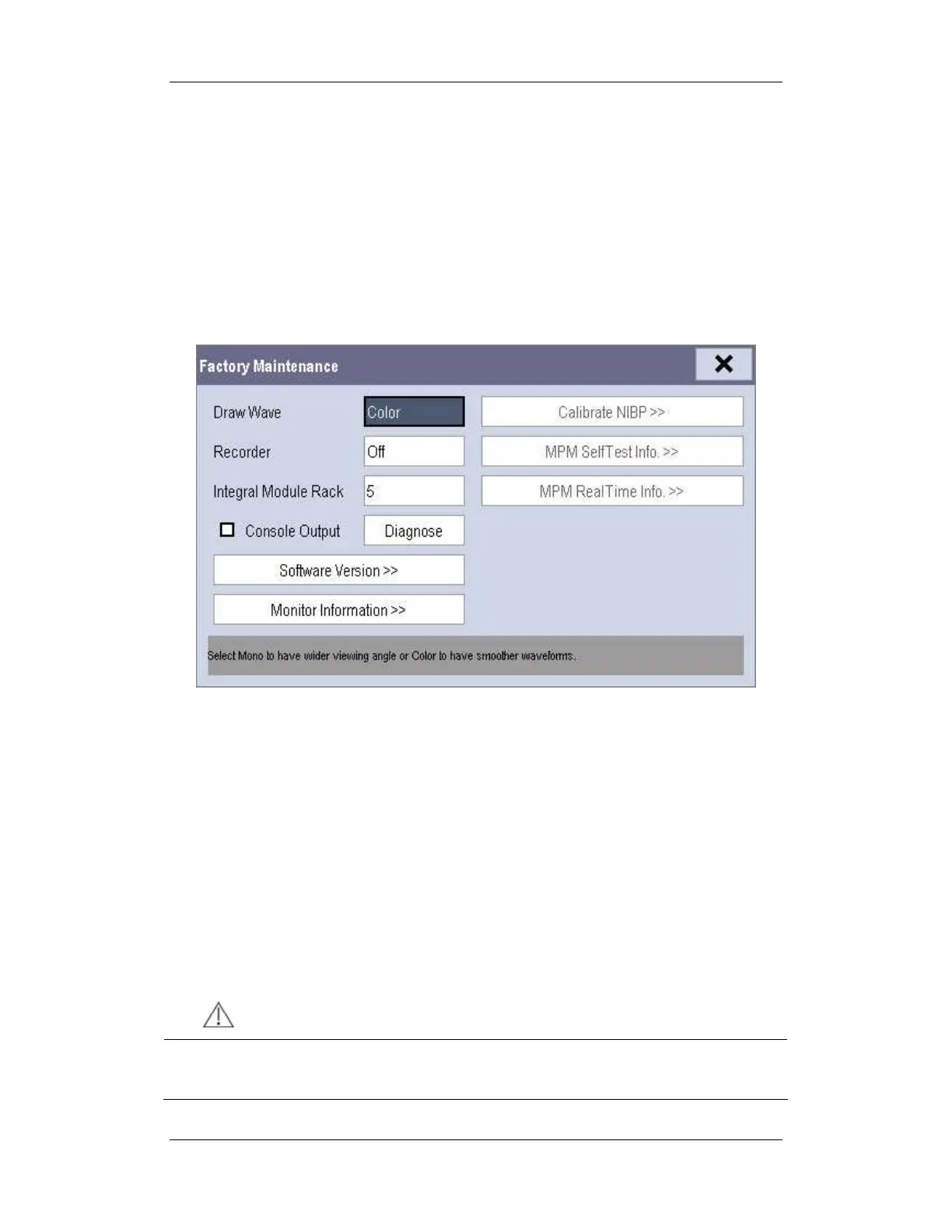

3-29
The message [Calibration Completed!] is displayed after a successful calibration. If the
calibration failed, the prompt [Calibration Failed!] will be displayed.
C.O. Test
Tools required:
Medsim300B Patient simulator, or equivalent equipment
C.O. adapter box (for 300B)
PiCCO test cable (PN: 040-001301-00)
Follow this procedure to perform the test:
1. Connect the patient simulator and the C.O. module using a C.O. trunk cable and a C.O.
adapter box.
2. Set the blood temperature (BT) to 37ºC on the patient simulator and check the
temperature value displayed on the monitor is 37 ± 0.1ºC.
3. In the [CCO Setup] menu, select [PiCCO Guide>>], and check if the value for
[Cat.Type] is [PV2015L20].
4. Turn the injectate temperature (TI) knob on the C.O. adapter box to set the TI to 20 ±
1ºC for the patient simulator and C.O. to 5L/min.
5. In the PiCCO screen, select [Start] to start C.O. measurement. As soon as the prompt
[Inject XXml] is displayed, adjust TI to 4 ± 1ºC, and then quickly back to 20 ± 1ºC.
Simutaneously press the button on the simulator that corresponds to 5L/min. The whole
procedure shall be finished in 10 s.
6. Verify that the C.O. value displayed on the monitor is correct.
