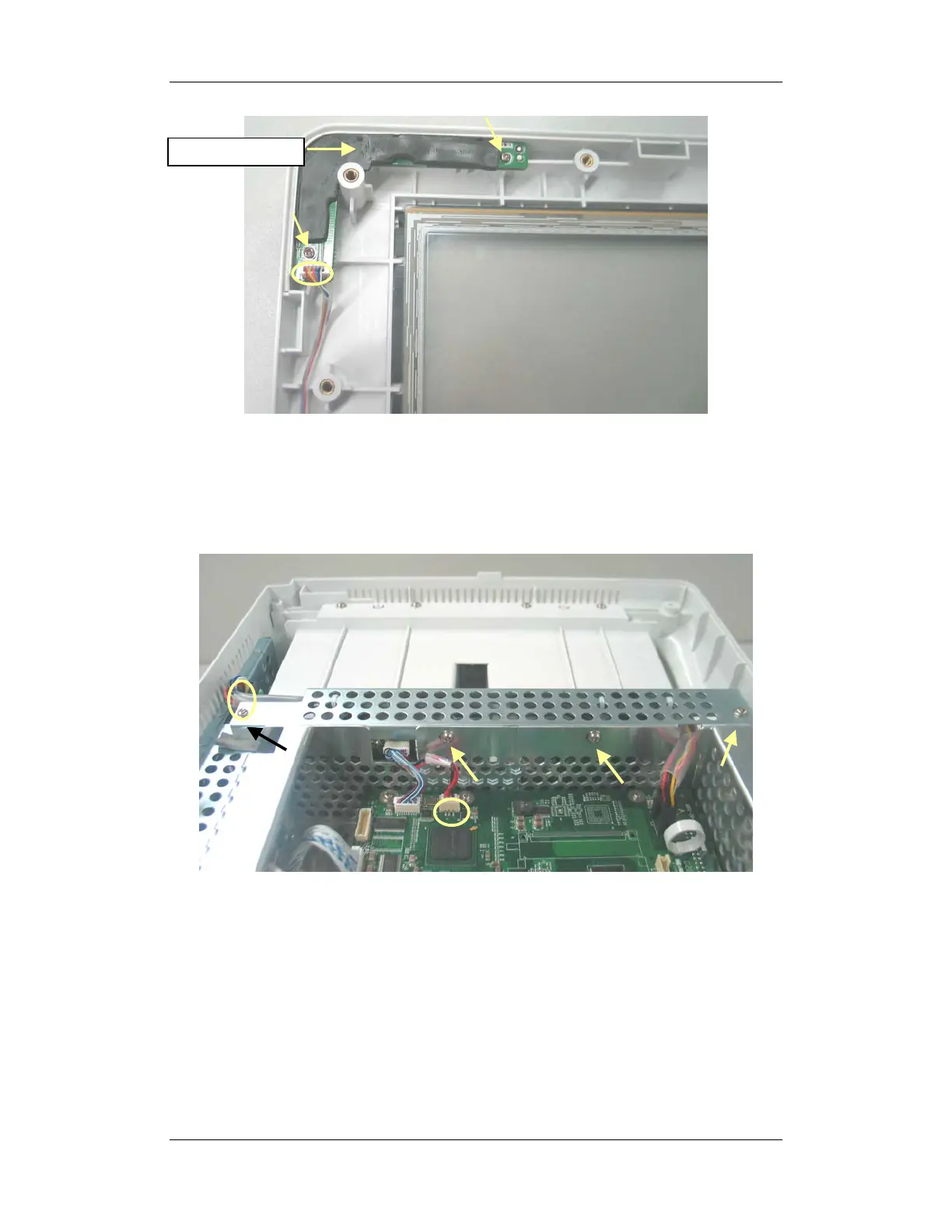

Mindray BeneView T5 - Removing the Fan Assembly; Removing Battery Compartment Assembly

4-9
4.6.9 Power Supply Failures
Symptoms Possible Cause Corrective Action
Battery failure Replace battery.
Cable defective or
poorly connected
1. Check that the cable between battery
interface board and power module is
correctly connected.
2. Check that cables and connectors are not
damaged.
Different battery
voltages
Power board failure Replace the power board.
Battery failure Replace battery.
Cable defective or
poorly connected
1. Check that the cable is correctly
connected.
2. Check that connecting cables and
connectors are not damaged.
Battery capacity is too
low
Power board failure Replace the power board.
Battery failure Replace battery and recharge the replacement
battery. If the replacement battery can be
recharged, the original one fails.
Cable defective or
poorly connected
1. Check that cable between battery interface
board and power module is correctly
connected.
2. Check that cables and connectors are not
damaged.
Battery cannot be
recharged
Power board failure Replace power board
No +3.3 V output
No +5.0 V output
No +12 V output
1. Power supply
protected
2. Power board failure
1. Turn off the patient monitor then restart it.
2. If the problem remains, disconnect the AC
mains for 5 s and reconnect it, then restart
the patient monitor.
3. If the problem still remains, replace the
power board.
