Mindray BeneView T5 Service Manual

6-9
6.3.4 12.1” Screen Assembly (with touchscreen)

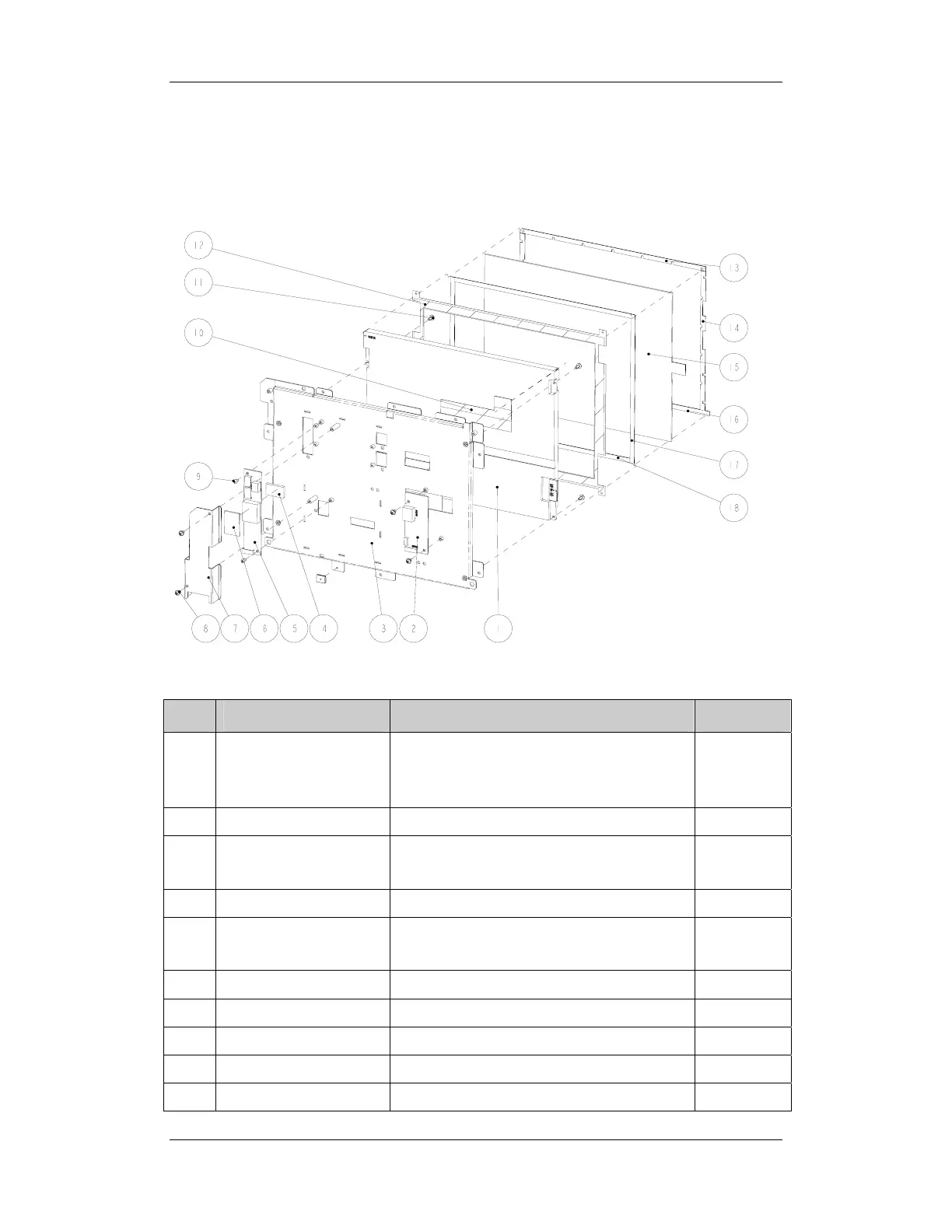

Exploded View
Parts List
SN P/N Description Qty
1
0000-10-10752 or
0010-10-42633
（optional）
LCD TFT 12.1” 1
2. 6800-30-50082 Touchscreen control board 1
3
042-000784-00 or
042-000783-00
12” SHARP screen mounting board, or
12” AU screen mounting board
1
4 042-000185-00 TPI inverter washer 1
5
022-000014-00 or
022-000001-00
TPI inverter 1
6 6800-20-50692 Backlight board heat-conductive insulator 1
7 042-000601-00 TPI inverter shield 1
8 M04-004012--- Crosshead screw with washer M3×6 6
9 M04-002505--- Crosshead screw GB/T818-2000 M3×6 2
10 6802-20-66731 or 12”SHARP screen cable or 1
