6-15

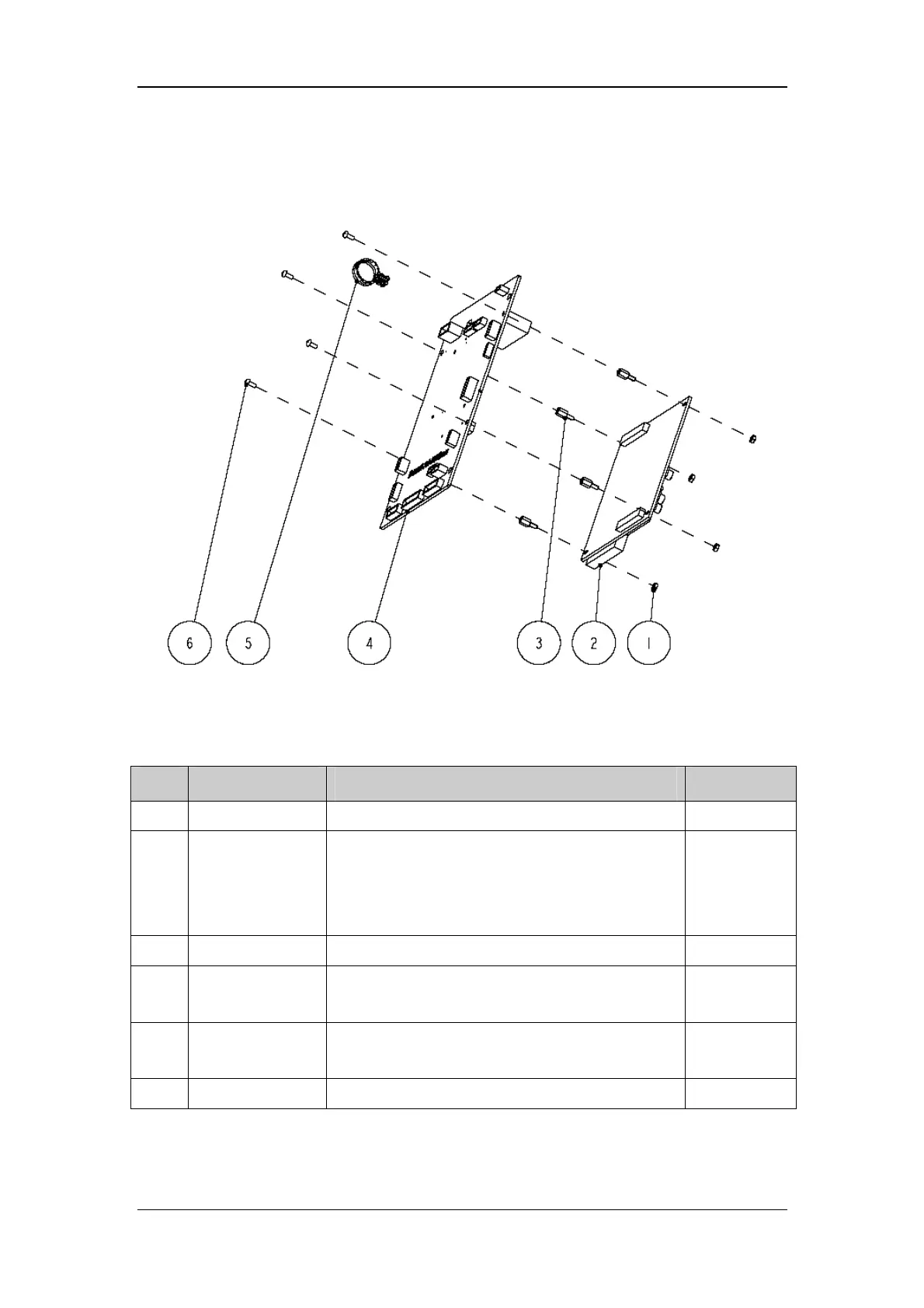

6.4.5 Main Board Assembly
Exploded View
Parts List
SN P/N Description Qty
1 M04-011001--- Nut, GB6170 M2.5 4
2
6800-30-50058 or
*6812-30-66989
MCF547x CPU module (basic
configuration/non-lead process)
MCF547x CPU module (+standard identifying
code)
1
3 M04-060021--- Screw M2.5x7+6-6 4
4
051-000223-00 or
051-000223-01
6802 mother board (full configuration)
6802 mother board (standard configuration)
1
5
6802-20-66724 or
043-004100-00
PCB handle
1
6 M04-051045--- Crosshead screw M2.5×6 4
To Next Page
