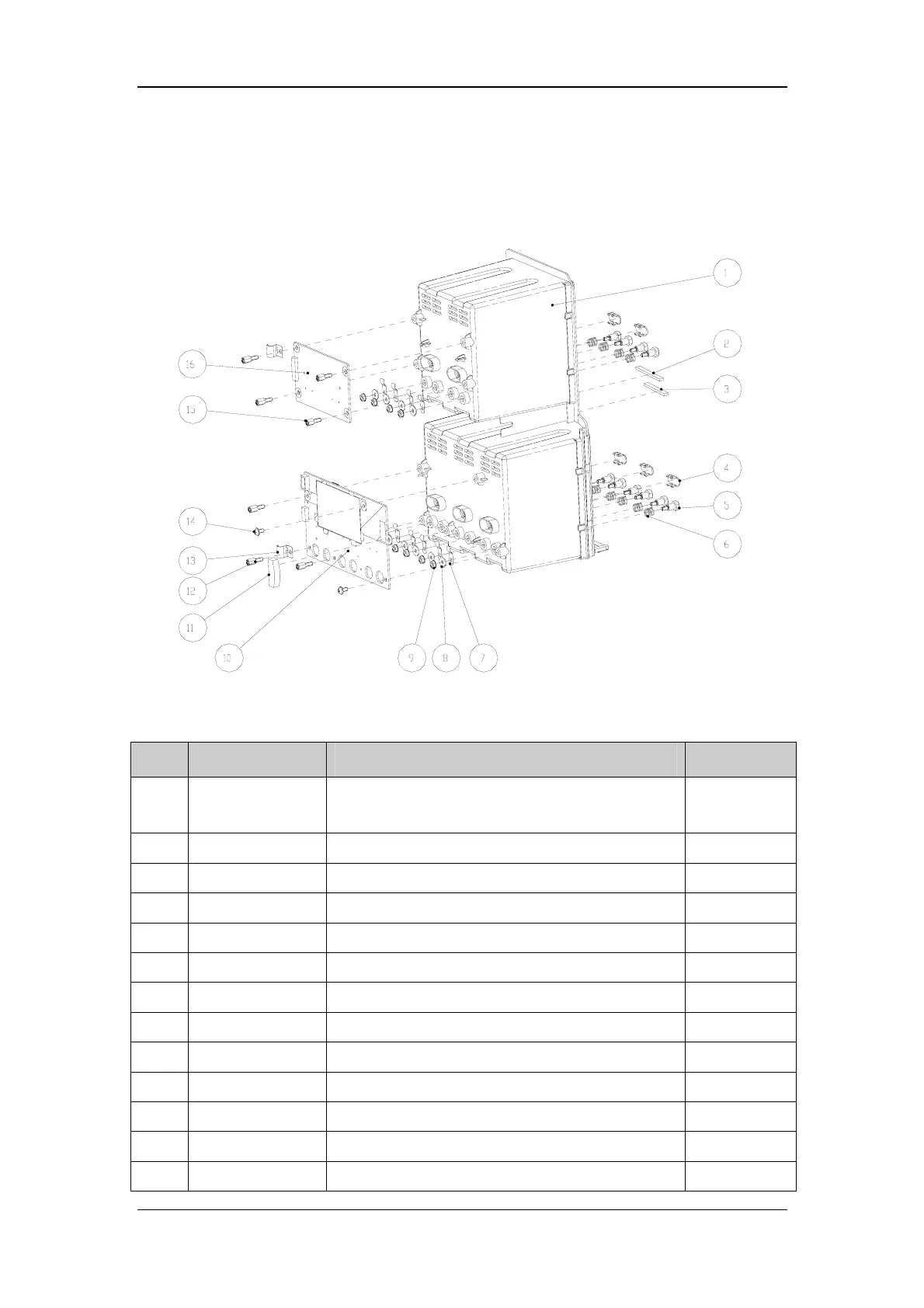

Mindray BeneView T5 Service Manual

6-36
6 6800-20-50394 latch 1
7 6800-21-50310 Bisx connecter cable 1
8 6800-20-50164 Module fan and cable 1
9 6800-20-50540 Module fan cushion 4
10 6800-20-50289 Fan pressing plate 1
11 M04-051003--- Crosshead tapping screw PT2×6 6
12 9200-21-10605 AG module box 1
13 6800-20-50290 Aluminium support rack 1
14 9200-10-10529 AG module 1
15 3001-10-06985
Volume measuring fixing washer (mold
WSR-3149)
3
16 M04-011002--- M3 nut with spring washer 4
17 6800-30-50097 Module infrared communication backboard 2
18 6800-20-50292 Fixer 4
19 6800-20-50278 spanner 2
20 6800-20-50293 screw 4
21 M04-000104--- Spring washer 4
22 6800-20-50279 Infrared light filter 2
23 6800-20-50277 AG module rear housing 1
24 6800-20-50340 Waterproof seal 03 1
25 M04-006512--- Crosshead screw M4×6 2
26 6800-20-50291 O
2
module mount 1
27 M04-004012--- Crosshead screw M3×6 8
28 9200-10-10531 O
2
module 1
29 6800-20-50281 Infrared communication backboard support rack 1
30 6800-30-50092 Isolating power board 1
31 M04-000405--- Crosshead screw M3×8 8
32 6800-20-50699 AG module insulating pad 4
33 M04-003105--- Tapping screw PT3×8 1
34 6800-30-50118 AG/CO
2
button board 1
35 6800-20-50283 Double module button pressing plate 1
36 6800-20-50285 Double module silicone button 1
37 9200-10-10591 AG watertrap rack 1
38 9200-10-10560 AG watertrap connector (with screw/60-13510-00) 1
