6.4.6 Integral module rack

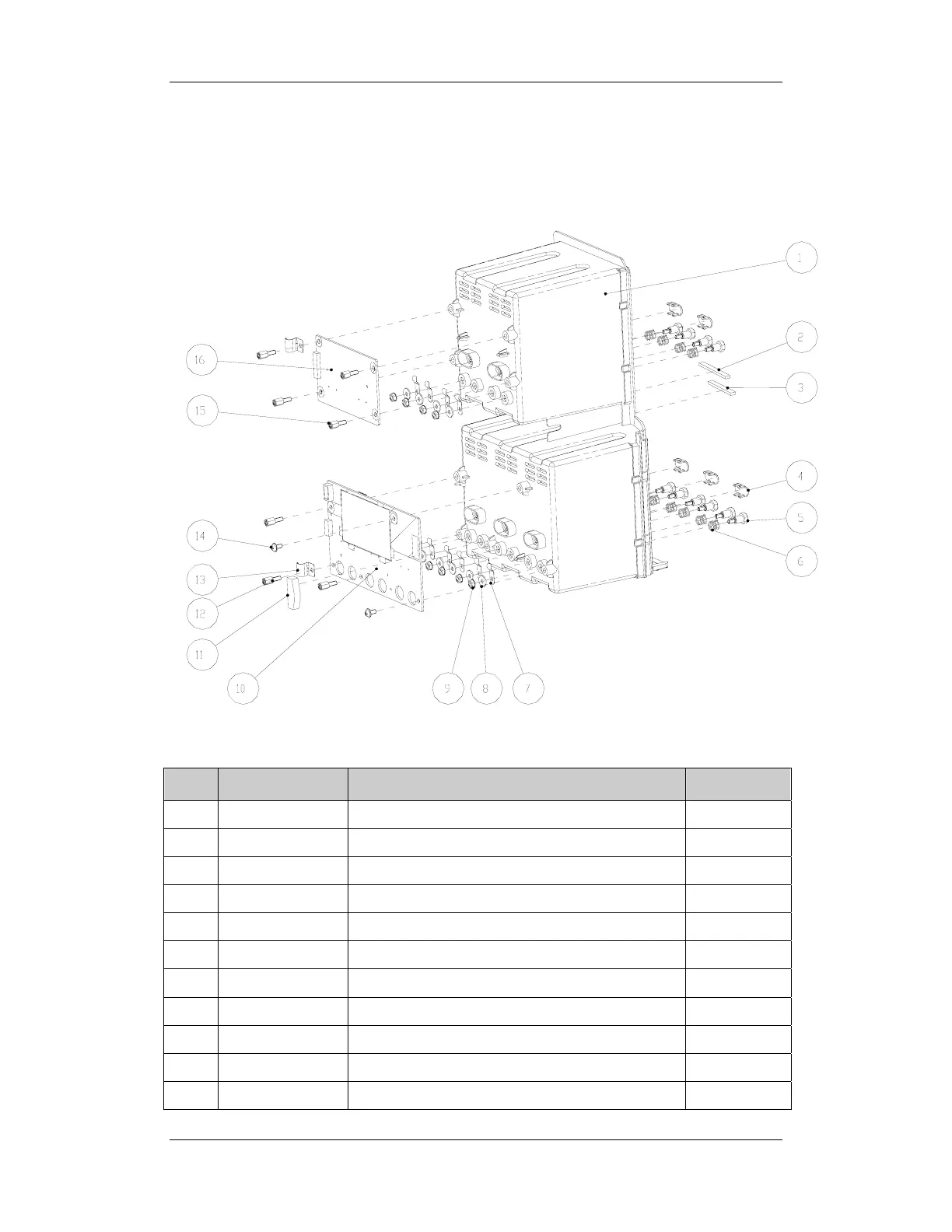

Exploded View
Parts List
SN P/N Description Qty
1 6802-20-66709 Integral module rack 1
2 6802-20-66817 Waterproof strip 2 for integral module rack 1
3 6802-20-66816 Waterproof strip 1 for integral module rack 1
4 6800-20-50279 Infrared light filter 5
5 6800-21-51100 Contact screw 10
6 6800-20-50261 Contact spring 10
7 6800-20-50388 Leaf 10
8 M04-021024--- Flat washer, GB96 3 10
9 M04-011002--- M3 nut with spring washer 10
10 051-000244-00 6802 3-slot communication board 1
11 9200-20-10512 Cushion 1
