6-11

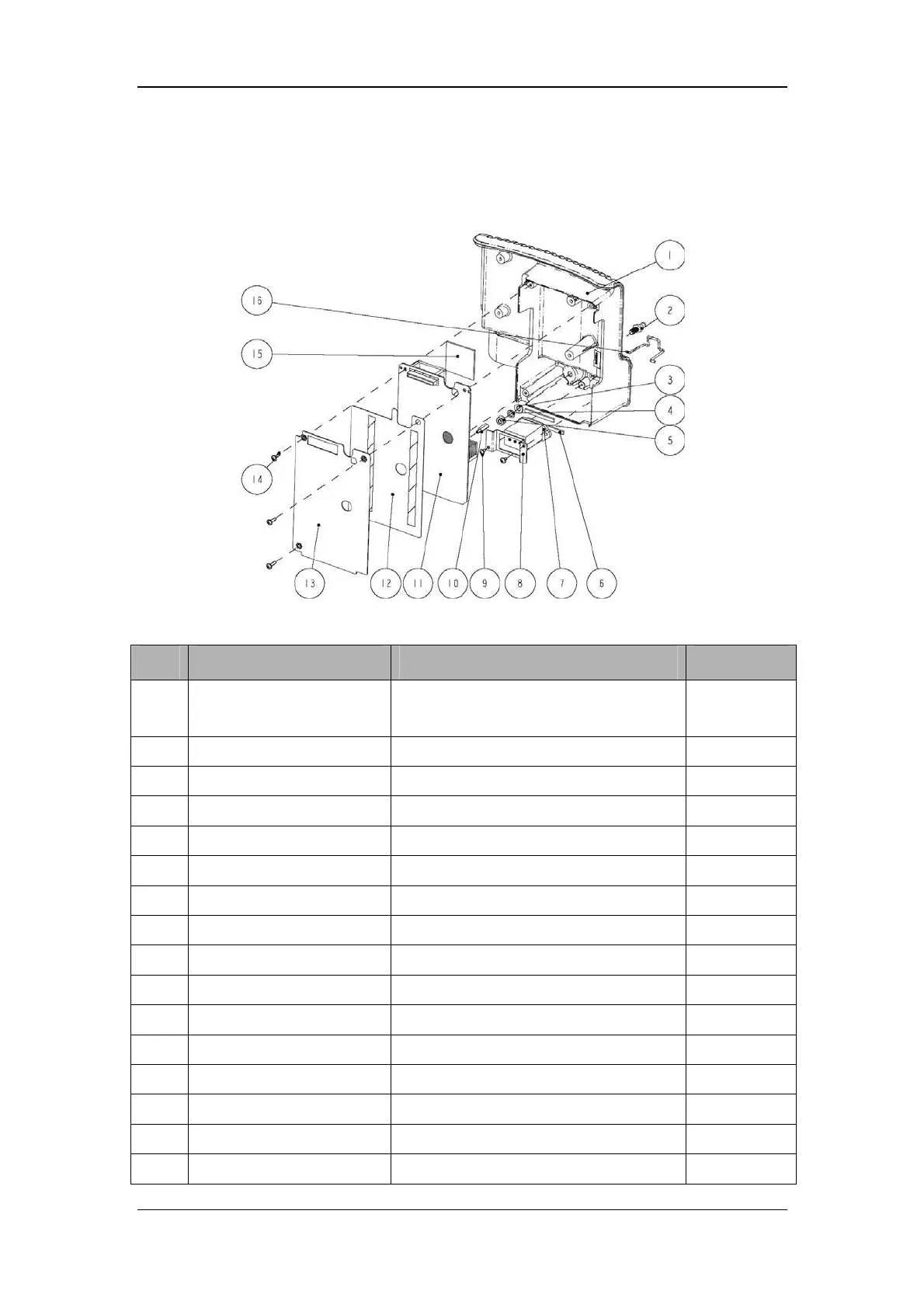

6.4.3 Power Module assembly
Exploded View
Parts List
SN P/N Description Qty
1
6802-20-66719-51 or
044-000446-00
Power supply compartment(mould
MR66719)
1
2 0509-20-00098 Grounding pole 1
3 M04-021003--- Flat washer, GB97.1 6 1
4 M04-004504--- Spring washer, GB93 6 1
5 M04-004401--- Stainless steel nut, GB6170 M6 1
6 6800-20-50636 Waterproof strip for power socket 2
7 009-000255-00 AC input socket and cable 1
8 6800-20-50218 power socket fixture 1
9 M04-004012--- Crosshead screw M3×6 2
10 M90-000136--- Plastic double-ended bolt M3×15+6-8 1
11 6802-30-66651 Power board 1
12 6802-20-66721 Insulating plate 1
13 6802-20-66720 Power supply cover 1
14 M04-004017--- Crosshead screw M3×12 3
15 6802-20-66796 Power board heat conductor 1
16 9211-20-87369 Pothook for power supply plugs 1
