5-15

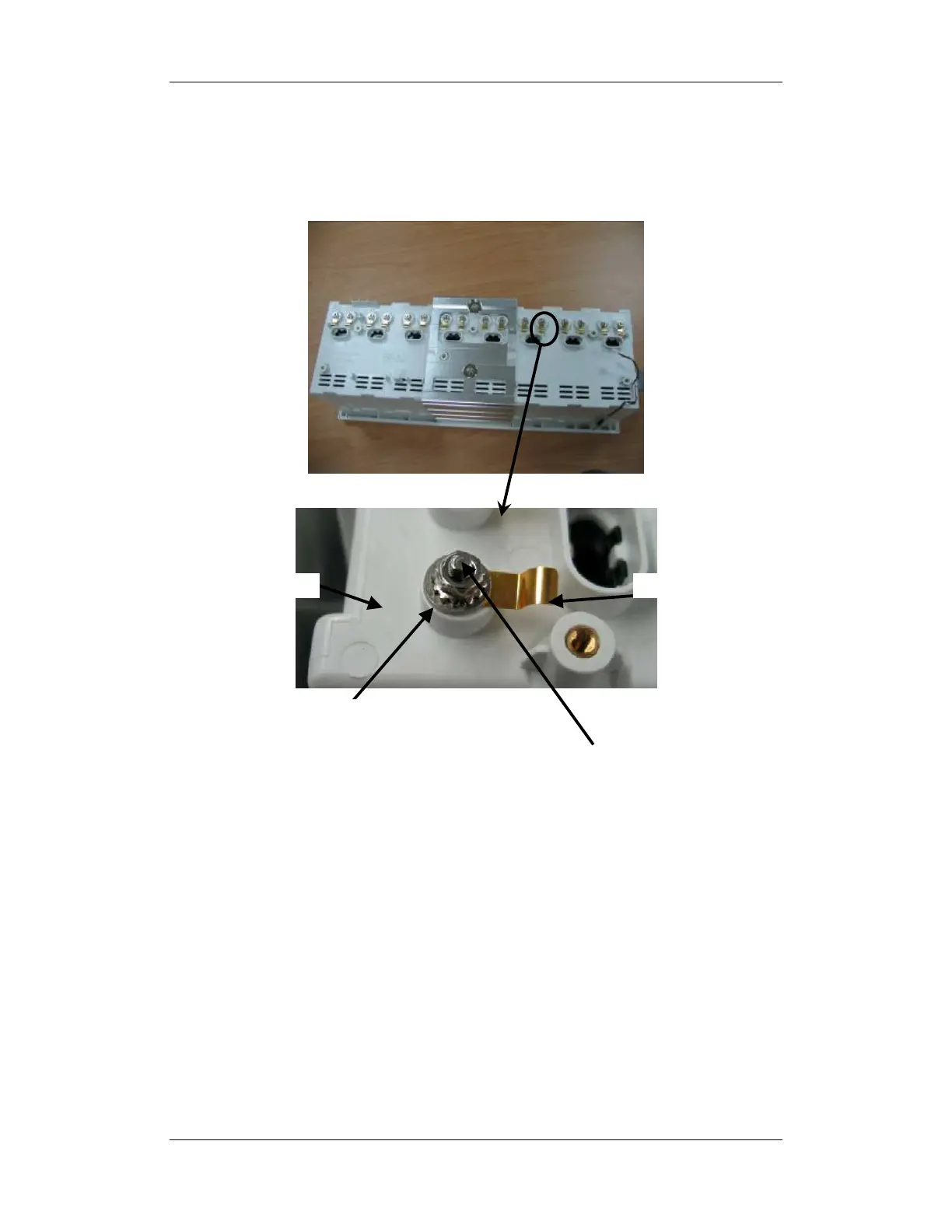

5.3.12 Removing the Integral Module Rack
1. Disconnect the cable that connects the integral module rack and the mother board.
Unscrew the five M3×8 screws and remove the integral module rack.
2. Disconnect the cable that connects the MPM module rack communication board and the
3-slot module rack communication board. Release the two snaps and unplug the NiosII
module on the 3-slot module rack.
3. Unscrew the eight M3×6 screws and then remove the 3-slot module rack
communication board and MPM module rack communication board.
NiosII module
To Next Page
