5-25

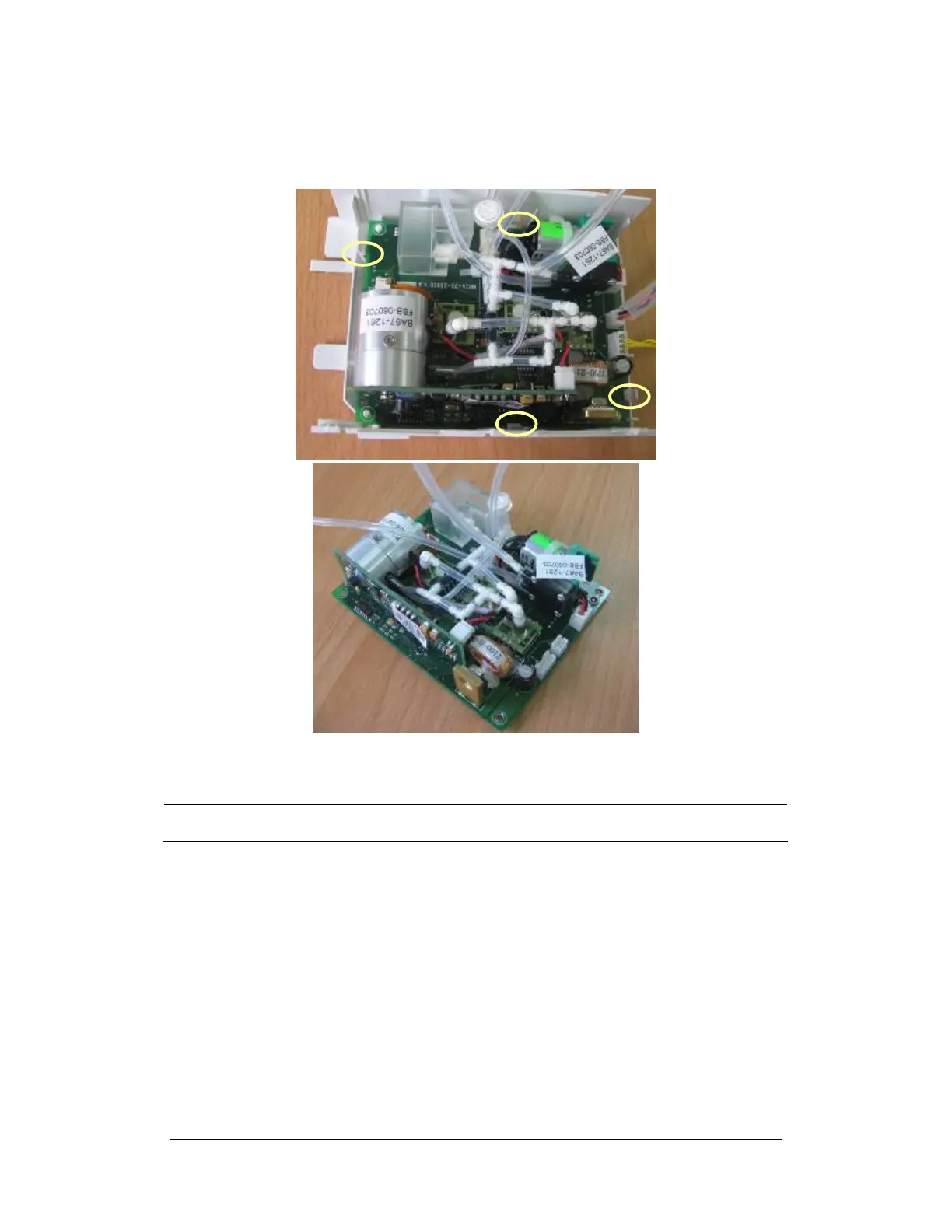

3. Lift the power board with a small flat screwdriver. Then, turn it over.
4. Unplug the cable between the AC input filter and the power board, then remove the
power board.
NOTE
z Since the power board may be adhered to the insulator, be careful not to damage
the parts, connectors and cables on the power board when prizing it.
Equipotential Pillar
To Next Page
