6-2 Passport 12/Passport 8 Operator’s Manual
6.2 Viewing Minitrends
6.2.1 Having a Split-Screen View of Minitrends

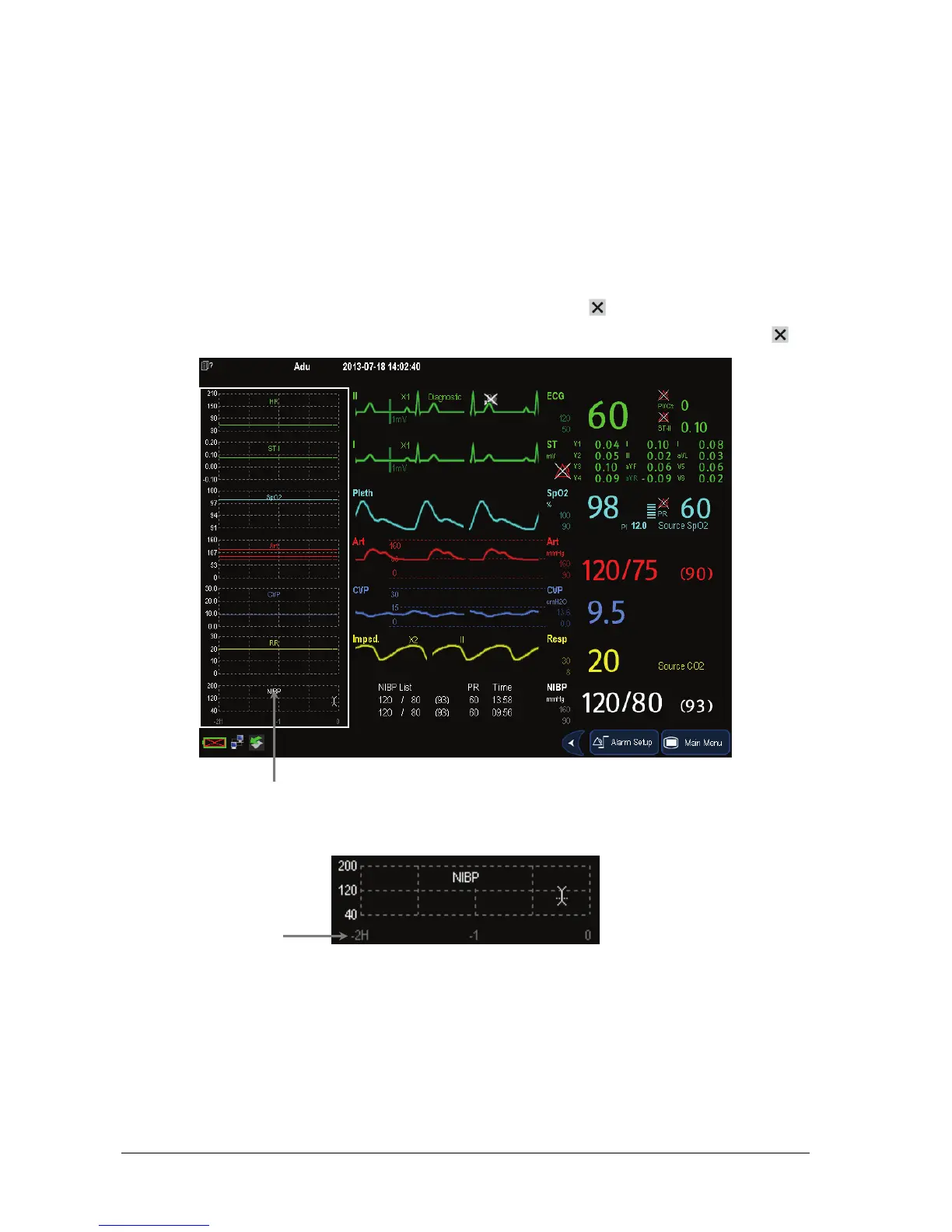

You can split the normal screen so that the left hand side continuously shows graphic minitrends beside waveforms as
shown in the figure below.
To have a split-screen view of minitrends:
 Select the [Minitrends] QuickKey, or
 Select the [Screens
→
] QuickKey [Choose Screen]→ [Minitrends Screen]
→
, or
 Select [Main Menu
→
][Screen Setup >>
→
][Screen Layout >>
→
][Choose Screen]→ [Minitrends Screen]
→
.
The split-screen view provides minitrends for multiple parameters. In each field, the label and scale are respectively
displayed at the top and left. The time is displayed at the bottom of the minitrends view as shown below.
6.2.2 Setting Minitrends
Select the minitrends area. From the pop-up [Minitrend Setup] menu:
 Select the parameters to be displayed, or
 Select [Minitrend Length] and then select the appropriate setting.
Minitrends View
Time
