Recall
9-9
4. The alarm event number (format: NO: n of N). N indicates the amount of alarm
events and n indicates the sequence number of the currently displayed alarm
event.
5. Parameter values at the time of the alarm event.
6. Two waveforms at the time of the alarm event. You can set the waveform
length by selecting from the ALM REC TIME options in the ALARM SETUP
menu. Please refer to 4.4.2 Alarm Setup.

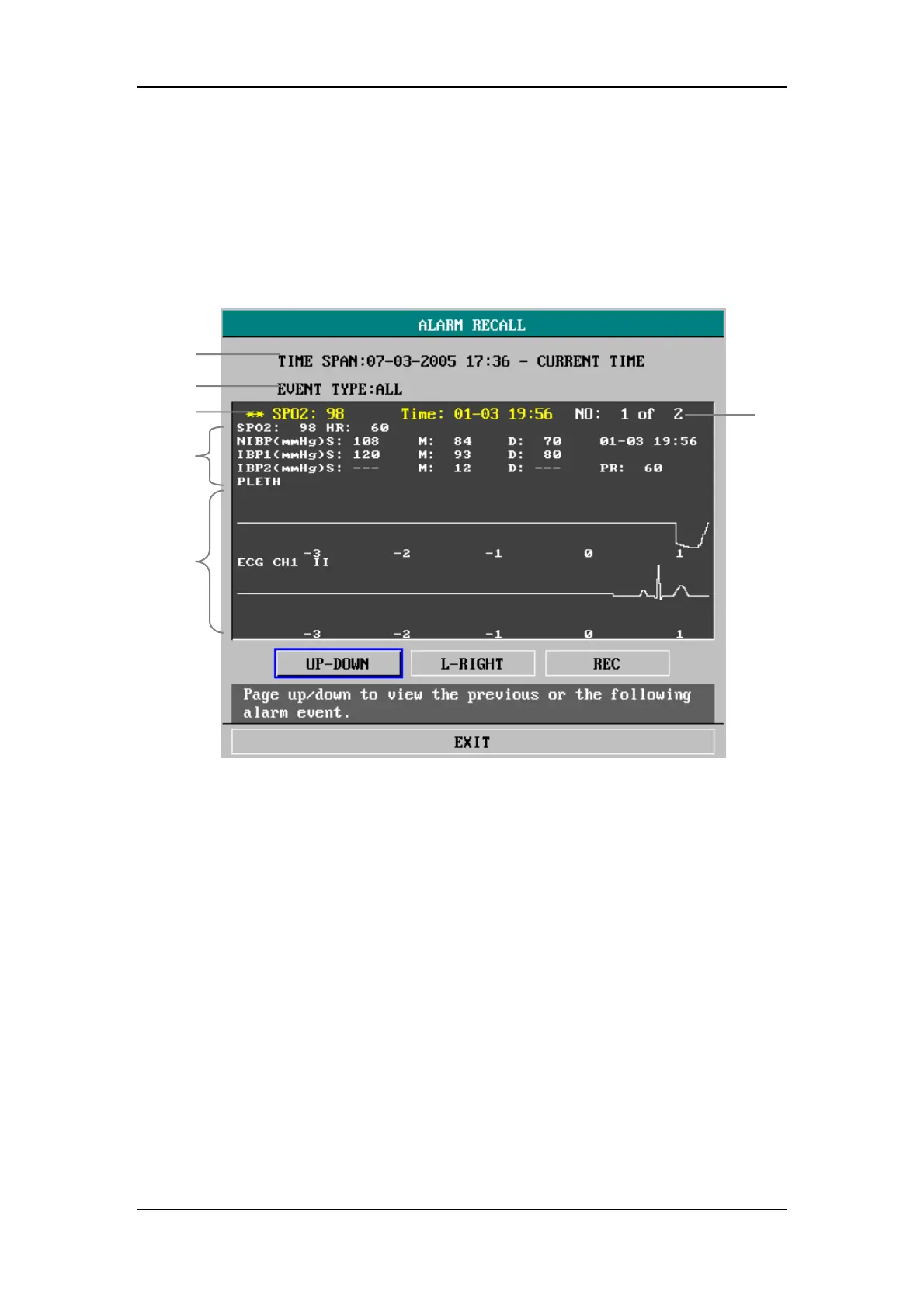

Figure 9-5 Alarm Event Recall
îš„ UP-DOWN
The monitor is able to store a maximum of 70 alarm events. But only one alarm
event can be displayed in the ALARM RECALL window once. You can select the
UP-DOWN option and then rotate the control knob to view an earlier or later alarm
event.
îš„ L-RIGHT
You may select the L-RIGHT option and then rotate the control knob to review the
8,16,or 32-second waveforms stored.
îš„ REC
This option allows you to print out all parameter data and waveforms displayed in
the current window using the recorder.
4
1
2
3
5
6
