5.3 OxyCRG Screen
To enter the following screen, select oxyCRG SCREEN in FACE SELECT menu
and then select EXIT.

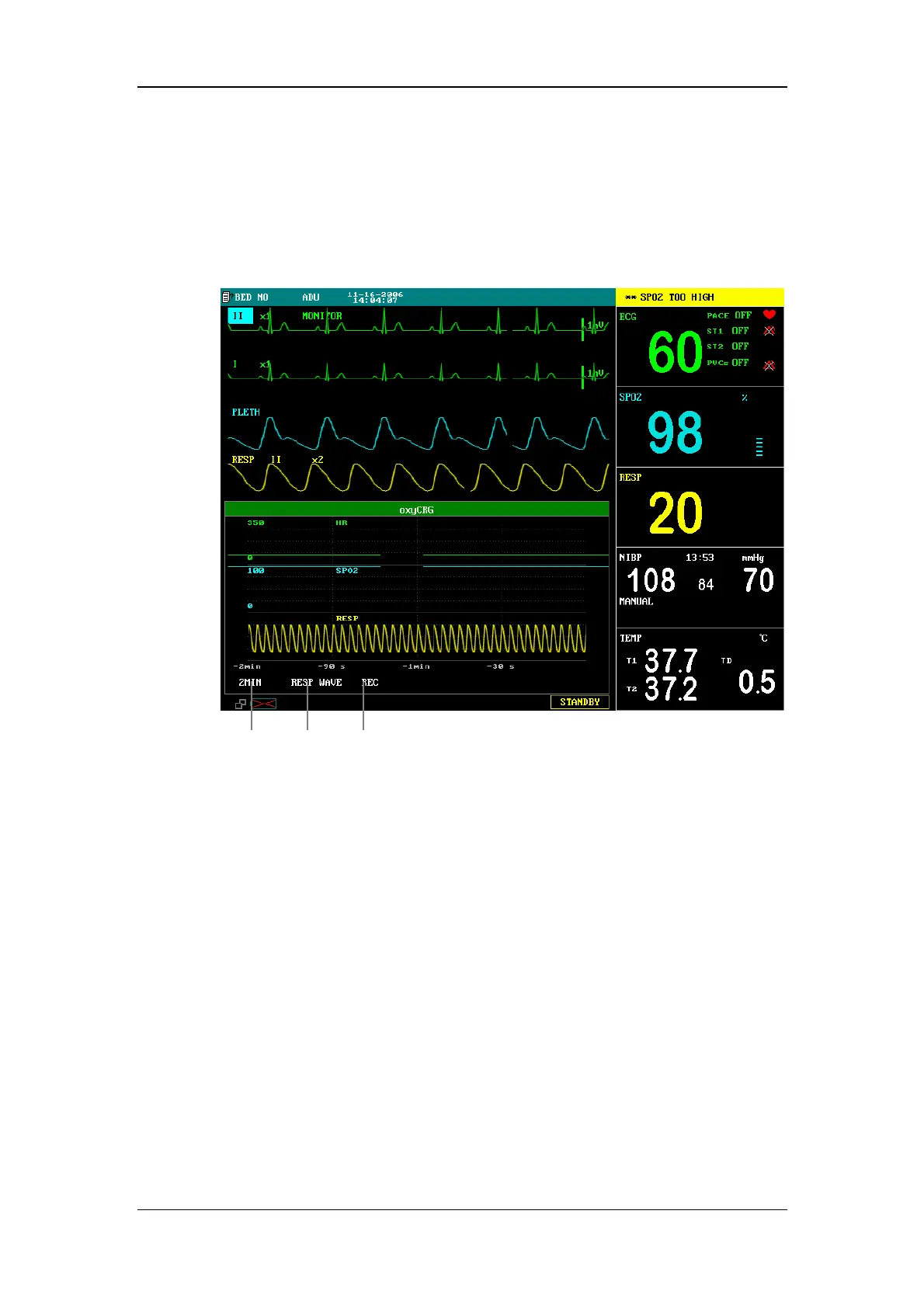

Figure 5-4 OxyCRG Screen
Oxy CRG screen is located at the lower part of the waveform area, consisting of the
HR trend, the SpO
2
trend, and the RR (respiration rate) trend or the compressed
respiration waveform. Below the RR trend or the compressed respiration waveform
is the scale of the trend time. In addition, three labels are displayed beneath the time
scale (see 1, 2 and 3 in the figure above). The labels are detailed as below.
1. Trend length
This label allows you to select the time duration of the trend graphs displayed. You
can select either 1 MIN, 2 MIN or 4 MIN.
2. Compressed respiration waveform/RR trend
With this lable, you can select to display the compressed respiration waveform or
the RR trend beneath the SpO
2
trend.
3. Recording
You can select the REC label to print out the the trends or the waveform displayed in
the oxyCRG screen using the recorder.
